【42SHD0287】NEMA 17 TWO-PHASE 1.8° 42 STEPPER MOTOR 40MM BODY 1.5A CNC

name

【42SHD0287】NEMA 17 TWO-PHASE 1.8° 42 STEPPER MOTOR 40MM BODY 1.5A CNC

Brand Name: Casun
Model Number: 42SHD0287-24B
MOQ: 1PC
Price: $3.14-$5
Payment Terms: D/A, T/T, L/C, D/P
Supply Ability: 40000+PCS+Month
Detail Information
Product Description
Detail Information
Place of Origin:
CHINA
Certification:
CE,ROSH,ISO
Step Angel:
1.8°
Holding Torque:
450mN.m
Current:
1.5A
Motor Length:
40mm
Shaft:
Milling Flat Shaft 24mm Length
Customized:
The Motor Can Be Designed &manufactured With Customized Request.
Packaging Details:
Carton:36x29x14cm
Highlight:

40MM NEMA 17 Stepper Motor

,

40MM NEMA 17 STEPPER MOTOR

,

1.8° NEMA 17 STEPPER MOTOR

Product Description
【42SHD0287】NEMA 17 TWO-PHASE 1.8° 42 STEPPER MOTOR 40MM BODY 1.5A CNC
Product Overview

The 42mm stepper motor features a simple structural design, making it easy for users to operate and maintain. When used with a microstepping driver, it reduces vibration and achieves higher step resolution.

Key Features
  • Bipolar or unipolar versions available
  • Tailored service options
  • Available in single or double shaft versions
  • 12 years of operation in China with over 800 customers served
  • Customizations available upon request

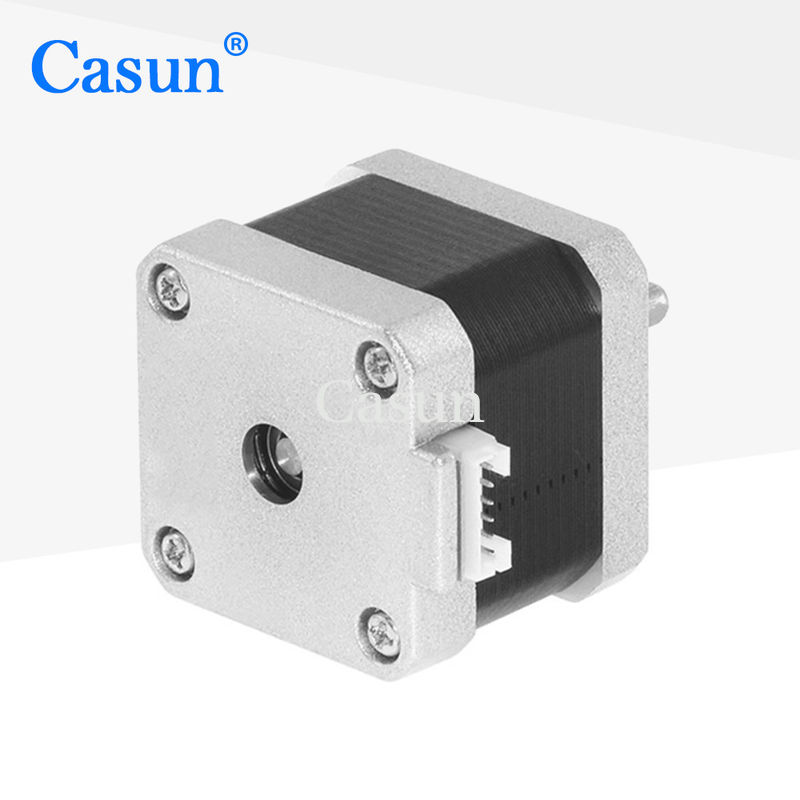

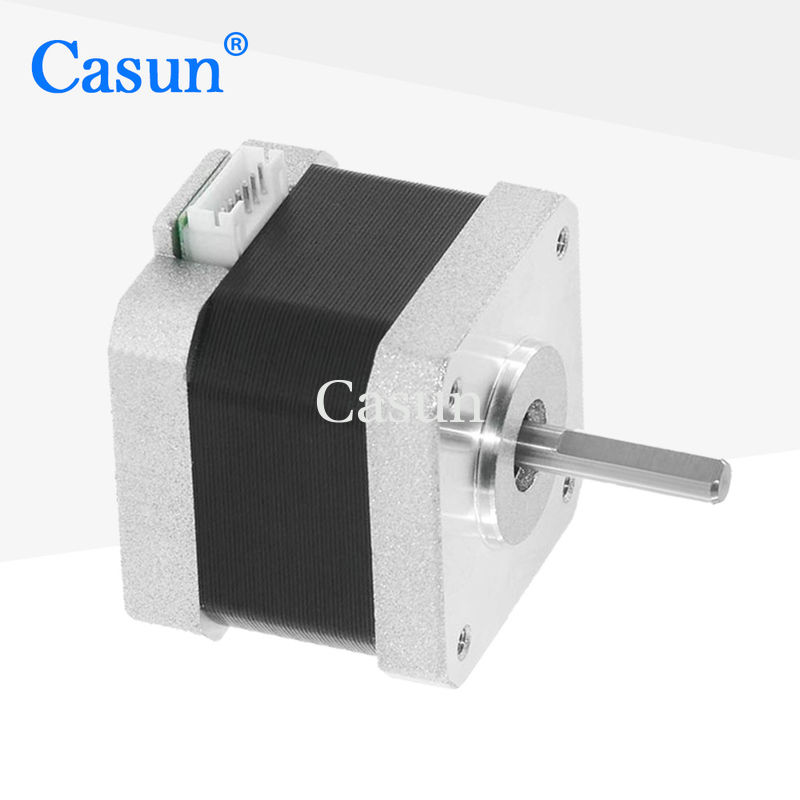

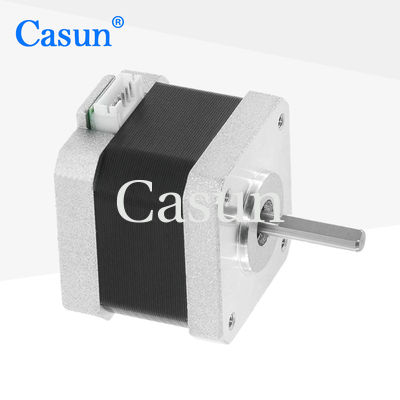

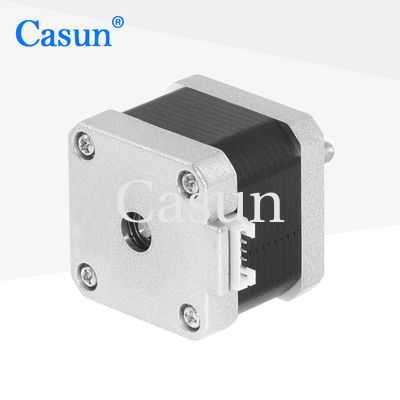

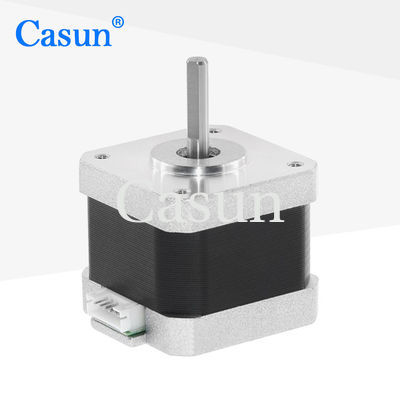

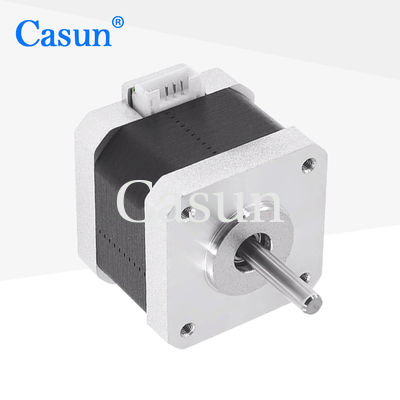

Appearance
【42SHD0287】NEMA 17 TWO-PHASE 1.8° 42 STEPPER MOTOR 40MM BODY 1.5A CNC 0
Dimensions
【42SHD0287】NEMA 17 TWO-PHASE 1.8° 42 STEPPER MOTOR 40MM BODY 1.5A CNC 1
Motor Specifications
Step Angle 1.8°
Frame Size 42 mm
Number of Phase 2 Phase
Rated Current 1.5 A
Holding Torque 450 mN.m
Resistance 2.3 ohm
Inductance 4.4 mH
Rotor Inertia 57 g-cm²
Motor Weight 0.24 kg
Number of Leads 4
Connection Bipolar
Operating Specifications
Step Angle 1.8°
Maximum Temperature 80°C maximum
Ambient Temperature -20°C to 50°C
Storage Temperature -20°C to 100°C
Humidity Range 85% or less, non-condensing
Magnet Wire Insulation Class B 130°C
Insulation Resistance 100M Ohm at 500 VDC
Dielectric Strength 500 VDC for 1 min
Related Models
Model Holding Torque Step Angle Motor Length Type of Shaft Rated Current
42SHD4950 0.13N.m 1.8° 20mm D Shaft-20mm 1.0A
42SHD4003 0.26N.m 1.8° 34mm D Shaft-20mm 0.4A
42SHD0261 0.45N.m 1.8° 40mm D Shaft-20mm 1.68A
42SHD4425 0.59N.m 1.8° 48mm D Shaft-24mm 2.0A
42SHD4813 0.8N.m 1.8° 60mm D Shaft-24mm 2.1A
Customization Options

If our standard motor cannot meet your needs, we can customize the motor according to your requirements. Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Encoder
【42SHD0287】NEMA 17 TWO-PHASE 1.8° 42 STEPPER MOTOR 40MM BODY 1.5A CNC 2
Brake
【42SHD0287】NEMA 17 TWO-PHASE 1.8° 42 STEPPER MOTOR 40MM BODY 1.5A CNC 3
Gearbox
【42SHD0287】NEMA 17 TWO-PHASE 1.8° 42 STEPPER MOTOR 40MM BODY 1.5A CNC 4
Shaft
【42SHD0287】NEMA 17 TWO-PHASE 1.8° 42 STEPPER MOTOR 40MM BODY 1.5A CNC 5

Please click the button below to tell us your requirements and get a customized quote.
