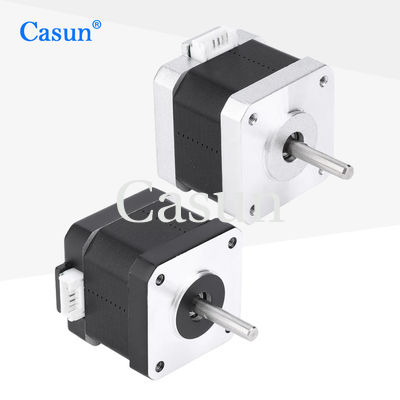

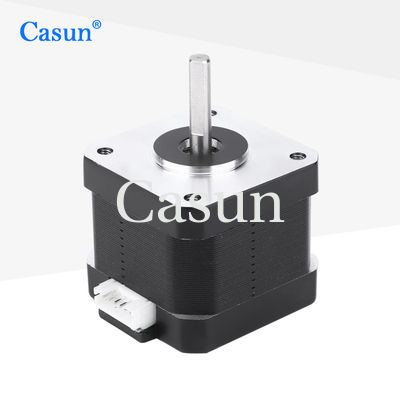

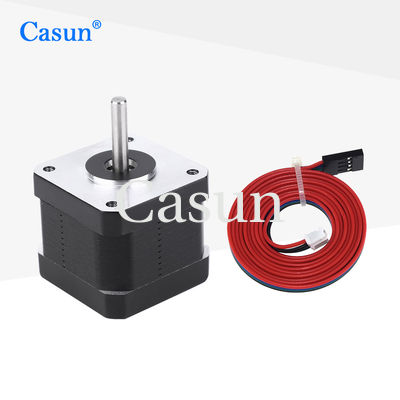

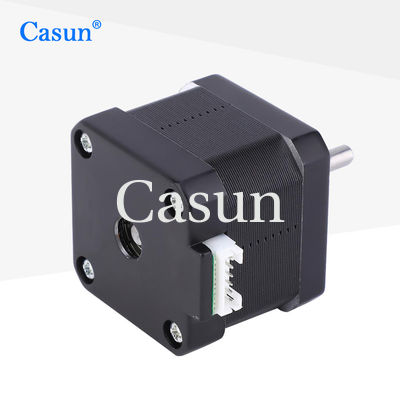

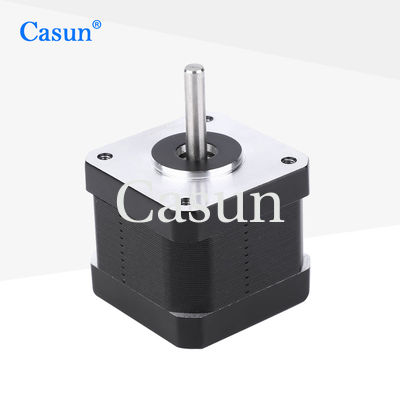

NEMA 17 stepper motor controller for 3D printer power supplies electrical with certification

name

NEMA 17 stepper motor controller for 3D printer power supplies electrical with certification

Brand Name: Casun
Model Number: 42SHD0287-24BH
MOQ: 1PC
Price: $3.14-$5
Payment Terms: D/A, T/T, L/C, D/P
Supply Ability: 40000+PCS+Month
Detail Information
Product Description
Detail Information
Place of Origin:
CHINA
Certification:
CE,ROSH,ISO
Step Angel:
1.8°
Holding Torque:
450mN.m
Current:
1.5A
Motor Length:
40mm
Shaft:
Milling Flat Shaft 24mm Length
Customized:
The Motor Can Be Designed &manufactured With Customized Request.
Packaging Details:
Carton:36x29x14cm
Highlight:

Electrical stepper motor controller

,

NEMA 17 stepper motor controller

,

electrical stepper motor controller

Product Description
NEMA 17 Stepper Motor Controller for 3D Printer Power Supplies
The 42mm Hybrid Stepper Motor Series offers powerful holding torque in a variety of sizes. When used in conjunction with stepper motor drivers, complex motion trajectories can be easily achieved.
Key Features
  • Bipolar or unipolar versions available
  • Hybrid stepper construction
  • Expert in drivetrain solutions
  • Contract-based manufacturing services are welcome
  • Customizations on request
Appearance
NEMA 17 stepper motor controller for 3D printer power supplies electrical with certification 0
Dimensions
NEMA 17 stepper motor controller for 3D printer power supplies electrical with certification 1
Motor Specifications
Step Angle 1.8°
Frame Size 42 mm
Number of Phase 2 Phase
Rated Current 1.5 A
Holding Torque 450 mN.m
Resistance 2.3 ohm
Inductance 4.4 mH
Rotor Inertia 57 g-cm²
Motor Weight 0.24 kg
Number of Leads 4
Connection Bipolar
Operating Specifications

Step Angle: 1.8°

Maximum Temperature: 80°C maximum

Ambient Temperature: -20°C to 50°C

Storage Temperature: -20°C to 100°C

Humidity Range: 85% or less, non-condensing

Magnet Wire Insulation: Class B 130°C

Insulation Resistance: 100M Ohm at 500 VDC

Dielectric Strength: 500 VDC for 1 min

Available Models
Model Holding Torque Step Angle Motor Length Type of Shaft Rated Current
42SHD4950 0.13N.m 1.8° 20mm D Shaft-20mm 1.0A
42SHD4003 0.26N.m 1.8° 34mm D Shaft-20mm 0.4A
42SHD0261 0.45N.m 1.8° 40mm D Shaft-20mm 1.68A
42SHD4425 0.59N.m 1.8° 48mm D Shaft-24mm 2.0A
42SHD4813 0.8N.m 1.8° 60mm D Shaft-24mm 2.1A
Customization Options
If our standard motor cannot meet your needs, we can customize the motor according to your requirements. Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.
Available Options
NEMA 17 stepper motor controller for 3D printer power supplies electrical with certification 2
Encoder
NEMA 17 stepper motor controller for 3D printer power supplies electrical with certification 3
Brake
NEMA 17 stepper motor controller for 3D printer power supplies electrical with certification 4
Gearbox
NEMA 17 stepper motor controller for 3D printer power supplies electrical with certification 5
Shaft
Please click the "Get a quote" button below to tell us your requirements.
