GUANGZHOU FUDE ELECTRONIC TECHNOLOGY CO.,LTD Company Profile
products
Home > products > Hybrid Stepper Motor > 1.8 Degree 2 Phase 12V 350mN.m DC NEMA 17 Hybrid Stepper Motor CNC Robot

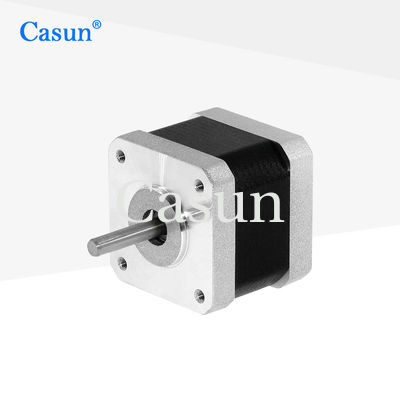

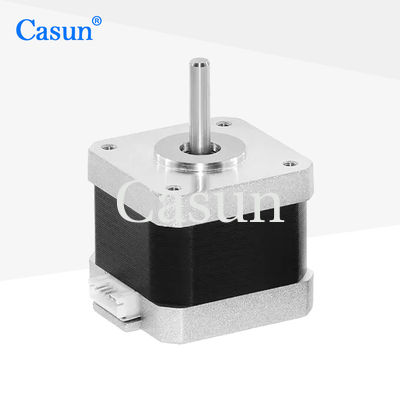

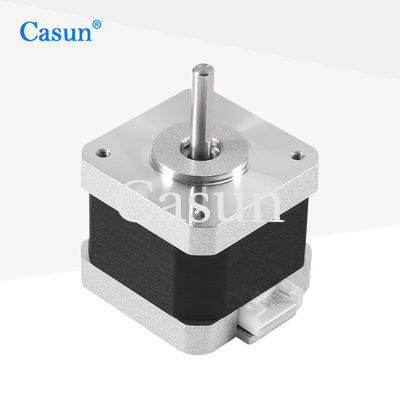

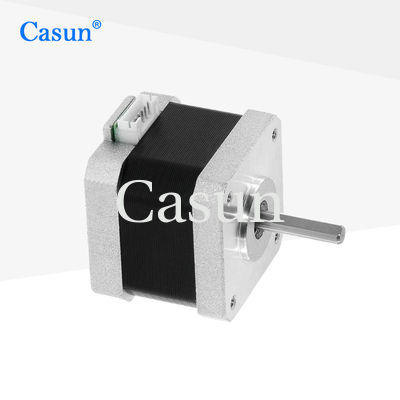

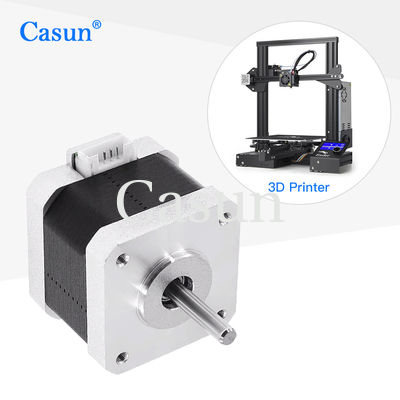

1.8 Degree 2 Phase 12V 350mN.m DC NEMA 17 Hybrid Stepper Motor CNC Robot
1.8 Degree 2 Phase 12V 350mN.m DC NEMA 17 Hybrid Stepper Motor CNC Robot
1.8 Degree 2 Phase 12V 350mN.m DC NEMA 17 Hybrid Stepper Motor CNC Robot
1.8 Degree 2 Phase 12V 350mN.m DC NEMA 17 Hybrid Stepper Motor CNC Robot
1.8 Degree 2 Phase 12V 350mN.m DC NEMA 17 Hybrid Stepper Motor CNC Robot
1.8 Degree 2 Phase 12V 350mN.m DC NEMA 17 Hybrid Stepper Motor CNC Robot
1.8 Degree 2 Phase 12V 350mN.m DC NEMA 17 Hybrid Stepper Motor CNC Robot

1.8 Degree 2 Phase 12V 350mN.m DC NEMA 17 Hybrid Stepper Motor CNC Robot

Product Details

Place of Origin: CHINA

Brand Name: Casun

Certification: CE,ROSH,ISO

Model Number: 42SHD0207-24

Payment & Shipping Terms

Minimum Order Quantity: 1PC

Price: $3.14-$5

Packaging Details: Carton:36x29x14cm

Delivery Time: 7-15 days

Payment Terms: D/A, T/T, L/C, D/P

Supply Ability: 40000+PCS+Month

Get Best Price

Product Details

Product Description
Product Details
High Light:
Step Angel:
1.8°
Holding Torque:
350mN.m
Current:
0.4A
Motor Length:
40mm
Shaft:
Round Shaft 24mm Length
Customized:
The Motor Can Be Designed &manufactured With Customized Request.
Step Angel:
1.8°
Holding Torque:
350mN.m
Current:
0.4A
Motor Length:
40mm
Shaft:
Round Shaft 24mm Length
Customized:
The Motor Can Be Designed &manufactured With Customized Request.
Product Description

Compared to other types of motors, NEMA 17 stepper motors have lower power consumption.

Precision positioning platform in electronic manufacturing, semiconductor processing, and optical equipment.



Features:

  • Bipolar or unipolar versions available

  • Hybrid stepper construction

  • Available in single or double shaft versions

  • Enjoy a ten-year warranty and purchase with confidence

  • Our engineers will be in touch within 48 hours to provide the best solution

Appearance

1.8 Degree 2 Phase 12V 350mN.m DC NEMA 17 Hybrid Stepper Motor CNC Robot 0

Dimensions

1.8 Degree 2 Phase 12V 350mN.m DC NEMA 17 Hybrid Stepper Motor CNC Robot 1



Motor Specifications



Step Angel

1.8 °

Fram Size

40 mm

Number of Phase

2 Phase

Rated Current

0.4 A

Holding Torque

350 mN.m

Resistance

30 ohm

Inductance

32 mH

Rotor Inertia

57 g-cm²

Motor weight

0.24 kg

Number of leads

4

Connection

Bipolar

Operating Specifications

Step Angle: 1.8°

Maximum  Temperature :80°C maximum

Ambient Temperature: -20 °C to 50°C

Storage Temperature -20: °C to 100°C

Humidity Range (%) :85% or less, non-condensing

Magnet Wire Insulation :Class B 130 deg C

Insulation Resistance :100M Ohm at 500 VDC

Dielectric Strength :500 VDC for 1 min







Torque Curves













Submodels

Model Holding Torque Step Angle Motor Length Type of Shaft Rated Current
42SHD4950 0.13N.m 1.8° 20mm D Shaft-20mm 1.0A
42SHD4003 0.26N.m 1.8° 34mm D Shaft-20mm 0.4A
42SHD0261 0.45N.m 1.8° 40mm D Shaft-20mm 1.68A
42SHD4425 0.59N.m 1.8° 48mm D Shaft-24mm 2.0A
42SHD4813 0.8N.m 1.8° 60mm D Shaft-24mm 2.1A





Download

If our standard motor cannot meet your needs,

we can customize the motor according to your needs


Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:

Encoder

Brake

Gearbox

Shaft
1.8 Degree 2 Phase 12V 350mN.m DC NEMA 17 Hybrid Stepper Motor CNC Robot 2 1.8 Degree 2 Phase 12V 350mN.m DC NEMA 17 Hybrid Stepper Motor CNC Robot 3 1.8 Degree 2 Phase 12V 350mN.m DC NEMA 17 Hybrid Stepper Motor CNC Robot 4 1.8 Degree 2 Phase 12V 350mN.m DC NEMA 17 Hybrid Stepper Motor CNC Robot 5



Please click the "Get a quote" button below to tell us your requirements.
