Home > products > Hybrid Stepper Motor > 42X42X40mm 1.8 degree 2 phase 0.5Nm With Nema 17 Gear Shaft Stepper Motor for CNC

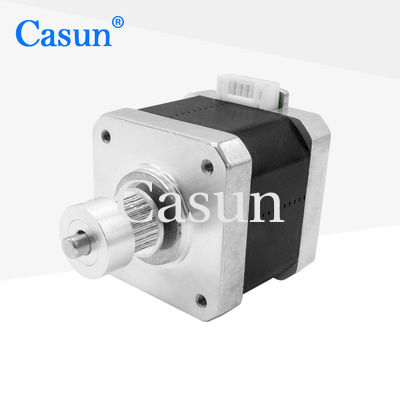

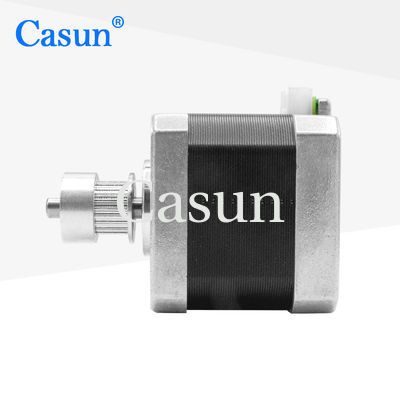

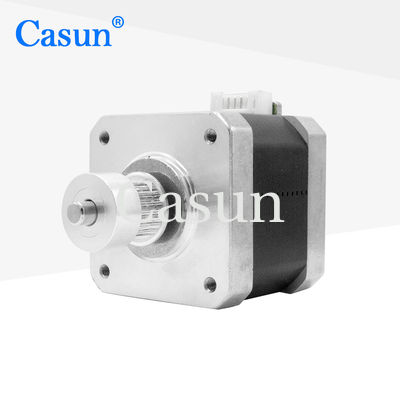

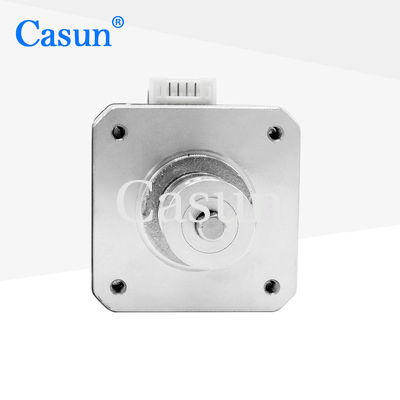

42X42X40mm 1.8 degree 2 phase 0.5Nm With Nema 17 Gear Shaft Stepper Motor for CNC
42X42X40mm 1.8 degree 2 phase 0.5Nm With Nema 17 Gear Shaft Stepper Motor for CNC
42X42X40mm 1.8 degree 2 phase 0.5Nm With Nema 17 Gear Shaft Stepper Motor for CNC
42X42X40mm 1.8 degree 2 phase 0.5Nm With Nema 17 Gear Shaft Stepper Motor for CNC
42X42X40mm 1.8 degree 2 phase 0.5Nm With Nema 17 Gear Shaft Stepper Motor for CNC
42X42X40mm 1.8 degree 2 phase 0.5Nm With Nema 17 Gear Shaft Stepper Motor for CNC

42X42X40mm 1.8 degree 2 phase 0.5Nm With Nema 17 Gear Shaft Stepper Motor for CNC

Product Details

Place of Origin: CHINA

Brand Name: Casun

Certification: CE,ROSH,ISO

Model Number: 42SHD0217-24A

Payment & Shipping Terms

Minimum Order Quantity: 1PC

Price: $3.14-$5

Packaging Details: Carton:36x29x14cm

Delivery Time: 7-15 days

Payment Terms: D/A, T/T, L/C, D/P

Supply Ability: 40000+PCS+Month

Get Best Price

Product Details

Product Description
Product Details
High Light:
Step Angel:
1.8°
Holding Torque:
400mN.m
Current:
1.5A
Motor Length:
40mm
Shaft:
Round Shaft 24mm Length
Customized:
The Motor Can Be Designed &manufactured With Customized Request.
Step Angel:
1.8°
Holding Torque:
400mN.m
Current:
1.5A
Motor Length:
40mm
Shaft:
Round Shaft 24mm Length
Customized:
The Motor Can Be Designed &manufactured With Customized Request.
Product Description

The NEMA 17 stepper motor is used to precisely control the position of the cutting tool or cutting head, achieving precise carving and cutting.

There are complex mechanical conversion components with low failure rates, simple maintenance, and long service life.



Features:

  • Bipolar or unipolar versions available

  • Hybrid stepper construction

  • Available in single or double shaft versions

  • Our engineering team will reach out within 48 hours to deliver the optimal solution

  • Contract-based manufacturing services are welcome

Appearance

42X42X40mm 1.8 degree 2 phase 0.5Nm With Nema 17 Gear Shaft Stepper Motor for CNC 0

Dimensions

42X42X40mm 1.8 degree 2 phase 0.5Nm With Nema 17 Gear Shaft Stepper Motor for CNC 1



Motor Specifications



Step Angel

1.8 °

Fram Size

40 mm

Number of Phase

2 Phase

Rated Current

1.5 A

Holding Torque

400 mN.m

Resistance

2.2 ohm

Inductance

5.0 mH

Rotor Inertia

57 g-cm²

Motor weight

0.24 kg

Number of leads

4

Connection

Bipolar

Operating Specifications

Step Angle: 1.8°

Maximum  Temperature :80°C maximum

Ambient Temperature: -20 °C to 50°C

Storage Temperature -20: °C to 100°C

Humidity Range (%) :85% or less, non-condensing

Magnet Wire Insulation :Class B 130 deg C

Insulation Resistance :100M Ohm at 500 VDC

Dielectric Strength :500 VDC for 1 min







Torque Curves













Submodels

Model Holding Torque Step Angle Motor Length Type of Shaft Rated Current
42SHD4950 0.13N.m 1.8° 20mm D Shaft-20mm 1.0A
42SHD4003 0.26N.m 1.8° 34mm D Shaft-20mm 0.4A
42SHD0261 0.45N.m 1.8° 40mm D Shaft-20mm 1.68A
42SHD4425 0.59N.m 1.8° 48mm D Shaft-24mm 2.0A
42SHD4813 0.8N.m 1.8° 60mm D Shaft-24mm 2.1A





Download

If our standard motor cannot meet your needs,

we can customize the motor according to your needs


Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:

Encoder

Brake

Gearbox

Shaft
42X42X40mm 1.8 degree 2 phase 0.5Nm With Nema 17 Gear Shaft Stepper Motor for CNC 2 42X42X40mm 1.8 degree 2 phase 0.5Nm With Nema 17 Gear Shaft Stepper Motor for CNC 3 42X42X40mm 1.8 degree 2 phase 0.5Nm With Nema 17 Gear Shaft Stepper Motor for CNC 4 42X42X40mm 1.8 degree 2 phase 0.5Nm With Nema 17 Gear Shaft Stepper Motor for CNC 5



Please click the "Get a quote" button below to tell us your requirements.
