Home > products > Hybrid Stepper Motor > 【42SHD0229】42x42x40mm NEMA 17 Hybrid Stepper Motor with gear 0.38Nm for XYZ axis 3D Printer

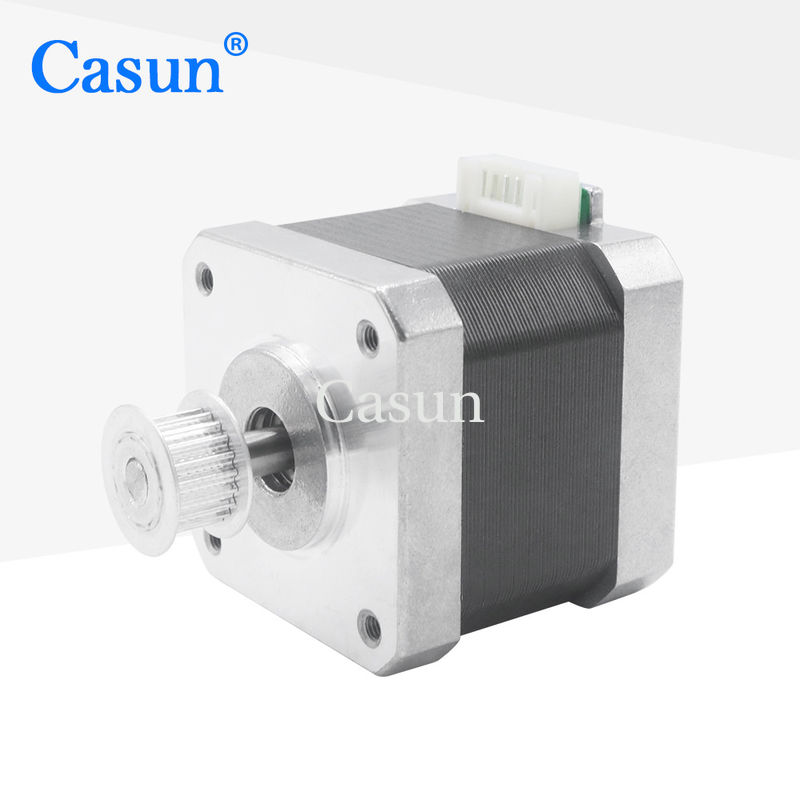

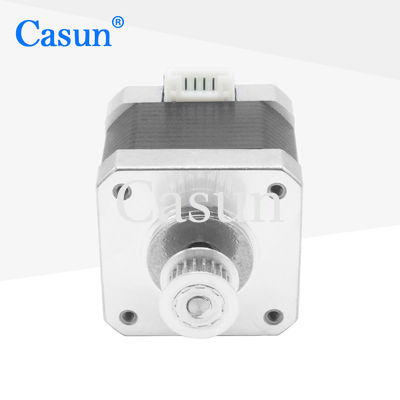

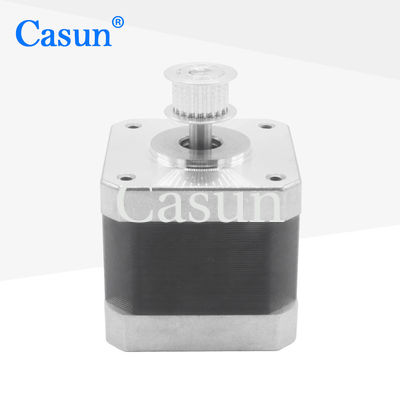

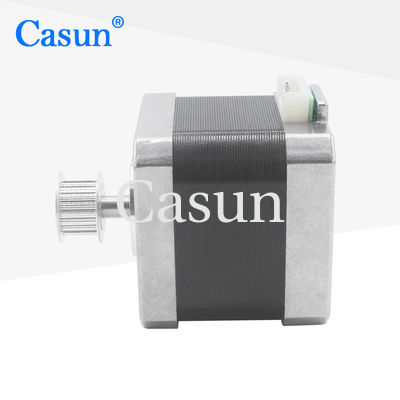

【42SHD0229】42x42x40mm NEMA 17 Hybrid Stepper Motor with gear 0.38Nm for XYZ axis 3D Printer
【42SHD0229】42x42x40mm NEMA 17 Hybrid Stepper Motor with gear 0.38Nm for XYZ axis 3D Printer
【42SHD0229】42x42x40mm NEMA 17 Hybrid Stepper Motor with gear 0.38Nm for XYZ axis 3D Printer
【42SHD0229】42x42x40mm NEMA 17 Hybrid Stepper Motor with gear 0.38Nm for XYZ axis 3D Printer
【42SHD0229】42x42x40mm NEMA 17 Hybrid Stepper Motor with gear 0.38Nm for XYZ axis 3D Printer
【42SHD0229】42x42x40mm NEMA 17 Hybrid Stepper Motor with gear 0.38Nm for XYZ axis 3D Printer

【42SHD0229】42x42x40mm NEMA 17 Hybrid Stepper Motor with gear 0.38Nm for XYZ axis 3D Printer

Product Details

Place of Origin: CHINA

Brand Name: Casun

Certification: CE,ROSH,ISO

Model Number: 42SHD0229-18A

Payment & Shipping Terms

Minimum Order Quantity: 1PC

Price: $3.14-$5

Packaging Details: Carton:36x29x14cm

Delivery Time: 7-15 days

Payment Terms: D/A, T/T, L/C, D/P

Supply Ability: 40000+PCS+Month

Get Best Price

Product Details

Product Description
Product Details
High Light:
Step Angel:
1.8°
Holding Torque:
360mN.m
Current:
1.68A
Motor Length:
40mm
Shaft:
Round Shaft 18mm Length
Customized:
The Motor Can Be Designed &manufactured With Customized Request.
Step Angel:
1.8°
Holding Torque:
360mN.m
Current:
1.68A
Motor Length:
40mm
Shaft:
Round Shaft 18mm Length
Customized:
The Motor Can Be Designed &manufactured With Customized Request.
Product Description

The 42mm Hybrid Stepper Motor Series offers powerful holding torque in a variety of sizes.

Use with a microstepping driver to reduce vibration and achieve higher step resolution.

Choose a baseline version or request your own customized configuration.



Features:

  • Bipolar or unipolar versions available

  • Hybrid stepper construction

  • Available in single or double shaft versions

  • CE and RoHS approved

  • Customizations on request

Appearance

【42SHD0229】42x42x40mm NEMA 17 Hybrid Stepper Motor with gear 0.38Nm for XYZ axis 3D Printer 0

Dimensions

【42SHD0229】42x42x40mm NEMA 17 Hybrid Stepper Motor with gear 0.38Nm for XYZ axis 3D Printer 1

















Motor Specifications



Step Angel

1.8 °

Fram Size

42 mm

Number of Phase

2 Phase

Rated Current

1.68 A

Holding Torque

360 mN.m

Resistance

1.65 ohm

Inductance

3.2 mH

Rotor Inertia

57 g-cm²

Motor weight

0.24 kg

Number of leads

4

Connection

Bipolar

Operating Specifications

Step Angle: 1.8°

Maximum  Temperature :80°C maximum

Ambient Temperature: -20 °C to 50°C

Storage Temperature -20: °C to 100°C

Humidity Range (%) :85% or less, non-condensing

Magnet Wire Insulation :Class B 130 deg C

Insulation Resistance :100M Ohm at 500 VDC

Dielectric Strength :500 VDC for 1 min







Torque Curves













Submodels

Model Holding Torque Step Angle Motor Length Type of Shaft Rated Current
42SHD4950 0.13N.m 1.8° 20mm D Shaft-20mm 1.0A
42SHD4003 0.26N.m 1.8° 34mm D Shaft-20mm 0.4A
42SHD0261 0.45N.m 1.8° 40mm D Shaft-20mm 1.68A
42SHD4425 0.59N.m 1.8° 48mm D Shaft-24mm 2.0A
42SHD4813 0.8N.m 1.8° 60mm D Shaft-24mm 2.1A





Download

If our standard motor cannot meet your needs,

we can customize the motor according to your needs


Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:

Encoder

Brake

Gearbox

Shaft
【42SHD0229】42x42x40mm NEMA 17 Hybrid Stepper Motor with gear 0.38Nm for XYZ axis 3D Printer 2 【42SHD0229】42x42x40mm NEMA 17 Hybrid Stepper Motor with gear 0.38Nm for XYZ axis 3D Printer 3 【42SHD0229】42x42x40mm NEMA 17 Hybrid Stepper Motor with gear 0.38Nm for XYZ axis 3D Printer 4 【42SHD0229】42x42x40mm NEMA 17 Hybrid Stepper Motor with gear 0.38Nm for XYZ axis 3D Printer 5



Please click the "Get a quote" button below to tell us your requirements.
