【42SHD0001】2 Phase NEMA 17 1.8 deg 26N.cm 0.4A 12V DC 34mm 4 Wires Bipolar Stepper Motor

name

【42SHD0001】2 Phase NEMA 17 1.8 deg 26N.cm 0.4A 12V DC 34mm 4 Wires Bipolar Stepper Motor

Brand Name: Casun
Model Number: 42SHD0001-24
MOQ: 1PC
Price: $3.14-$5
Payment Terms: D/A, T/T, L/C, D/P
Supply Ability: 40000+PCS+Month
Detail Information
Product Description
Detail Information
Place of Origin:
CHINA
Certification:
CE,ROSH,ISO
Step Angel:
1.8°
Holding Torque:
260mN.m
Current:
0.4A
Motor Length:
34mm
Shaft:
Round Shaft 24mm Length
Customized:
The Motor Can Be Designed &manufactured With Customized Request.
Packaging Details:
Carton:36x29x14cm
Highlight:

12V DC NEMA 17 Stepper Motor

,

4 Wires NEMA 17 Stepper Motor

,

2 Phase NEMA 17 Stepper Motor

Product Description

The 42mm Hybrid Stepper Motor Series offers powerful holding torque in a variety of sizes.

Use with a microstepping driver to reduce vibration and achieve higher step resolution.

Choose a baseline version or request your own customized configuration.



Features:

  • Bipolar or unipolar versions available

  • Hybrid stepper construction

  • Available in single or double shaft versions

  • CE and RoHS approved

  • Customizations on request

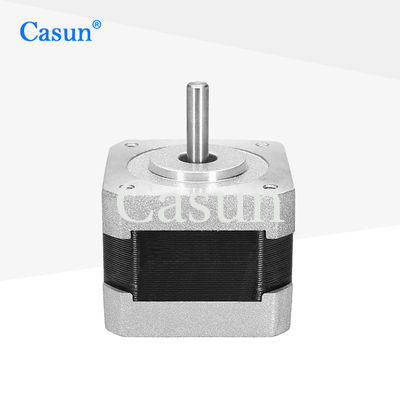

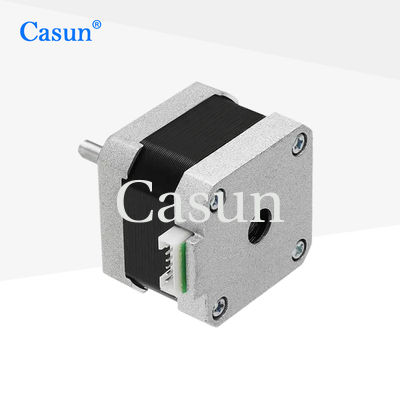

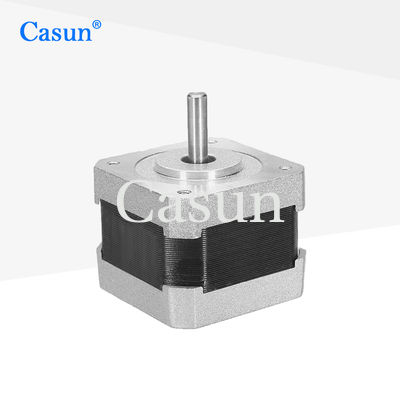

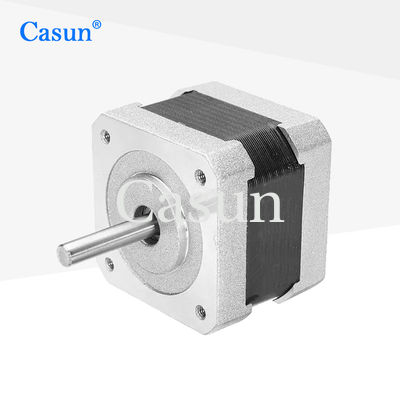

Appearance

【42SHD0001】2 Phase NEMA 17 1.8 deg 26N.cm 0.4A 12V DC 34mm 4 Wires Bipolar Stepper Motor 0

Dimensions 【42SHD0001】2 Phase NEMA 17 1.8 deg 26N.cm 0.4A 12V DC 34mm 4 Wires Bipolar Stepper Motor 1



Motor Specifications



Step Angel

1.8 °

Fram Size

42 mm

Number of Phase

2 Phase

Rated Current

0.4 A

Holding Torque

260 mN.m

Resistance

30 ohm

Inductance

37 mH

Rotor Inertia

38 g-cm²

Motor weight

0.2 kg

Number of leads

4

Connection

Bipolar

Operating Specifications

Step Angle: 1.8°

Maximum  Temperature :80°C maximum

Ambient Temperature: -20 °C to 50°C

Storage Temperature -20: °C to 100°C

Humidity Range (%) :85% or less, non-condensing

Magnet Wire Insulation :Class B 130 deg C

Insulation Resistance :100M Ohm at 500 VDC

Dielectric Strength :500 VDC for 1 min







Torque Curves













Submodels

Model Holding Torque Step Angle Motor Length Type of Shaft Rated Current
42SHD4950 0.13N.m 1.8° 20mm D Shaft-20mm 1.0A
42SHD4003 0.26N.m 1.8° 34mm D Shaft-20mm 0.4A
42SHD0261 0.45N.m 1.8° 40mm D Shaft-20mm 1.68A
42SHD4425 0.59N.m 1.8° 48mm D Shaft-24mm 2.0A
42SHD4813 0.8N.m 1.8° 60mm D Shaft-24mm 2.1A





Download

If our standard motor cannot meet your needs,

we can customize the motor according to your needs


Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:

Encoder

Brake

Gearbox

Shaft
【42SHD0001】2 Phase NEMA 17 1.8 deg 26N.cm 0.4A 12V DC 34mm 4 Wires Bipolar Stepper Motor 2 【42SHD0001】2 Phase NEMA 17 1.8 deg 26N.cm 0.4A 12V DC 34mm 4 Wires Bipolar Stepper Motor 3 【42SHD0001】2 Phase NEMA 17 1.8 deg 26N.cm 0.4A 12V DC 34mm 4 Wires Bipolar Stepper Motor 4 【42SHD0001】2 Phase NEMA 17 1.8 deg 26N.cm 0.4A 12V DC 34mm 4 Wires Bipolar Stepper Motor 5



Please click the "Get a quote" button below to tell us your requirements.
