Home > products > Hybrid Stepper Motor > Hybrid NEMA 17 Stepper Motor High Torque 320mN.m 4 leads with CE ROHS

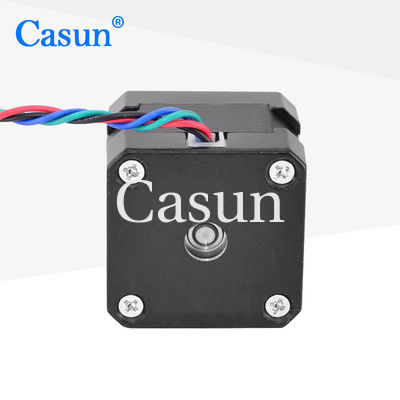

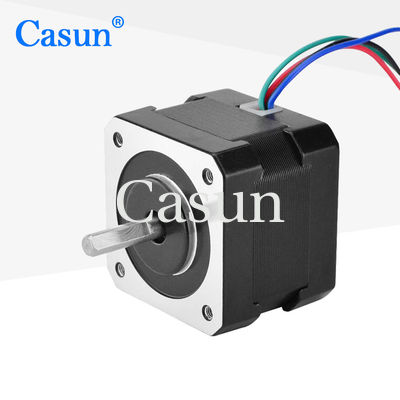

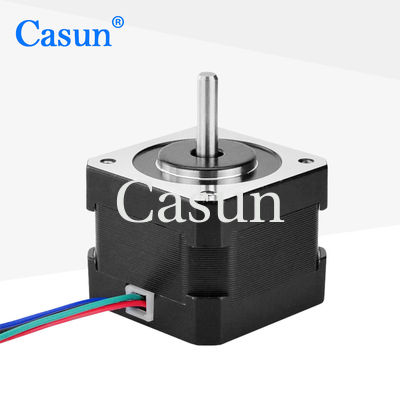

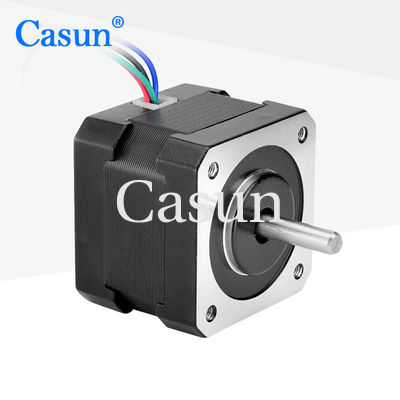

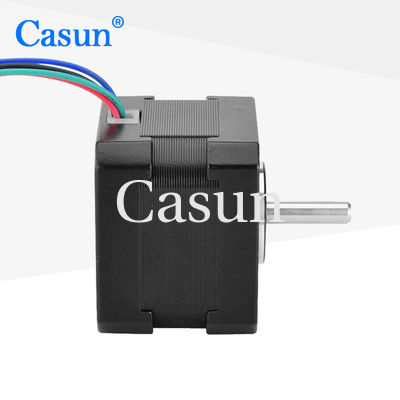

Hybrid NEMA 17 Stepper Motor High Torque 320mN.m 4 leads with CE ROHS
Hybrid NEMA 17 Stepper Motor High Torque 320mN.m 4 leads with CE ROHS
Hybrid NEMA 17 Stepper Motor High Torque 320mN.m 4 leads with CE ROHS
Hybrid NEMA 17 Stepper Motor High Torque 320mN.m 4 leads with CE ROHS
Hybrid NEMA 17 Stepper Motor High Torque 320mN.m 4 leads with CE ROHS
Hybrid NEMA 17 Stepper Motor High Torque 320mN.m 4 leads with CE ROHS

Hybrid NEMA 17 Stepper Motor High Torque 320mN.m 4 leads with CE ROHS

Product Details

Place of Origin: CHINA

Brand Name: Casun

Certification: CE,ROSH,ISO

Model Number: 42SHD4079-24BH

Payment & Shipping Terms

Minimum Order Quantity: 1PC

Price: $3.14-$5

Packaging Details: Carton:36x29x14cm

Delivery Time: 7-15 days

Payment Terms: D/A, T/T, L/C, D/P

Supply Ability: 40000+PCS+Month

Get Best Price

Product Details

Product Description
Product Details
High Light:
Step Angel:
1.8°
Holding Torque:
320mN.m
Current:
1.33A
Motor Length:
34mm
Shaft:
Milling Flat Shaft 24mm Length
Customized:
The Motor Can Be Designed &manufactured With Customized Request.
Step Angel:
1.8°
Holding Torque:
320mN.m
Current:
1.33A
Motor Length:
34mm
Shaft:
Milling Flat Shaft 24mm Length
Customized:
The Motor Can Be Designed &manufactured With Customized Request.
Product Description

The Precision Positioning Platform of NEMA 17 in Electronic Manufacturing, Semiconductor Processing, and Optical Equipment

Used in textile machinery to control the tension of yarns, feed of fabrics, and positioning of scissors.



Features:

  • Bipolar or unipolar versions available

  • We provide tailored services and welcome contract-based production

  • Our engineering team will reach out within 48 hours to deliver the optimal solution

  • CE and RoHS approved

  • Customizations on request



Motor Specifications

Step Angel

1.8 °

Fram Size

42 mm

Number of Phase

2 Phase

Rated Current

1.33 A

Holding Torque

320 mN.m

Resistance

2.7 ohm

Inductance

4.2 mH

Rotor Inertia

38 g-cm²

Motor weight

0.2 kg

Number of leads

4

Connection

Bipolar

Appearance

Hybrid NEMA 17 Stepper Motor High Torque 320mN.m 4 leads with CE ROHS 0

Dimensions

Hybrid NEMA 17 Stepper Motor High Torque 320mN.m 4 leads with CE ROHS 1


Operating Specifications

Step Angle: 1.8°

Maximum  Temperature :80°C maximum

Ambient Temperature: -20 °C to 50°C

Storage Temperature -20: °C to 100°C

Humidity Range (%) :85% or less, non-condensing

Magnet Wire Insulation :Class B 130 deg C

Insulation Resistance :100M Ohm at 500 VDC

Dielectric Strength :500 VDC for 1 min







Torque Curves













Submodels

Model Holding Torque Step Angle Motor Length Type of Shaft Rated Current
42SHD4950 0.13N.m 1.8° 20mm D Shaft-20mm 1.0A
42SHD4003 0.26N.m 1.8° 34mm D Shaft-20mm 0.4A
42SHD0261 0.45N.m 1.8° 40mm D Shaft-20mm 1.68A
42SHD4425 0.59N.m 1.8° 48mm D Shaft-24mm 2.0A
42SHD4813 0.8N.m 1.8° 60mm D Shaft-24mm 2.1A





Download

If our standard motor cannot meet your needs,

we can customize the motor according to your needs


Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:

Encoder

Brake

Gearbox

Shaft
Hybrid NEMA 17 Stepper Motor High Torque 320mN.m 4 leads with CE ROHS 2 Hybrid NEMA 17 Stepper Motor High Torque 320mN.m 4 leads with CE ROHS 3 Hybrid NEMA 17 Stepper Motor High Torque 320mN.m 4 leads with CE ROHS 4 Hybrid NEMA 17 Stepper Motor High Torque 320mN.m 4 leads with CE ROHS 5



Please click the "Get a quote" button below to tell us your requirements.
