Home > products > Hybrid Stepper Motor > 42x42x34mm 2 Phase 1.8 Degree Nema 17 Stepper Motor 12V DC with CE for Robot

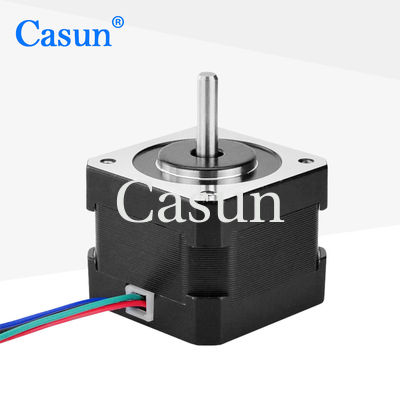

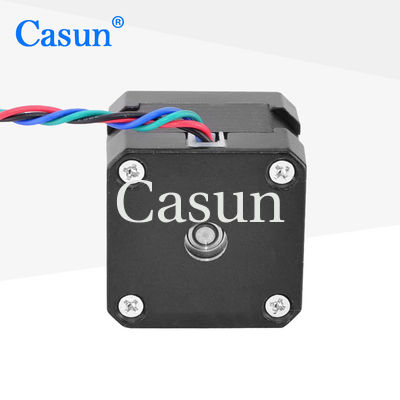

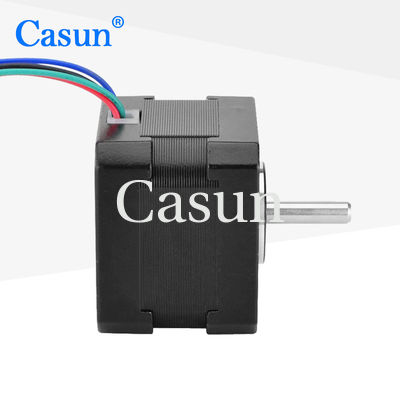

42x42x34mm 2 Phase 1.8 Degree Nema 17 Stepper Motor 12V DC with CE for Robot
42x42x34mm 2 Phase 1.8 Degree Nema 17 Stepper Motor 12V DC with CE for Robot
42x42x34mm 2 Phase 1.8 Degree Nema 17 Stepper Motor 12V DC with CE for Robot
42x42x34mm 2 Phase 1.8 Degree Nema 17 Stepper Motor 12V DC with CE for Robot
42x42x34mm 2 Phase 1.8 Degree Nema 17 Stepper Motor 12V DC with CE for Robot
42x42x34mm 2 Phase 1.8 Degree Nema 17 Stepper Motor 12V DC with CE for Robot

42x42x34mm 2 Phase 1.8 Degree Nema 17 Stepper Motor 12V DC with CE for Robot

Product Details

Place of Origin: CHINA

Brand Name: Casun

Certification: CE,ROSH,ISO

Model Number: 42SHD4077-24BH

Payment & Shipping Terms

Minimum Order Quantity: 1PC

Price: $3.14-$5

Packaging Details: Carton:36x29x14cm

Delivery Time: 7-15 days

Payment Terms: D/A, T/T, L/C, D/P

Supply Ability: 40000+PCS+Month

Get Best Price

Product Details

Product Description
Product Details
High Light:
Step Angel:
1.8°
Holding Torque:
192mN.m
Current:
0.24A
Motor Length:
34mm
Shaft:
Milling Flat Shaft 24mm Length
Customized:
The Motor Can Be Designed &manufactured With Customized Request.
Step Angel:
1.8°
Holding Torque:
192mN.m
Current:
0.24A
Motor Length:
34mm
Shaft:
Milling Flat Shaft 24mm Length
Customized:
The Motor Can Be Designed &manufactured With Customized Request.
Product Description

The NEMA 17 stepper motor can provide very precise motion control, with a stepper resolution of up to micrometers.

Through pulse signal control, it is easy to achieve complex motion trajectories.



Features:

  • Bipolar or unipolar versions available

  • Each of our stepper motor models is suitable for a wide range of applications

  • We are receptive to different contract manufacturing options

  • CE and RoHS approved

  • Customizations on request

Appearance

42x42x34mm 2 Phase 1.8 Degree Nema 17 Stepper Motor 12V DC with CE for Robot 0

Dimensions

42x42x34mm 2 Phase 1.8 Degree Nema 17 Stepper Motor 12V DC with CE for Robot 1

Motor Specifications



Step Angel

1.8 °

Fram Size

42 mm

Number of Phase

2 Phase

Rated Current

0.24 A

Holding Torque

192 mN.m

Resistance

50 ohm

Inductance

55 mH

Rotor Inertia

38 g-cm²

Motor weight

0.2 kg

Number of leads

4

Connection

Bipolar

Operating Specifications

Step Angle: 1.8°

Maximum  Temperature :80°C maximum

Ambient Temperature: -20 °C to 50°C

Storage Temperature -20: °C to 100°C

Humidity Range (%) :85% or less, non-condensing

Magnet Wire Insulation :Class B 130 deg C

Insulation Resistance :100M Ohm at 500 VDC

Dielectric Strength :500 VDC for 1 min







Torque Curves













Submodels

Model Holding Torque Step Angle Motor Length Type of Shaft Rated Current
42SHD4950 0.13N.m 1.8° 20mm D Shaft-20mm 1.0A
42SHD4003 0.26N.m 1.8° 34mm D Shaft-20mm 0.4A
42SHD0261 0.45N.m 1.8° 40mm D Shaft-20mm 1.68A
42SHD4425 0.59N.m 1.8° 48mm D Shaft-24mm 2.0A
42SHD4813 0.8N.m 1.8° 60mm D Shaft-24mm 2.1A





Download

If our standard motor cannot meet your needs,

we can customize the motor according to your needs


Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:

Encoder

Brake

Gearbox

Shaft
42x42x34mm 2 Phase 1.8 Degree Nema 17 Stepper Motor 12V DC with CE for Robot 2 42x42x34mm 2 Phase 1.8 Degree Nema 17 Stepper Motor 12V DC with CE for Robot 3 42x42x34mm 2 Phase 1.8 Degree Nema 17 Stepper Motor 12V DC with CE for Robot 4 42x42x34mm 2 Phase 1.8 Degree Nema 17 Stepper Motor 12V DC with CE for Robot 5



Please click the "Get a quote" button below to tell us your requirements.
