Home > products > Hybrid Stepper Motor > 【42SHD4239】2 Phase NEMA 17 Stepper Motor 1.8 Degree 40mm body 450mN.m for Robot DIY Machine

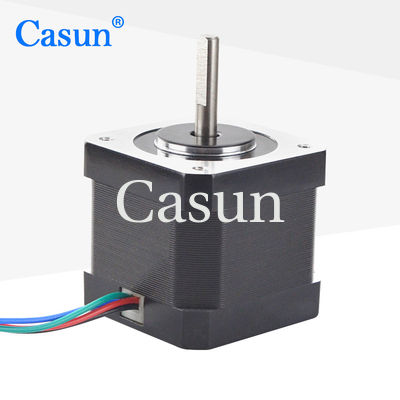

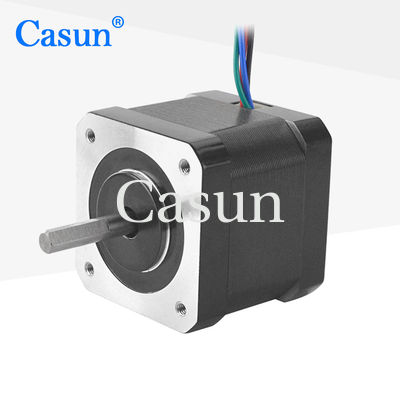

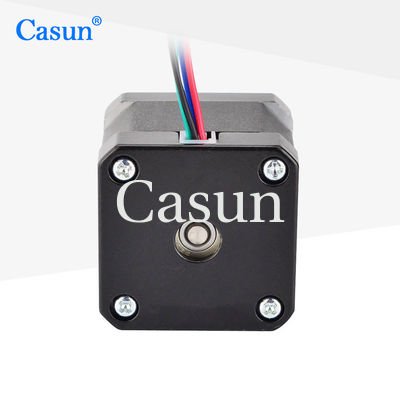

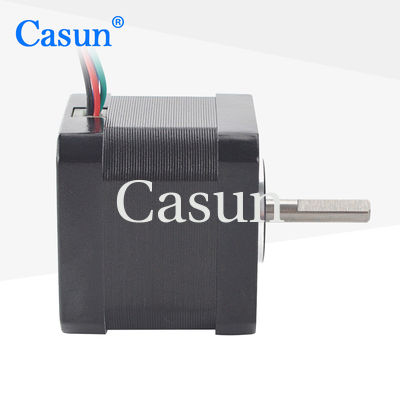

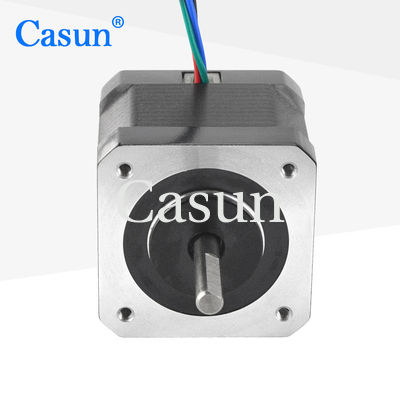

【42SHD4239】2 Phase NEMA 17 Stepper Motor 1.8 Degree 40mm body 450mN.m for Robot DIY Machine
【42SHD4239】2 Phase NEMA 17 Stepper Motor 1.8 Degree 40mm body 450mN.m for Robot DIY Machine
【42SHD4239】2 Phase NEMA 17 Stepper Motor 1.8 Degree 40mm body 450mN.m for Robot DIY Machine
【42SHD4239】2 Phase NEMA 17 Stepper Motor 1.8 Degree 40mm body 450mN.m for Robot DIY Machine
【42SHD4239】2 Phase NEMA 17 Stepper Motor 1.8 Degree 40mm body 450mN.m for Robot DIY Machine
【42SHD4239】2 Phase NEMA 17 Stepper Motor 1.8 Degree 40mm body 450mN.m for Robot DIY Machine

【42SHD4239】2 Phase NEMA 17 Stepper Motor 1.8 Degree 40mm body 450mN.m for Robot DIY Machine

Product Details

Place of Origin: CHINA

Brand Name: Casun

Certification: CE,ROSH,ISO

Model Number: 42SHD4239-19BH

Payment & Shipping Terms

Minimum Order Quantity: 1PC

Price: $3.14-$5

Packaging Details: Carton:36x29x14cm

Delivery Time: 7-15 days

Payment Terms: D/A, T/T, L/C, D/P

Supply Ability: 40000+PCS+Month

Get Best Price

Product Details

Product Description
Product Details
High Light:
Step Angel:
1.8°
Holding Torque:
450mN.m
Current:
1.7A
Motor Length:
40mm
Shaft:
Milling Flat Shaft 19mm Length
Customized:
The Motor Can Be Designed &manufactured With Customized Request.
Step Angel:
1.8°
Holding Torque:
450mN.m
Current:
1.7A
Motor Length:
40mm
Shaft:
Milling Flat Shaft 19mm Length
Customized:
The Motor Can Be Designed &manufactured With Customized Request.
Product Description

The 42mm Hybrid Stepper Motor Series offers powerful holding torque in a variety of sizes.

Use with a microstepping driver to reduce vibration and achieve higher step resolution.

Choose a baseline version or request your own customized configuration.



Features:

  • High torque and high precision

  • Accept contract manufacturing

  • Available in single or double shaft versions

  • Professional research and development manufacturing

  • Established in China for 12 years and has served more than 800 customers

Appearance

【42SHD4239】2 Phase NEMA 17 Stepper Motor 1.8 Degree 40mm body 450mN.m for Robot DIY Machine 0

Dimensions

【42SHD4239】2 Phase NEMA 17 Stepper Motor 1.8 Degree 40mm body 450mN.m for Robot DIY Machine 1



Motor Specifications



Step Angel

1.8 °

Fram Size

40 mm

Number of Phase

2 Phase

Rated Current

1.7 A

Holding Torque

450 mN.m

Resistance

1.43 ohm

Inductance

2.75 mH

Rotor Inertia

57 g-cm²

Motor weight

0.24 kg

Number of leads

4

Connection

Bipolar

Operating Specifications

Step Angle: 1.8°

Maximum  Temperature :80°C maximum

Ambient Temperature: -20 °C to 50°C

Storage Temperature -20: °C to 100°C

Humidity Range (%) :85% or less, non-condensing

Magnet Wire Insulation :Class B 130 deg C

Insulation Resistance :100M Ohm at 500 VDC

Dielectric Strength :500 VDC for 1 min







Torque Curves













Submodels

Model Holding Torque Step Angle Motor Length Type of Shaft Rated Current
42SHD4950 0.13N.m 1.8° 20mm D Shaft-20mm 1.0A
42SHD4003 0.26N.m 1.8° 34mm D Shaft-20mm 0.4A
42SHD0261 0.45N.m 1.8° 40mm D Shaft-20mm 1.68A
42SHD4425 0.59N.m 1.8° 48mm D Shaft-24mm 2.0A
42SHD4813 0.8N.m 1.8° 60mm D Shaft-24mm 2.1A





Download

If our standard motor cannot meet your needs,

we can customize the motor according to your needs


Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:

Encoder

Brake

Gearbox

Shaft
【42SHD4239】2 Phase NEMA 17 Stepper Motor 1.8 Degree 40mm body 450mN.m for Robot DIY Machine 2 【42SHD4239】2 Phase NEMA 17 Stepper Motor 1.8 Degree 40mm body 450mN.m for Robot DIY Machine 3 【42SHD4239】2 Phase NEMA 17 Stepper Motor 1.8 Degree 40mm body 450mN.m for Robot DIY Machine 4 【42SHD4239】2 Phase NEMA 17 Stepper Motor 1.8 Degree 40mm body 450mN.m for Robot DIY Machine 5



Please click the "Get a quote" button below to tell us your requirements.
