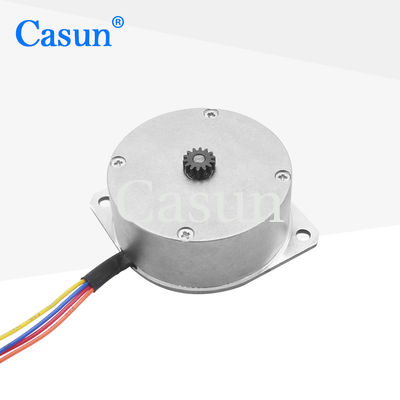

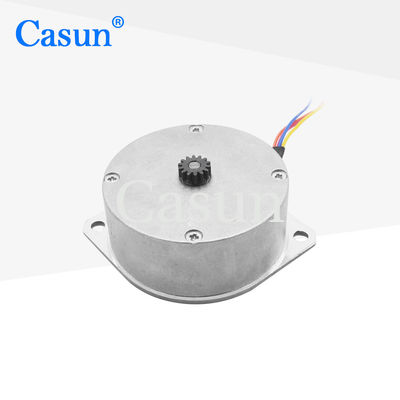

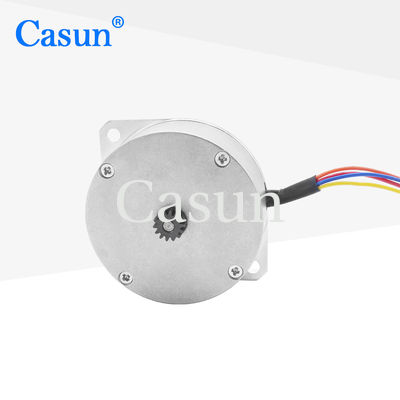

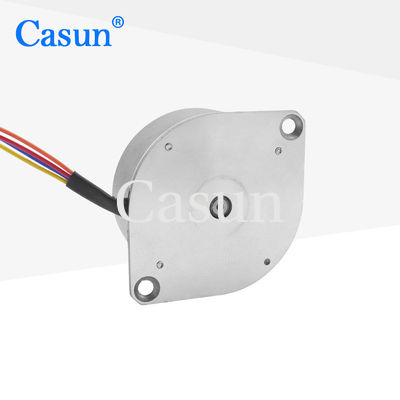

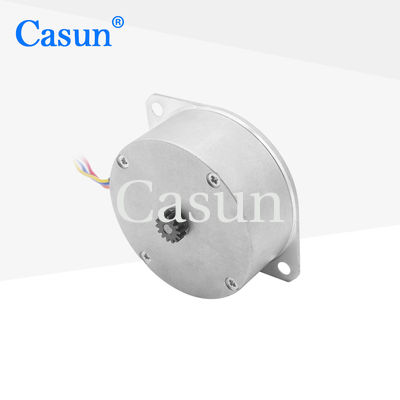

Casun Hybrid Step Motor Nema 1.75V Pancake Stepper Motor 2 Phase

Casun Hybrid Step Motor Nema 1.75V Pancake Stepper Motor 2 Phase

Brand Name:	Casun
Model Number:	46SHY4302-3A2L650
MOQ:	1PC
Price:	$20-$21.53
Payment Terms:	D/A, T/T, L/C, D/P
Supply Ability:	40000+PCS+Month

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

CE,ROHS,ISO

Customized:

The Motor Can Be Designed &manufactured With Customized Request.

Packaging Details:

Carton:36x29x14cm

Highlight:

Casun Hybrid Step Motor

1.75V Pancake Stepper Motor

Pancake Stepper Motor 2 Phase

Product Description

Casun Hybrid Step Motor Nema 1.75V Pancake Stepper Motor 2 Phase

The Hybrid Stepper Motor Series offers powerful holding torque in a variety of sizes. Use with a microstepping driver to reduce vibration and achieve higher step resolution. Choose a baseline version or request your own customized configuration.

Features

Bipolar or unipolar versions available
Hybrid stepper construction
Available in single or double shaft versions
CE and RoHS approved
Customizations on request

Dimensions

Motor Specifications

Specification	Value
Step Angle	1.8°
Frame Size	46mm
Number of Phase	2 Phase
Rated Current	2.0Amp
Holding Torque	170mN.m
Resistance	0.85 ohm
Inductance	1.0mH
Rotor Inertia	18g-cm²
Motor Weight	0.2kg
Number of Leads	4
Connection	Bipolar

Operating Specifications

Parameter	Specification
Step Angle	1.8°
Maximum Temperature	80°C maximum
Ambient Temperature	-20°C to 50°C
Storage Temperature	-20°C to 100°C
Humidity Range	85% or less, non-condensing
Magnet Wire Insulation	Class B 130°C
Insulation Resistance	100M Ohm at 500 VDC
Dielectric Strength	500 VDC for 1 min

Submodels

Model	Motor Length	Current	Holding Torque
P28SHD4611	9.5mm	0.5A	16mN.m
P28SHD4701	10.6mm	0.5A	20mN.m
P28SHD4750	13-15mm	0.5A	25mN.m
P28SHD4950	17.9mm	0.5A	35mN.m

Customization Options

If our standard motor cannot meet your needs, we can customize the motor according to your requirements. Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Encoder

Brake

Gearbox

Shaft

Get a Quote
