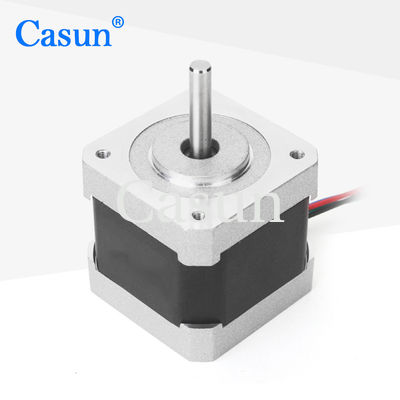

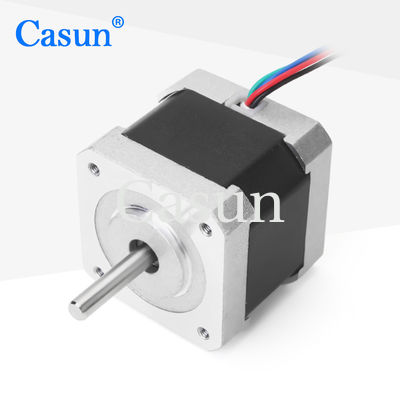

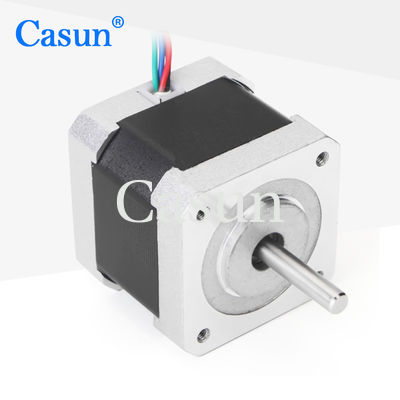

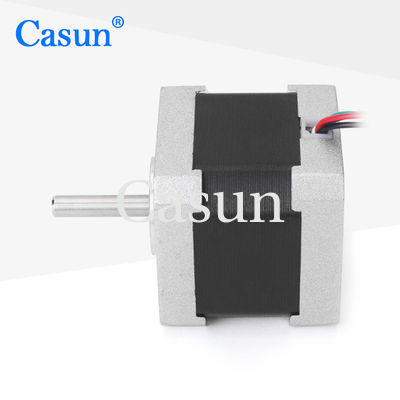

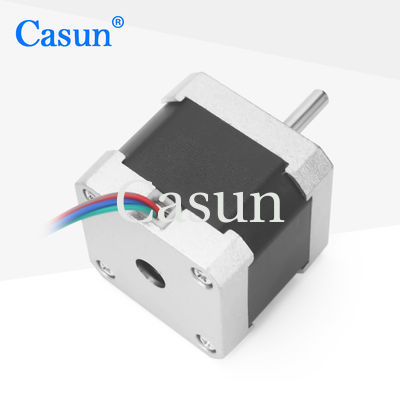

【42SHD4258】42x42x40mm 1.8 Degree 2 Phase 12.6V NEMA 17 Steppering Motor for CNC DIY Machine

【42SHD4258】42x42x40mm 1.8 Degree 2 Phase 12.6V NEMA 17 Steppering Motor for CNC DIY Machine

Brand Name:	Casun
Model Number:	42SHD4258-20
MOQ:	1PC
Price:	$3.14-$5
Payment Terms:	D/A, T/T, L/C, D/P
Supply Ability:	40000+PCS+Month

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

CE,ROSH,ISO

Step Angel:

1.8°

Holding Torque:

450mN.m

Current:

0.6A

Motor Length:

40mm

Shaft:

Round Shaft 20mm Length

Customized:

The Motor Can Be Designed &manufactured With Customized Request.

Packaging Details:

Carton:36x29x14cm

Highlight:

12.6V NEMA 17 Stepper Motor

Product Description

【42SHD4258】42x42x40mm 1.8 Degree 2 Phase 12.6V NEMA 17 Stepper Motor for CNC DIY Machine

The 42mm Hybrid Stepper Motor Series offers powerful holding torque in a variety of sizes. Use with a microstepping driver to reduce vibration and achieve higher step resolution. Choose a baseline version or request your own customized configuration.

Offer custom services
Accept contract manufacturing
Available in single or double shaft versions
Professional drivetrain solution specialist
Established in China for 12 years and has served more than 800 customers

Appearance

Dimensions

Motor Specifications

Step Angle	1.8°
Frame Size	40 mm
Number of Phase	2 Phase
Rated Current	0.6 A
Holding Torque	450 mN.m
Resistance	21 ohm
Inductance	60 mH
Rotor Inertia	57 g-cm²
Motor Weight	0.3 kg
Number of Leads	4
Connection	Bipolar

Operating Specifications

Step Angle: 1.8°

Maximum Temperature: 80°C maximum

Ambient Temperature: -20°C to 50°C

Storage Temperature: -20°C to 100°C

Humidity Range: 85% or less, non-condensing

Magnet Wire Insulation: Class B 130°C

Insulation Resistance: 100M Ohm at 500 VDC

Dielectric Strength: 500 VDC for 1 min

Submodels

Model	Holding Torque	Step Angle	Motor Length	Type of Shaft	Rated Current
42SHD4950	0.13N.m	1.8°	20mm	D Shaft-20mm	1.0A
42SHD4003	0.26N.m	1.8°	34mm	D Shaft-20mm	0.4A
42SHD0261	0.45N.m	1.8°	40mm	D Shaft-20mm	1.68A
42SHD4425	0.59N.m	1.8°	48mm	D Shaft-24mm	2.0A
42SHD4813	0.8N.m	1.8°	60mm	D Shaft-24mm	2.1A

Customization Services

If our standard motor cannot meet your needs, we can customize the motor according to your requirements. Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options

Encoder

Brake

Gearbox

Shaft

Please click the "Get a quote" button below to tell us your requirements.
