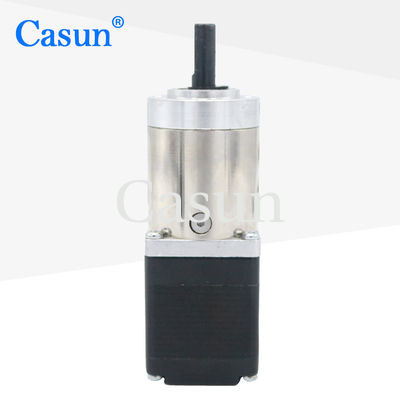

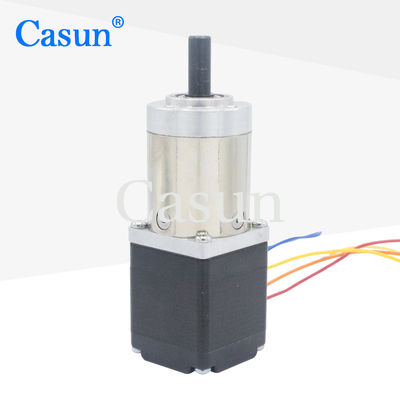

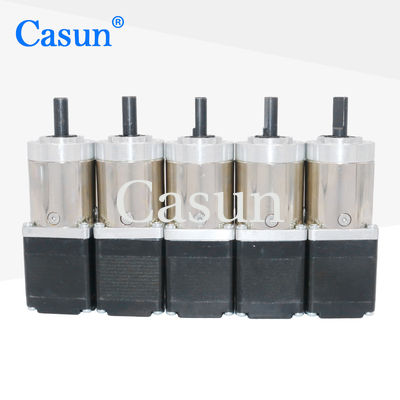

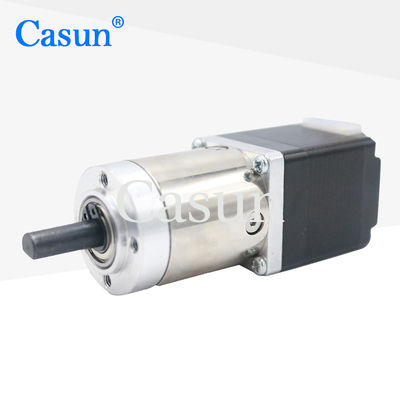

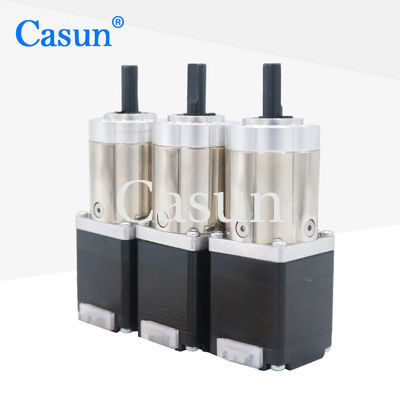

Casun 28mm-57mm NEMA 11 Geared Stepper Motor With Planetary Gearbox

Casun 28mm-57mm NEMA 11 Geared Stepper Motor With Planetary Gearbox

Brand Name:	Casun
Model Number:	28SHD4204-27G
MOQ:	1PC
Price:	$24-$27
Payment Terms:	D/A, T/T, L/C, D/P
Supply Ability:	40000+PCS+Month

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

CE,ROHS,ISO

Stepper Motor:

NEMA11

Phase:

Holding Torque:

60mN.m

Customized:

The Motor Can Be Designed &manufactured With Customized Request.

Packaging Details:

Carton:36x29x14cm

Supply Ability:

40000+PCS+Month

Highlight:

57mm NEMA 11 Geared Stepper Motor

28mm NEMA 11 Geared Stepper Motor

Geared Stepper Motor With Planetary Gearbox

Product Description

Casun 28mm-57mm NEMA 11 Geared Stepper Motor With Planetary Gearbox

Small Gear Stepper Motor 28mm-57mm Micro Geared Stepper Motor with Planetary Gearbox NEMA 11. The 42mm Hybrid Stepper Motor Series offers powerful holding torque in a variety of sizes. Use with a microstepping driver to reduce vibration and achieve higher step resolution. Choose a baseline version or request your own customized configuration.

Key Features

Bipolar or unipolar versions available
Hybrid stepper construction
Available in single or double shaft versions
CE and RoHS approved
Customizations on request

Dimensions

Motor Specifications

Step Angle	1.8°
Frame Size	28 mm
Number of Phase	2 Phase
Rated Current	0.95 A
Holding Torque	60 mN.m
Resistance	3.0 Ω
Inductance	1.8 mH
Rotor Inertia	9 g·cm²
Motor Weight	0.2 kg
Gear Reduction Ratio	26.85:1
Connection	Bipolar

Operating Specifications

Motor

Step Angle	1.8°
Maximum Temperature	80°C maximum
Ambient Temperature	-20°C to 50°C
Storage Temperature	-20°C to 100°C
Humidity Range	85% or less, non-condensing
Magnet Wire Insulation	Class B 130°C
Insulation Resistance	100M Ω at 500 VDC
Dielectric Strength	500 VDC for 1 min

Gear Box

Housing Material	Metal
Bearing at Output	Ball Bearings
Max. Radial Load (12mm from flange)	≤80N
Max. Shaft Axial Load	≤30N
Radial Play of Shaft (near to Flange)	≤0.06mm
Axial Play of Shaft	≤0.3mm
Backlash at No-load	1.5°

Submodels

Motor Length	Length of Gearbox	Ratio	Efficiency
34 mm	27.2 mm	3.71	90%
40 mm		5.18	90%
48 mm		35 mm	80%
60 mm		42.7 mm	70%

Custom Motor Solutions

If our standard motor cannot meet your needs, we can customize the motor according to your requirements.

Customization Options Include:

Special shafts
Winding parameters
Installation dimensions
Lead wires with special requirements
Connectors

Available Options

Encoder

Brake

Gearbox

Shaft

Please click the "Get a quote" button below to tell us your requirements.
