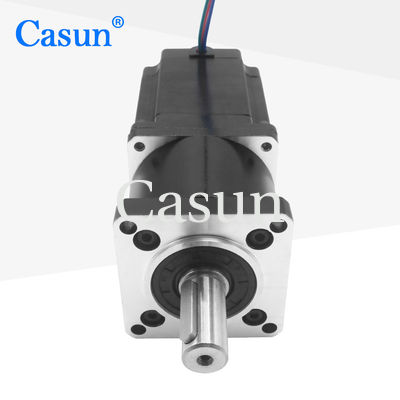

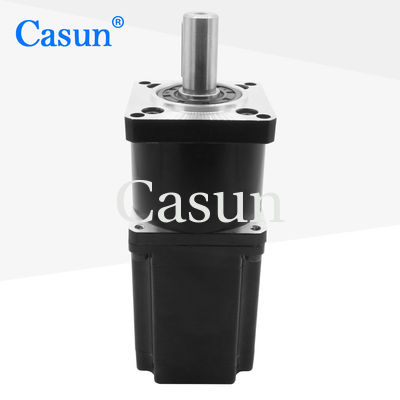

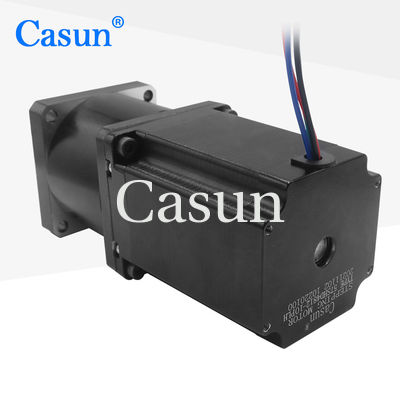

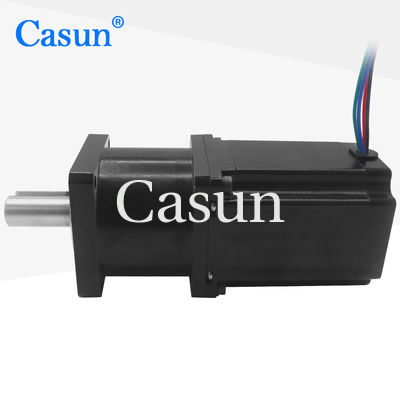

3.36V 57mm NEMA 23 Geared Stepper Motor Gear Reduction 1.8 Degree

Product Details

Place of Origin: CHINA

Brand Name: Casun

Certification: CE,ROHS,ISO

Model Number: 57SHD4812-10PLH

Payment & Shipping Terms

Minimum Order Quantity: 1PC

Price: $26.46-$29.46

Packaging Details: Carton:36x29x14cm

Delivery Time: 7-15 days

Payment Terms: D/A, T/T, L/C, D/P

Supply Ability: 40000+PCS+Month

Get Best Price
Product Details
High Light:

57mm NEMA 23 Geared Stepper Motor

,

3.36V 57mm NEMA 23

,

3.36V Stepper Motor Gear Reduction

Key Words:
Geared Stepper Motor
Voltage:
3.36V
Weight:
1.3KG
Step Angle(degrees):
1.8 Degree
Customized:
The Motor Can Be Designed &manufactured With Customized Request.
Key Words:
Geared Stepper Motor
Voltage:
3.36V
Weight:
1.3KG
Step Angle(degrees):
1.8 Degree
Customized:
The Motor Can Be Designed &manufactured With Customized Request.
Product Description

Nema 17 23 Good Quality High Torque Geared stepper motor, 42mm 57mm Stepping Motorsstepper motor gear reduction

The 42mm Hybrid Stepper Motor Series offers powerful holding torque in a variety of sizes.

Use with a microstepping driver to reduce vibration and achieve higher step resolution.

Choose a baseline version or request your own customized configuration.



Features:

  • Bipolar or unipolar versions available

  • Hybrid stepper construction

  • Available in single or double shaft versions

  • CE and RoHS approved

  • Customizations on request

Dimensions

3.36V 57mm NEMA 23 Geared Stepper Motor Gear Reduction 1.8 Degree 0







Motor Specifications



Step Angel



1.8 °

Fram Size



57mm

Number of Phase



2 Phase

Rated Current



2.8Amp

Holding Torque



2000 mN.m

Resistance



1.2 0hm

Inductance



3.6 mH

Rotor Inertia



460g-cm²

Motor weight



1.3kg

Gear Reduction Ratio





10:1

Connection



Bipolar



Operating Specifications



Motor



Step Angle: 1.8°

Maximum  Temperature :80°C maximum

Ambient Temperature: -20 °C to 50°C

Storage Temperature -20: °C to 100°C

Humidity Range (%) :85% or less, non-condensing

Magnet Wire Insulation :Class B 130 deg C

Insulation Resistance :100M Ohm at 500 VDC

Dielectric Strength :500 VDC for 1 min



Gear Box



Housing Material:Metal
Bearing at Output:Ball Bearings
Max.Radial Load(12mm from flange):≤80N
Max.Shaft Axial Load:≤30N
Radial Play of Shaft (near to Flange):≤0.06mm
Axial Play of Shaft:≤0.3mm
Backlash at No-load:1.5°











Torque Curves







Submodels

Motor Length Length of Gearbox Raio Efficiency
34 mm

40 mm

48 mm

60 mm
27.2 mm 3.71 90%
5.18
35 mm 13.76 80%
19.2
26.8
42.7 mm 51 70%
71
99.5
139


Download





If our standard motor cannot meet your needs,

we can customize the motor according to your needs


Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:
            Encoder          |               Brake           |              Gearbox            |           Shaft

3.36V 57mm NEMA 23 Geared Stepper Motor Gear Reduction 1.8 Degree 1 3.36V 57mm NEMA 23 Geared Stepper Motor Gear Reduction 1.8 Degree 2 3.36V 57mm NEMA 23 Geared Stepper Motor Gear Reduction 1.8 Degree 3 3.36V 57mm NEMA 23 Geared Stepper Motor Gear Reduction 1.8 Degree 4





Please click the "Get  a quote" button below to tell us your requirements.
