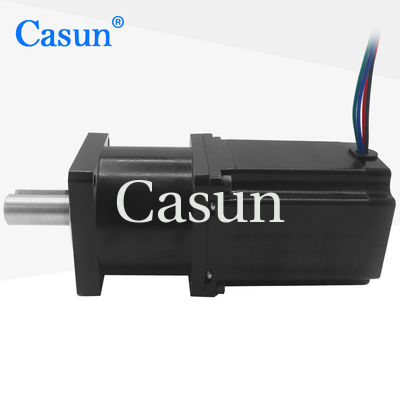

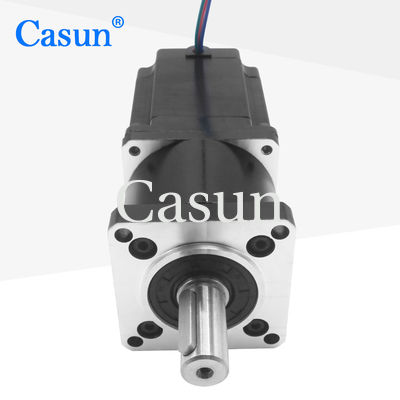

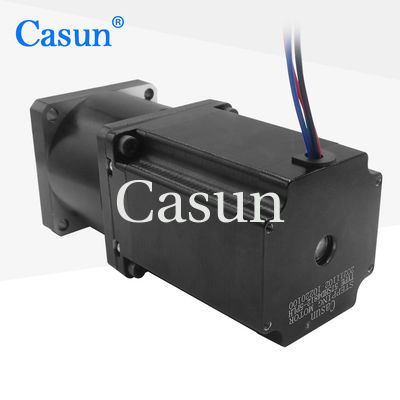

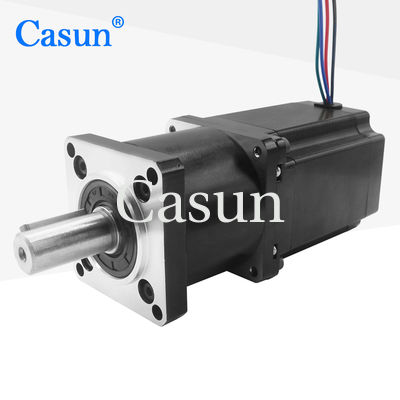

High Torque Geared Stepper Motor 57mm Nema 23 Stepping Motor With Gearbox

High Torque Geared Stepper Motor 57mm Nema 23 Stepping Motor With Gearbox

Brand Name:	Casun
Model Number:	57SHD4812-5PLH
MOQ:	1PC
Price:	$26.46-$29.46
Payment Terms:	D/A, T/T, L/C, D/P
Supply Ability:	40000+PCS+Month

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

CE,ROHS,ISO

Key Words:

Geared Stepper Motor

Voltage:

3.36V

Weight:

1.3KG

Step Angle(degrees):

1.8 Degree

Ratio:

5:1

Customized:

The Motor Can Be Designed &manufactured With Customized Request.

Customized:

The Motor Can Be Designed &manufactured With Customized Request.

Packaging Details:

Carton:36x29x14cm

Highlight:

High Torque Geared Stepper Motor 57mm

57mm Nema 23 Stepping Motor

Nema 23 Stepping Motor With Gearbox

Product Description

High Torque Geared Stepper Motor 57mm Nema 23 Stepping Motor With Gearbox

Nema 23 Good Quality High Torque Geared stepper motor 57mm Stepping Motors low cost stepper motor stepper motor. The 57mm Hybrid Stepper Motor Series offers powerful holding torque in a variety of sizes. Use with a microstepping driver to reduce vibration and achieve higher step resolution. Choose a baseline version or request your own customized configuration.

Key Features

Bipolar or unipolar versions available
Hybrid stepper construction
Available in single or double shaft versions
CE and RoHS approved
Customizations on request

Dimensions

Motor Specifications

Parameter	Value
Step Angle	1.8°
Frame Size	57mm
Number of Phase	2 Phase
Rated Current	2.8Amp
Holding Torque	2000 mN.m
Resistance	1.2 Ohm
Inductance	3.6 mH
Rotor Inertia	460g-cm²
Motor Weight	1.3kg
Gear Reduction Ratio	5:1
Connection	Bipolar

Operating Specifications

Motor

Parameter	Value
Step Angle	1.8°
Maximum Temperature	80°C maximum
Ambient Temperature	-20°C to 50°C
Storage Temperature	-20°C to 100°C
Humidity Range	85% or less, non-condensing
Magnet Wire Insulation	Class B 130 deg C
Insulation Resistance	100M Ohm at 500 VDC
Dielectric Strength	500 VDC for 1 min

Gear Box

Parameter	Value
Housing Material	Metal
Bearing at Output	Ball Bearings
Max. Radial Load (12mm from flange)	≤80N
Max. Shaft Axial Load	≤30N
Radial Play of Shaft (near to Flange)	≤0.06mm
Axial Play of Shaft	≤0.3mm
Backlash at No-load	1.5°

Submodels

Motor Length	Length of Gearbox	Ratio	Efficiency
34 mm	27.2 mm	3.71	90%
40 mm		5.18	90%
48 mm		35 mm	80%
60 mm		13.76	80%
	42.7 mm	51	70%
		71	70%
		99.5	70%
		139	70%

Custom Motor Solutions

If our standard motor cannot meet your needs, we can customize the motor according to your requirements. Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Available Options

Encoder

Brake

Gearbox

Shaft

Get a Quote
