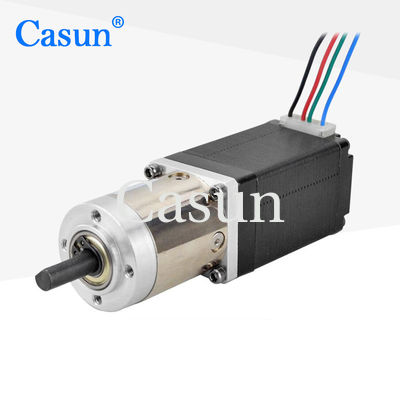

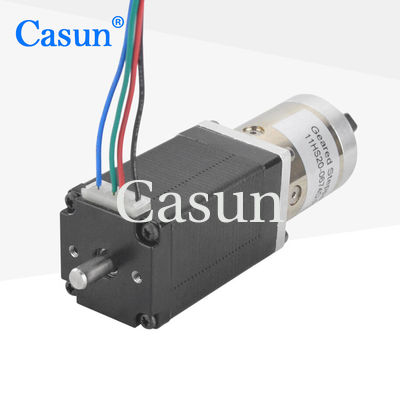

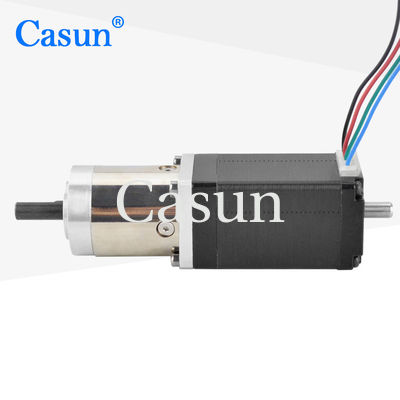

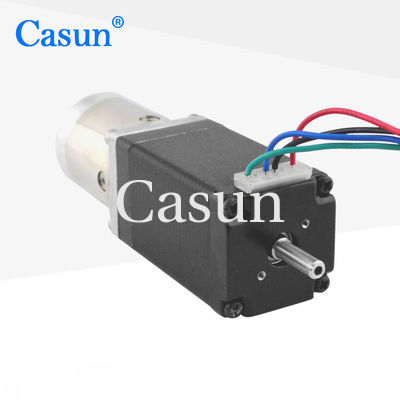

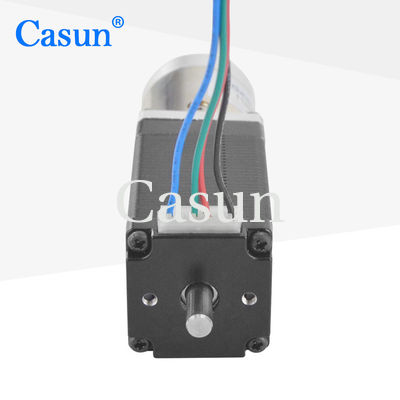

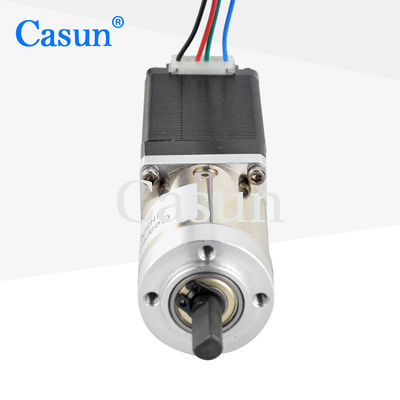

2.88V 140mN NEMA 11 Geared Stepper Motor Casun 2 Phase Step Motor

2.88V 140mN NEMA 11 Geared Stepper Motor Casun 2 Phase Step Motor

Brand Name:	Casun
Model Number:	11HS20-0674D-PG14
MOQ:	1PC
Price:	$28.75-$31.75
Payment Terms:	D/A, T/T, L/C, D/P
Supply Ability:	40000+PCS+Month

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

CE,ROHS,ISO

Key Words:

Geared Stepper Motor

Voltage:

2.88V DC

Weight:

0.25KG

Step Angle(degrees):

1.8 Degree

Ratio:

13.73:1

Customized:

The Motor Can Be Designed &manufactured With Customized Request.

Packaging Details:

Carton:36x29x14cm

Highlight:

140mN NEMA 11 Geared Stepper Motor

2.88V NEMA 11 Geared Stepper Motor

Casun 2 Phase Step Motor

Product Description

nema 11geared stepper motor 2.88V 140mN small stepper motor 2 phase step motor

The 42mm Hybrid Stepper Motor Series offers powerful holding torque in a variety of sizes.

Use with a microstepping driver to reduce vibration and achieve higher step resolution.

Choose a baseline version or request your own customized configuration.

Features:

Bipolar or unipolar versions available
Hybrid stepper construction
Available in single or double shaft versions
CE and RoHS approved
Customizations on request

Dimensions

Motor Specifications

Step Angel	1.8 °
Fram Size	42mm
Number of Phase	2 Phase
Rated Current	0.67Amp
Holding Torque	140mN.m
Resistance	12ohm
Inductance	6.5mH
Rotor Inertia	12g-cm²
Motor weight	0.25kg
Gear Reduction Ratio	13.73:1
Connection	Bipolar

Operating Specifications

Motor

Step Angle: 1.8°

Maximum Temperature :80°C maximum

Ambient Temperature: -20 °C to 50°C

Storage Temperature -20: °C to 100°C

Humidity Range (%) :85% or less, non-condensing

Magnet Wire Insulation :Class B 130 deg C

Insulation Resistance :100M Ohm at 500 VDC

Dielectric Strength :500 VDC for 1 min

Gear Box

Housing Material:Metal
Bearing at Output:Ball Bearings
Max.Radial Load(12mm from flange):≤80N
Max.Shaft Axial Load:≤30N
Radial Play of Shaft (near to Flange):≤0.06mm
Axial Play of Shaft:≤0.3mm
Backlash at No-load:1.5°

Torque Curves

Submodels

Motor Length	Length of Gearbox	Raio	Efficiency
34 mm 40 mm 48 mm 60 mm	27.2 mm	3.71	90%
		5.18
	35 mm	13.76	80%
		19.2
		26.8
	42.7 mm	51	70%
		71
		99.5
		139

Download

If our standard motor cannot meet your needs,

we can customize the motor according to your needs

Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:
Encoder | Brake | Gearbox | Shaft

2.88V 140mN NEMA 11 Geared Stepper Motor Casun 2 Phase Step Motor 1

Please click the "Get a quote" button below to tell us your requirements.
