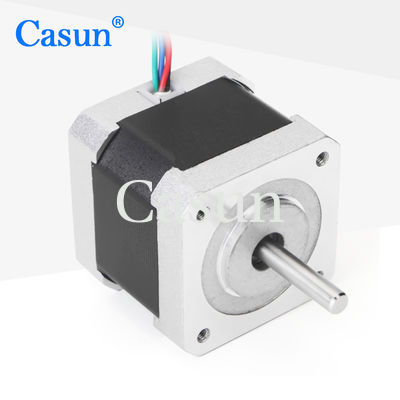

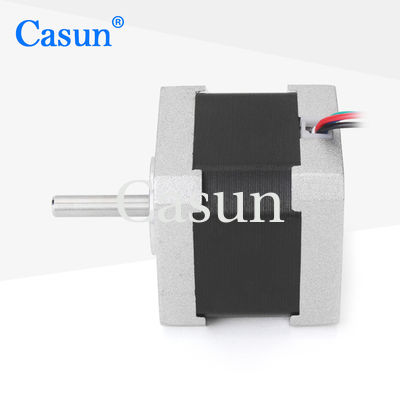

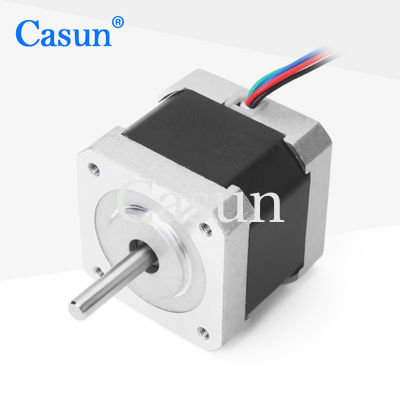

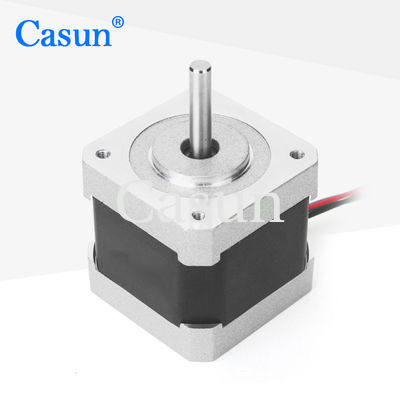

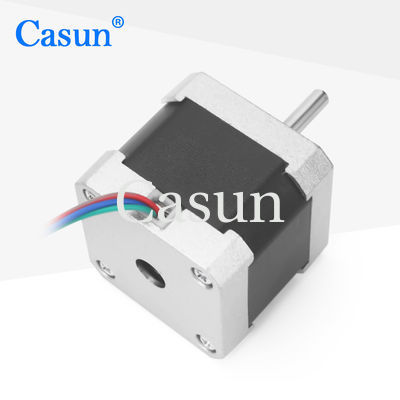

42SHD4261 1.68A NEMA 17 Stepper Motor 40mm body Micro Motor 450mN.m for Home Intelligence

42SHD4261 1.68A NEMA 17 Stepper Motor 40mm body Micro Motor 450mN.m for Home Intelligence

Brand Name:	Casun
Model Number:	42SHD4261-20
MOQ:	1PC
Price:	$3.14-$5
Payment Terms:	D/A, T/T, L/C, D/P
Supply Ability:	40000+PCS+Month

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

CE,ROSH,ISO

Step Angel:

1.8°

Holding Torque:

450mN.m

Current:

1.68A

Motor Length:

40mm

Shaft:

Round Shaft 20mm Length

Customized:

The Motor Can Be Designed &manufactured With Customized Request.

Packaging Details:

Carton:36x29x14cm

Highlight:

450mN.m NEMA 17 Stepper Motor

1.68A NEMA 17 Stepper Motor

40mm body NEMA 17 Stepper Motor

Product Description

42SHD4261 1.68A NEMA 17 Stepper Motor 40mm body Micro Motor 450mN.m for Home Intelligence

The 42mm Hybrid Stepper Motor Series offers powerful holding torque in a variety of sizes. Use with a microstepping driver to reduce vibration and achieve higher step resolution. Choose a baseline version or request your own customized configuration.

Features

Custom services available
Contract manufacturing accepted
Available in single or double shaft versions
Professional drivetrain solution specialist
Established in China for 12 years with over 800 customers served

Appearance

Dimensions

Motor Specifications

Step Angle	1.8°
Frame Size	40 mm
Number of Phase	2 Phase
Rated Current	1.68 A
Holding Torque	450 mN.m
Resistance	2.0 ohm
Inductance	4.4 mH
Rotor Inertia	57 g-cm²
Motor Weight	0.3 kg
Number of Leads	4
Connection	Bipolar

Operating Specifications

Step Angle	1.8°
Maximum Temperature	80°C maximum
Ambient Temperature	-20°C to 50°C
Storage Temperature	-20°C to 100°C
Humidity Range	85% or less, non-condensing
Magnet Wire Insulation	Class B 130°C
Insulation Resistance	100M Ohm at 500 VDC
Dielectric Strength	500 VDC for 1 min

Submodels

Model	Holding Torque	Step Angle	Motor Length	Type of Shaft	Rated Current
42SHD4950	0.13N.m	1.8°	20mm	D Shaft-20mm	1.0A
42SHD4003	0.26N.m	1.8°	34mm	D Shaft-20mm	0.4A
42SHD0261	0.45N.m	1.8°	40mm	D Shaft-20mm	1.68A
42SHD4425	0.59N.m	1.8°	48mm	D Shaft-24mm	2.0A
42SHD4813	0.8N.m	1.8°	60mm	D Shaft-24mm	2.1A

Customization Services

If our standard motor cannot meet your needs, we can customize the motor according to your requirements. Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Available Options

Encoder

Brake

Gearbox

Shaft

Please click the "Get a quote" button below to tell us your requirements.

Get a quote
