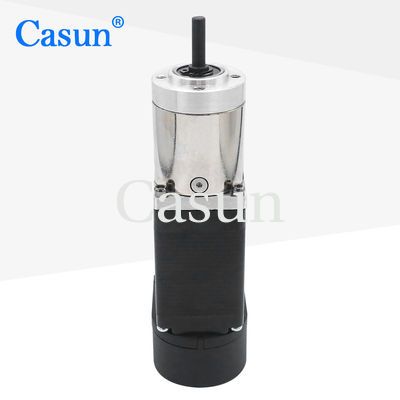

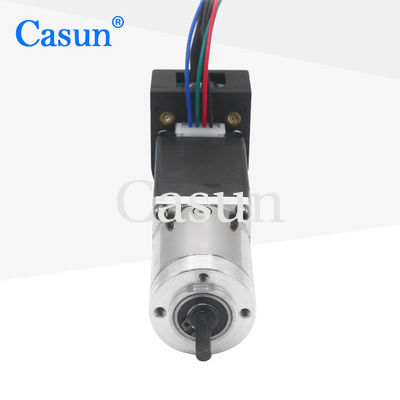

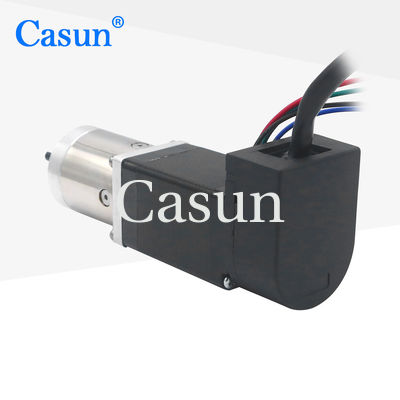

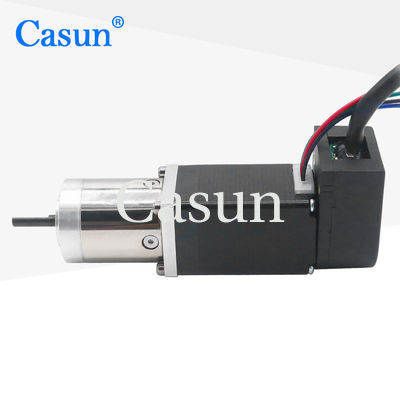

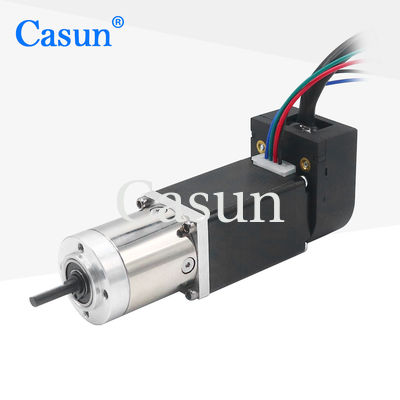

28x28mm NEMA 11 Geared Stepper Motor High Torque 95mN.M Bipolar

28x28mm NEMA 11 Geared Stepper Motor High Torque 95mN.M Bipolar

Brand Name:	Casun
Model Number:	28SHD4401-19GQ
MOQ:	1PC
Price:	$27.23-$30.23
Payment Terms:	D/A, T/T, L/C, D/P
Supply Ability:	40000+PCS+Month

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

CE,ROHS,ISO

Key Words:

Geared Stepper Motor

Voltage:

4.56V DC

Step Angle(degrees):

1.8 Degree

Ratio:

14:1

Customized:

The Motor Can Be Designed &manufactured With Customized Request.

Packaging Details:

Carton:36x29x14cm

Highlight:

28x28mm NEMA 11 Geared

28x28mm Geared Stepper Motor

Stepper Motor High Torque 95mN.M

Product Description

28x28mm NEMA 11 Geared Stepper Motor High Torque 95mN.M Bipolar

This NEMA 11 28mm x 28mm stepper motor with planetary gearbox delivers high torque in a compact package. The hybrid stepper motor series provides powerful holding torque in various sizes. Use with a microstepping driver to reduce vibration and achieve higher step resolution. Available in baseline versions or customized configurations.

Key Features

Bipolar or unipolar versions available
Hybrid stepper construction
Available in single or double shaft versions
CE and RoHS approved
Customizations on request

Dimensions

Motor Specifications

Parameter	Value
Step Angle	1.8°
Frame Size	28mm
Number of Phase	2 Phase
Rated Current	0.67Amp
Holding Torque	95mN.m
Resistance	6.8ohm
Inductance	4.9mH
Rotor Inertia	9g-cm²
Motor Weight	0.16kg
Gear Reduction Ratio	19.2:1
Connection	Bipolar

Operating Specifications

Motor

Step Angle	1.8°
Maximum Temperature	80°C maximum
Ambient Temperature	-20°C to 50°C
Storage Temperature	-20°C to 100°C
Humidity Range	85% or less, non-condensing
Magnet Wire Insulation	Class B 130 deg C
Insulation Resistance	100M Ohm at 500 VDC
Dielectric Strength	500 VDC for 1 min

Gear Box

Housing Material	Metal
Bearing at Output	Ball Bearings
Max. Radial Load (12mm from flange)	≤80N
Max. Shaft Axial Load	≤30N
Radial Play of Shaft (near to Flange)	≤0.06mm
Axial Play of Shaft	≤0.3mm
Backlash at No-load	1.5°

Submodels

Motor Length	Length of Gearbox	Ratio	Efficiency
34 mm	27.2 mm	3.71	90%
40 mm		5.18
48 mm		35 mm
60 mm		13.76
	42.7 mm	19.2	80%
		26.8
		51	70%
		71
		99.5
		139

Custom Motor Solutions

If our standard motor cannot meet your requirements, we can customize the motor according to your specific needs. Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, and more.

Available Options

Encoder

Brake

Gearbox

Shaft

Please click the "Get a quote" button below to tell us your requirements.
