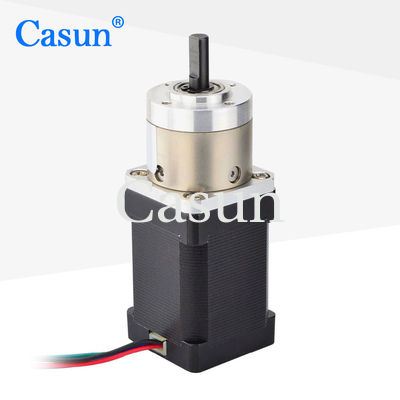

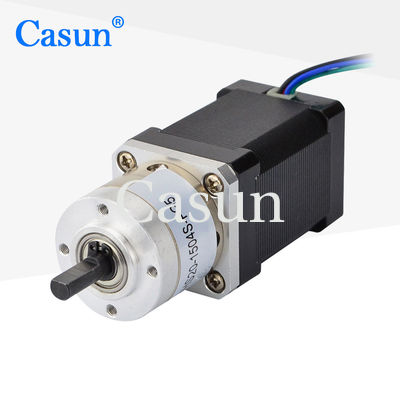

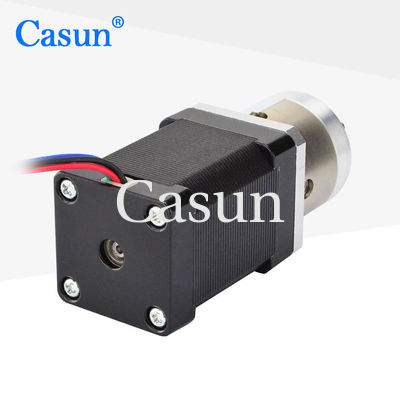

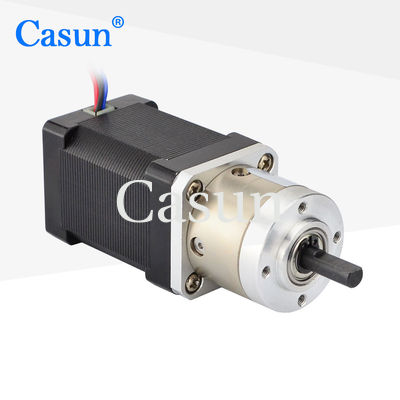

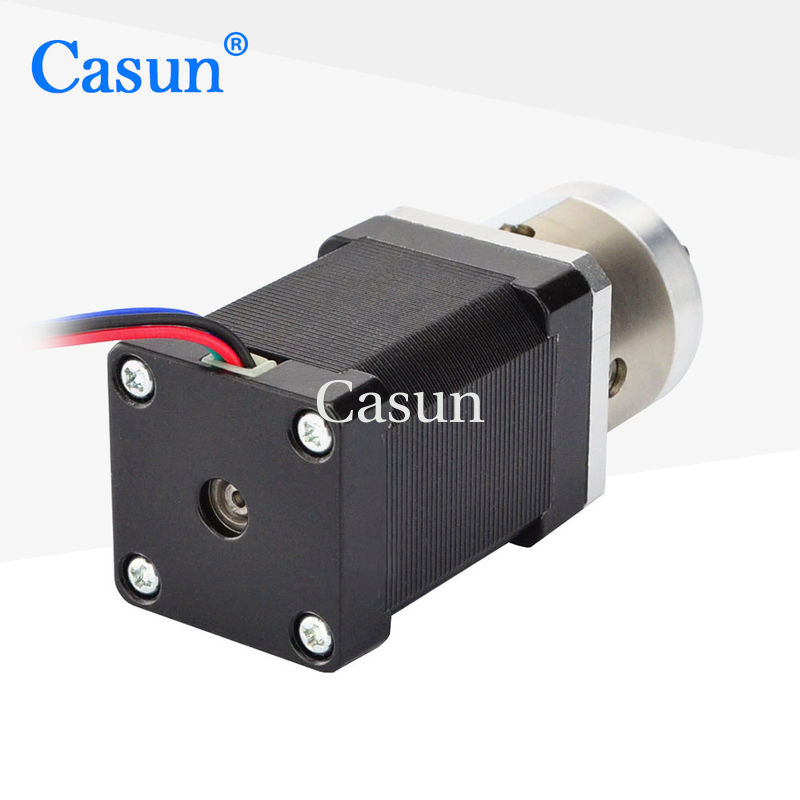

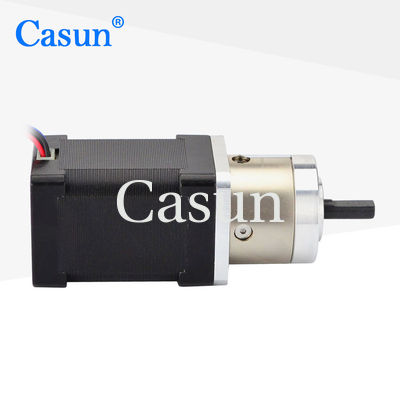

35mm NEMA 14 Geared Stepper Motor 12V Planetary Gearbox Casun Motor

35mm NEMA 14 Geared Stepper Motor 12V Planetary Gearbox Casun Motor

Brand Name:	Casun
Model Number:	35SHD0602-4G
MOQ:	1PC
Price:	$24.9-$27.9
Payment Terms:	D/A, T/T, L/C, D/P
Supply Ability:	40000+PCS+Month

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

CE,ROHS,ISO

Current / Phase:

0.5A

Product Name:

Stepper Motor With Geared

Motor Length:

50mm

Customized:

The Motor Can Be Designed &manufactured With Customized Request.

Customized:

The Motor Can Be Designed &manufactured With Customized Request.

Packaging Details:

Carton:36x29x14cm

Highlight:

35mm NEMA 14 Geared Stepper Motor

NEMA 14 Geared Stepper Motor 12V

12V Planetary Gearbox Casun Motor

Product Description

35mm NEMA 14 Geared Stepper Motor 12V Planetary Gearbox Casun Motor

Stepper Gear Motor 35mm 12V Stepper Motor with Planetary Gearbox for Food Machinery, medical equipment. The 42mm Hybrid Stepper Motor Series offers powerful holding torque in a variety of sizes. Use with a microstepping driver to reduce vibration and achieve higher step resolution. Choose a baseline version or request your own customized configuration.

Key Features

Bipolar or unipolar versions available
Hybrid stepper construction
Available in single or double shaft versions
CE and RoHS approved
Customizations on request

Dimensions

Motor Specifications

Step Angle	1.8°
Frame Size	35 mm
Number of Phase	2 Phase
Rated Current	0.5 A
Holding Torque	300 mN.m
Resistance	24 Ω
Inductance	42 mH
Rotor Inertia	28 g·cm²
Motor Weight	0.3 kg
Gear Reduction Ratio	3.7:1
Connection	Bipolar

Operating Specifications

Motor

Step Angle	1.8°
Maximum Temperature	80°C maximum
Ambient Temperature	-20°C to 50°C
Storage Temperature	-20°C to 100°C
Humidity Range	85% or less, non-condensing
Magnet Wire Insulation	Class B 130°C
Insulation Resistance	100M Ω at 500 VDC
Dielectric Strength	500 VDC for 1 min

Gear Box

Housing Material	Metal
Bearing at Output	Ball Bearings
Max. Radial Load (12mm from flange)	≤80N
Max. Shaft Axial Load	≤30N
Radial Play of Shaft (near to Flange)	≤0.06mm
Axial Play of Shaft	≤0.3mm
Backlash at No-load	1.5°

Submodels

Motor Length	Length of Gearbox	Ratio	Efficiency
34 mm	27.2 mm	3.71	90%
40 mm		5.18	35 mm
48 mm		13.76	80%
60 mm		19.2	26.8
	42.7 mm	51	70%
		71
		99.5
		139

Custom Motor Solutions

If our standard motor cannot meet your needs, we can customize the motor according to your requirements. Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Available Options

Encoder

Brake

Gearbox

Shaft
