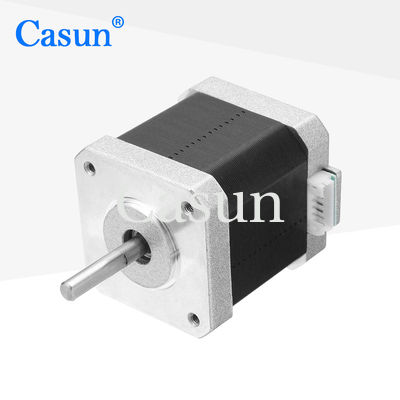

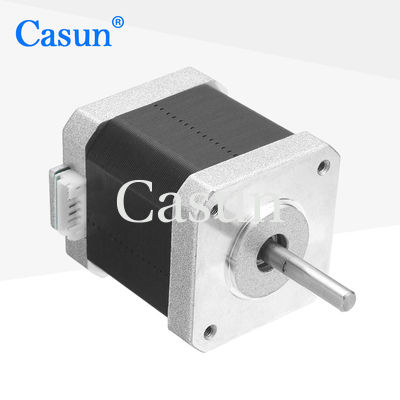

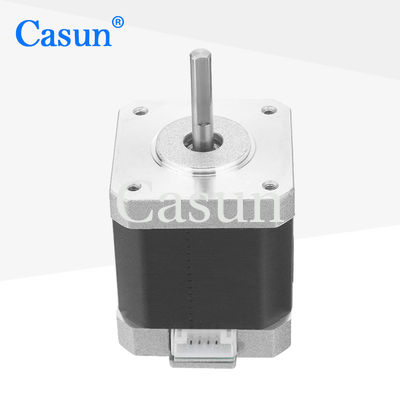

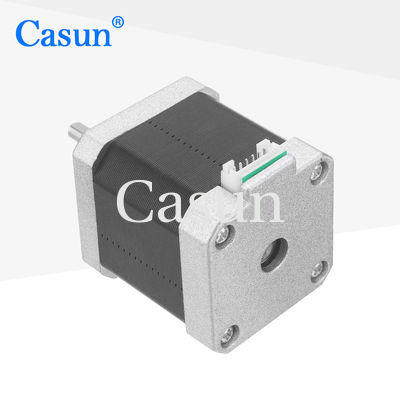

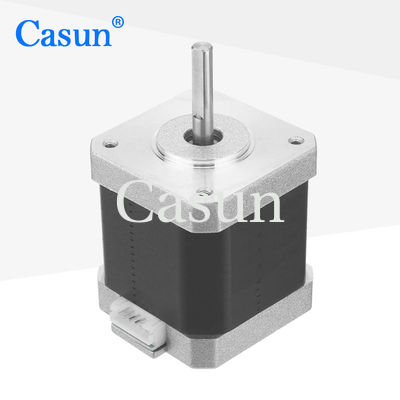

【42SHD0435】1.8 Degree 12V 400mN.m High Torque 48mm length Nema 17 Hybrid Stepper Motor with CE

name

【42SHD0435】1.8 Degree 12V 400mN.m High Torque 48mm length Nema 17 Hybrid Stepper Motor with CE

Brand Name: Casun
Model Number: 42SHD0435-24B
MOQ: 1PC
Price: $3.14-$5
Payment Terms: D/A, T/T, L/C, D/P
Supply Ability: 40000+PCS+Month
Detail Information
Product Description
Detail Information
Place of Origin:
CHINA
Certification:
CE,ROHS,ISO
Step Angel:
1.8°
Holding Torque:
400mN.m
Current:
0.4A
Motor Length:
48mm
Shaft:
Milling Flat Shaft 24mm Length
Customized:
The Motor Can Be Designed &manufactured With Customized Request.
Packaging Details:
Carton:36x29x14cm
Highlight:

12V Nema 17 Hybrid Stepper Motor

,

48mm Nema 17 Hybrid Stepper Motor

Product Description
NEMA 17 Hybrid Stepper Motor - 42SHD0435
This 1.8° step angle NEMA 17 stepper motor delivers 400mN.m of high torque with fast response characteristics, enabling quick start and stop operations. Designed for reliability in demanding applications, this 12V motor features CE certification and is available in 48mm length.
Key Features
  • Specialized services for high-tech and electronic industry equipment
  • Available in single or double shaft versions
  • Professional drivetrain solution expertise
  • Engineering consultation within 48 hours for optimal solutions
Motor Specifications
Step Angle1.8°
Frame Size42 mm
Number of Phase4 Phase
Rated Current0.4 A
Holding Torque400 mN.m
Resistance30 ohm
Inductance23 mH
Rotor Inertia81 g-cm²
Motor Weight0.38 kg
Number of Leads6
ConnectionBipolar
Motor Appearance & Dimensions
【42SHD0435】1.8 Degree 12V 400mN.m High Torque 48mm length Nema 17 Hybrid Stepper Motor with CE 0
【42SHD0435】1.8 Degree 12V 400mN.m High Torque 48mm length Nema 17 Hybrid Stepper Motor with CE 1
Operating Specifications
Step Angle: 1.8°
Maximum Temperature: 80°C
Ambient Temperature: -20°C to 50°C
Storage Temperature: -20°C to 100°C
Humidity Range: 85% or less, non-condensing
Magnet Wire Insulation: Class B 130°C
Insulation Resistance: 100M Ohm at 500 VDC
Dielectric Strength: 500 VDC for 1 minute
Related Motor Models
Model Holding Torque Step Angle Motor Length Type of Shaft Rated Current
42SHD4950 0.13N.m 1.8° 20mm D Shaft-20mm 1.0A
42SHD4003 0.26N.m 1.8° 34mm D Shaft-20mm 0.4A
42SHD0261 0.45N.m 1.8° 40mm D Shaft-20mm 1.68A
42SHD4425 0.59N.m 1.8° 48mm D Shaft-24mm 2.0A
42SHD4813 0.8N.m 1.8° 60mm D Shaft-24mm 2.1A
Customization Options
If our standard motor cannot meet your requirements, we can customize the motor according to your specific needs. Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, and more.
Available Options
【42SHD0435】1.8 Degree 12V 400mN.m High Torque 48mm length Nema 17 Hybrid Stepper Motor with CE 2
Encoder
【42SHD0435】1.8 Degree 12V 400mN.m High Torque 48mm length Nema 17 Hybrid Stepper Motor with CE 3
Brake
【42SHD0435】1.8 Degree 12V 400mN.m High Torque 48mm length Nema 17 Hybrid Stepper Motor with CE 4
Gearbox
【42SHD0435】1.8 Degree 12V 400mN.m High Torque 48mm length Nema 17 Hybrid Stepper Motor with CE 5
Shaft
Please click the button below to tell us your requirements and get a customized quote.
Get a Quote
