【42SHD0440】NEMA 17 CNC Kit 1.8 Degree Steppe Motor with 400mN.m Torque 12V DC 42x48mm Size
【42SHD0440】NEMA 17 CNC Kit 1.8 Degree Steppe Motor with 400mN.m Torque 12V DC 42x48mm Size
【42SHD0440】NEMA 17 CNC Kit 1.8 Degree Steppe Motor with 400mN.m Torque 12V DC 42x48mm Size
【42SHD0440】NEMA 17 CNC Kit 1.8 Degree Steppe Motor with 400mN.m Torque 12V DC 42x48mm Size
【42SHD0440】NEMA 17 CNC Kit 1.8 Degree Steppe Motor with 400mN.m Torque 12V DC 42x48mm Size
【42SHD0440】NEMA 17 CNC Kit 1.8 Degree Steppe Motor with 400mN.m Torque 12V DC 42x48mm Size
【42SHD0440】NEMA 17 CNC Kit 1.8 Degree Steppe Motor with 400mN.m Torque 12V DC 42x48mm Size

【42SHD0440】NEMA 17 CNC Kit 1.8 Degree Steppe Motor with 400mN.m Torque 12V DC 42x48mm Size

Product Details

Place of Origin: CHINA

Brand Name: Casun

Certification: CE,ROHS,ISO

Model Number: 42SHD0440-26B

Payment & Shipping Terms

Minimum Order Quantity: 1PC

Price: $3.14-$5

Packaging Details: Carton:36x29x14cm

Delivery Time: 7-15 days

Payment Terms: D/A, T/T, L/C, D/P

Supply Ability: 40000+PCS+Month

Get Best Price

Product Details

Product Description
Product Details
Highlight:
Step Angel:
1.8°
Holding Torque:
400mN.m
Current:
0.4A
Motor Length:
48mm
Shaft:
Milling Flat Shaft 26mm Length
Customized:
The Motor Can Be Designed &manufactured With Customized Request.
Step Angel:
1.8°
Holding Torque:
400mN.m
Current:
0.4A
Motor Length:
48mm
Shaft:
Milling Flat Shaft 26mm Length
Customized:
The Motor Can Be Designed &manufactured With Customized Request.
Product Description

NEMA 17 motors are generally widely supplied and supported because they are one of the standard sizes commonly found on the market.

Printers, Engraving tools, Robotics, and more



Features:

  • Bipolar or unipolar versions available

  • To offer the best solution, our engineers will contact you within 48 hours

  • Wanted dealers! !

  • Professional drivetrain solution specialist

  • Ten-year warranty and secure shopping





Motor Specifications



Step Angel

1.8 °

Fram Size

42 mm

Number of Phase

2 Phase

Rated Current

0.4 A

Holding Torque

400 mN.m

Resistance

30 ohm

Inductance

37 mH

Rotor Inertia

72 g-cm²

Motor weight

0.38 kg

Number of leads

4

Connection

Bipolar

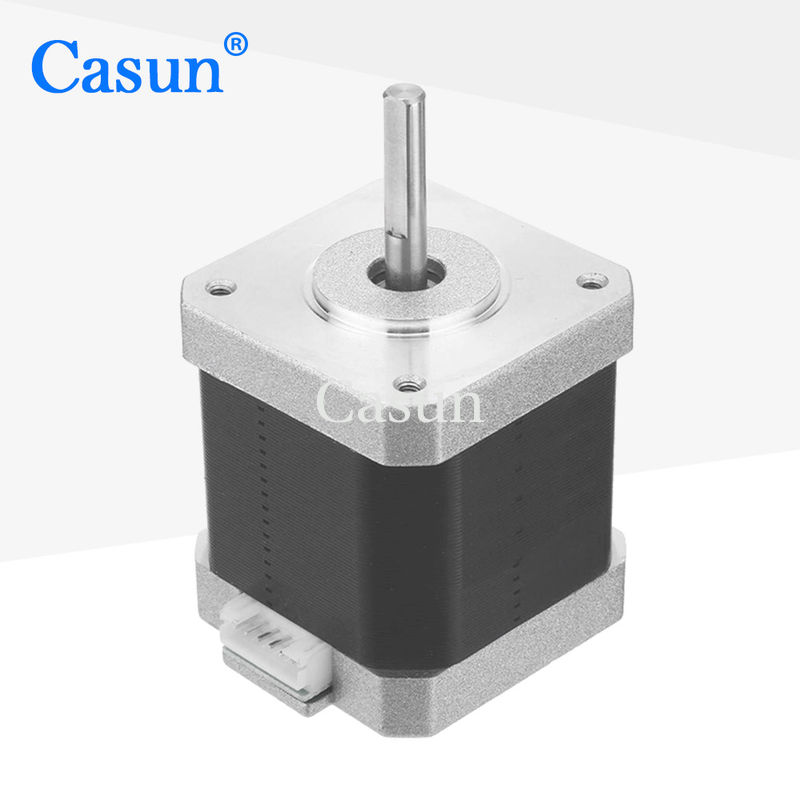

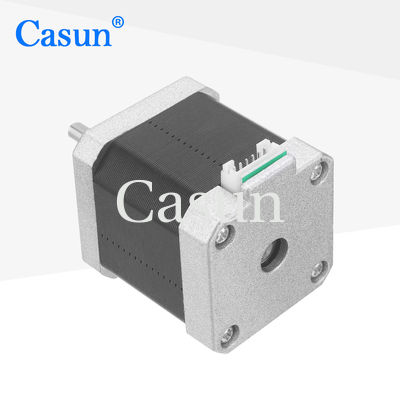

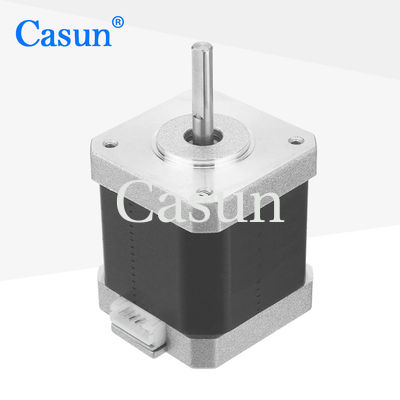

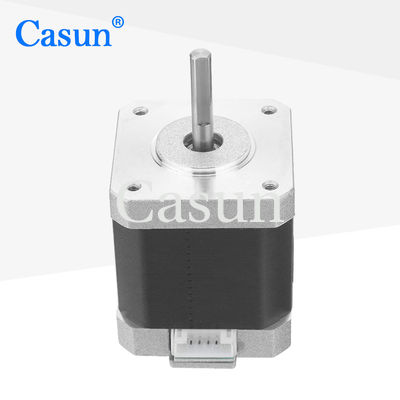

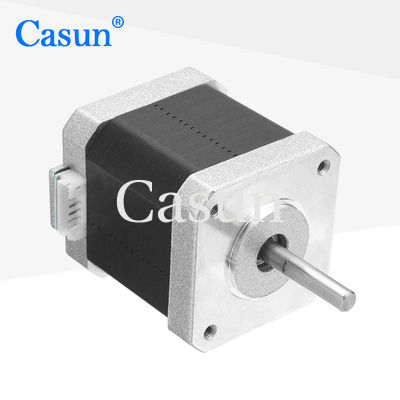

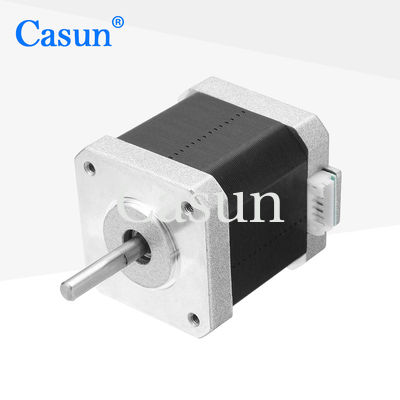

Appearance

【42SHD0440】NEMA 17 CNC Kit 1.8 Degree Steppe Motor with 400mN.m Torque 12V DC 42x48mm Size 0

Dimensions

【42SHD0440】NEMA 17 CNC Kit 1.8 Degree Steppe Motor with 400mN.m Torque 12V DC 42x48mm Size 1


Operating Specifications

Step Angle: 1.8°

Maximum  Temperature :80°C maximum

Ambient Temperature: -20 °C to 50°C

Storage Temperature -20: °C to 100°C

Humidity Range (%) :85% or less, non-condensing

Magnet Wire Insulation :Class B 130 deg C

Insulation Resistance :100M Ohm at 500 VDC

Dielectric Strength :500 VDC for 1 min







Torque Curves













Submodels

Model Holding Torque Step Angle Motor Length Type of Shaft Rated Current
42SHD4950 0.13N.m 1.8° 20mm D Shaft-20mm 1.0A
42SHD4003 0.26N.m 1.8° 34mm D Shaft-20mm 0.4A
42SHD0261 0.45N.m 1.8° 40mm D Shaft-20mm 1.68A
42SHD4425 0.59N.m 1.8° 48mm D Shaft-24mm 2.0A
42SHD4813 0.8N.m 1.8° 60mm D Shaft-24mm 2.1A





Download

If our standard motor cannot meet your needs,

we can customize the motor according to your needs


Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:

Encoder

Brake

Gearbox

Shaft
【42SHD0440】NEMA 17 CNC Kit 1.8 Degree Steppe Motor with 400mN.m Torque 12V DC 42x48mm Size 2 【42SHD0440】NEMA 17 CNC Kit 1.8 Degree Steppe Motor with 400mN.m Torque 12V DC 42x48mm Size 3 【42SHD0440】NEMA 17 CNC Kit 1.8 Degree Steppe Motor with 400mN.m Torque 12V DC 42x48mm Size 4 【42SHD0440】NEMA 17 CNC Kit 1.8 Degree Steppe Motor with 400mN.m Torque 12V DC 42x48mm Size 5



Please click the "Get a quote" button below to tell us your requirements.
