【42SHD0438】1.8 deg 54Ncm (76.3oz.in) 1.68A 2.77V 42x42x48mm 4 wires Stepper Motor Nema 17 Bipolar

【42SHD0438】1.8 deg 54Ncm (76.3oz.in) 1.68A 2.77V 42x42x48mm 4 wires Stepper Motor Nema 17 Bipolar

  • Step Angel
    1.8°
  • Holding Torque
    540mN.m
  • Current
    1.68A
  • Motor Length
    48mm
  • Shaft
    Milling Flat Shaft 30mm Length
  • Place of Origin
    CHINA
  • Brand Name
    Casun
  • Certification
    CE,ROSH,ISO
  • Model Number
    42SHD0438-30B
  • Minimum Order Quantity
    1PC
  • Price
    $3.14-$5
  • Packaging Details
    Carton:36x29x14cm
  • Delivery Time
    7-15 days
  • Payment Terms
    D/A, T/T, L/C, D/P
  • Supply Ability
    40000+PCS+Month

【42SHD0438】1.8 deg 54Ncm (76.3oz.in) 1.68A 2.77V 42x42x48mm 4 wires Stepper Motor Nema 17 Bipolar

The 42mm Hybrid Stepper Motor Series offers powerful holding torque in a variety of sizes.

Use with a microstepping driver to reduce vibration and achieve higher step resolution.

Choose a baseline version or request your own customized configuration.



Features:

  • Bipolar or unipolar versions available

  • For high-tech industry and electronic industry equipment

  • Available in single or double shaft versions

  • Professional drivetrain solution specialist

  • Established in China for 12 years and has served more than 800 customers

Appearance

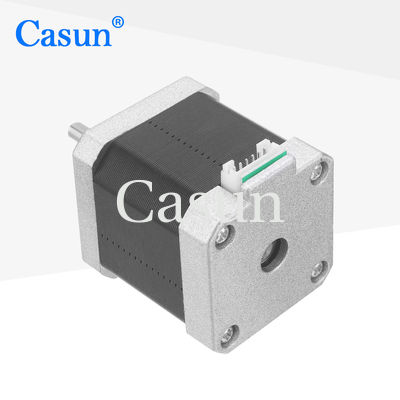

【42SHD0438】1.8 deg 54Ncm (76.3oz.in) 1.68A 2.77V 42x42x48mm 4 wires Stepper Motor Nema 17 Bipolar 0

Dimensions

【42SHD0438】1.8 deg 54Ncm (76.3oz.in) 1.68A 2.77V 42x42x48mm 4 wires Stepper Motor Nema 17 Bipolar 1

Motor Specifications



Step Angel

1.8 °

Fram Size

42 mm

Number of Phase

2 Phase

Rated Current

1.68 A

Holding Torque

540 mN.m

Resistance

1.65 ohm

Inductance

2.8 mH

Rotor Inertia

72 g-cm²

Motor weight

0.38 kg

Number of leads

4

Connection

Bipolar

Operating Specifications

Step Angle: 1.8°

Maximum  Temperature :80°C maximum

Ambient Temperature: -20 °C to 50°C

Storage Temperature -20: °C to 100°C

Humidity Range (%) :85% or less, non-condensing

Magnet Wire Insulation :Class B 130 deg C

Insulation Resistance :100M Ohm at 500 VDC

Dielectric Strength :500 VDC for 1 min







Torque Curves













Submodels

Model Holding Torque Step Angle Motor Length Type of Shaft Rated Current
42SHD4950 0.13N.m 1.8° 20mm D Shaft-20mm 1.0A
42SHD4003 0.26N.m 1.8° 34mm D Shaft-20mm 0.4A
42SHD0261 0.45N.m 1.8° 40mm D Shaft-20mm 1.68A
42SHD4425 0.59N.m 1.8° 48mm D Shaft-24mm 2.0A
42SHD4813 0.8N.m 1.8° 60mm D Shaft-24mm 2.1A





Download

If our standard motor cannot meet your needs,

we can customize the motor according to your needs


Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:

Encoder

Brake

Gearbox

Shaft

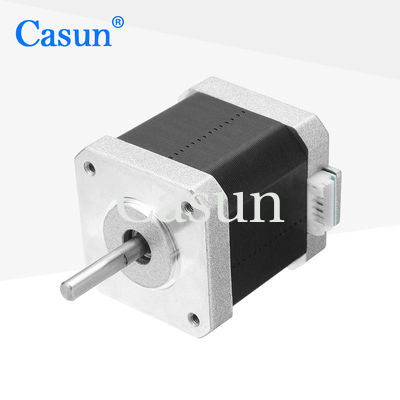

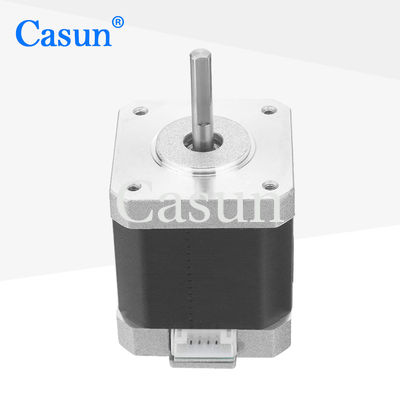

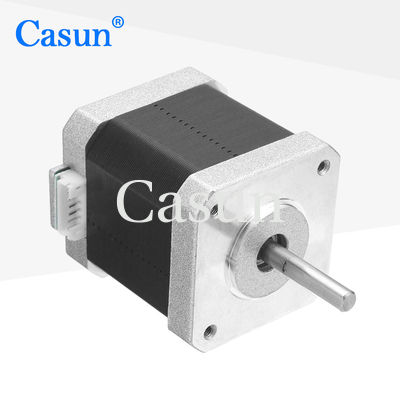

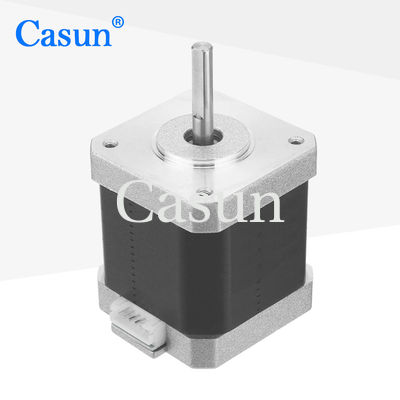

【42SHD0438】1.8 deg 54Ncm (76.3oz.in) 1.68A 2.77V 42x42x48mm 4 wires Stepper Motor Nema 17 Bipolar 2 【42SHD0438】1.8 deg 54Ncm (76.3oz.in) 1.68A 2.77V 42x42x48mm 4 wires Stepper Motor Nema 17 Bipolar 3 【42SHD0438】1.8 deg 54Ncm (76.3oz.in) 1.68A 2.77V 42x42x48mm 4 wires Stepper Motor Nema 17 Bipolar 4 【42SHD0438】1.8 deg 54Ncm (76.3oz.in) 1.68A 2.77V 42x42x48mm 4 wires Stepper Motor Nema 17 Bipolar 5



Please click the "Get a quote" button below to tell us your requirements.
