Home > products > Hybrid Stepper Motor > 【42SHD0430】42 Stepper Motor 1.0A two-phase High torque CNC for 3D printer parts Nema 17 hybrid motor

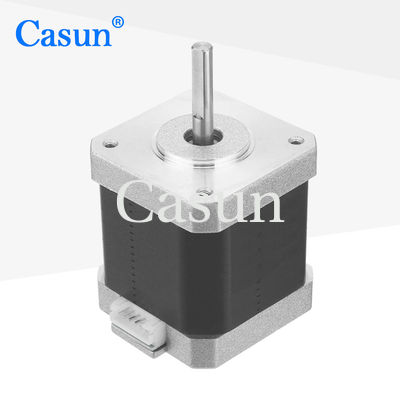

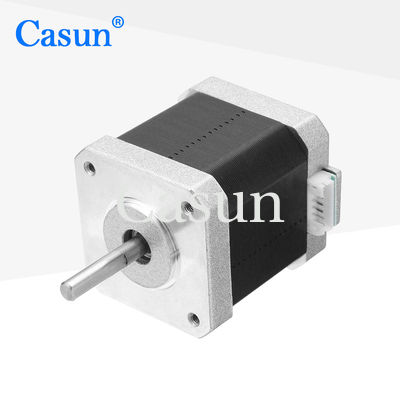

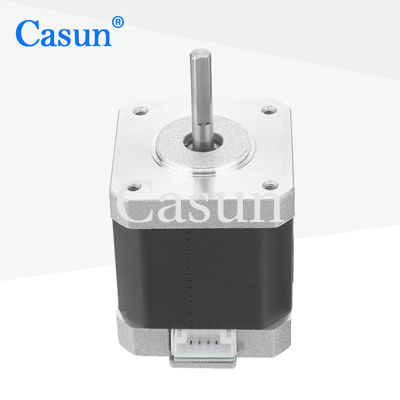

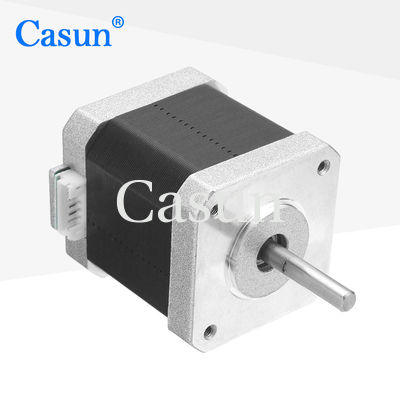

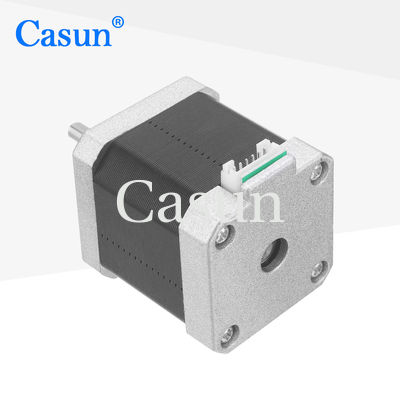

【42SHD0430】42 Stepper Motor 1.0A two-phase High torque CNC for 3D printer parts Nema 17 hybrid motor
【42SHD0430】42 Stepper Motor 1.0A two-phase High torque CNC for 3D printer parts Nema 17 hybrid motor
【42SHD0430】42 Stepper Motor 1.0A two-phase High torque CNC for 3D printer parts Nema 17 hybrid motor
【42SHD0430】42 Stepper Motor 1.0A two-phase High torque CNC for 3D printer parts Nema 17 hybrid motor
【42SHD0430】42 Stepper Motor 1.0A two-phase High torque CNC for 3D printer parts Nema 17 hybrid motor
【42SHD0430】42 Stepper Motor 1.0A two-phase High torque CNC for 3D printer parts Nema 17 hybrid motor

【42SHD0430】42 Stepper Motor 1.0A two-phase High torque CNC for 3D printer parts Nema 17 hybrid motor

Product Details

Place of Origin: CHINA

Brand Name: Casun

Certification: CE,ROHS,ISO

Model Number: 42SHD0430-24B

Payment & Shipping Terms

Minimum Order Quantity: 1PC

Price: $3.14-$5

Packaging Details: Carton:36x29x14cm

Delivery Time: 7-15 days

Payment Terms: D/A, T/T, L/C, D/P

Supply Ability: 40000+PCS+Month

Get Best Price

Product Details

Product Description
Product Details
High Light:
Step Angel:
1.8°
Holding Torque:
500mN.m
Current:
1.0A
Motor Length:
48mm
Shaft:
Milling Flat Shaft 24mm Length
Customized:
The Motor Can Be Designed &manufactured With Customized Request.
Step Angel:
1.8°
Holding Torque:
500mN.m
Current:
1.0A
Motor Length:
48mm
Shaft:
Milling Flat Shaft 24mm Length
Customized:
The Motor Can Be Designed &manufactured With Customized Request.
Product Description

The 42mm frame stepper motor usually has a high rotational speed capability and can complete rapid acceleration and deceleration in a short period of time.

Printers, Engraving machines, 3D printers, and Robots



Features:

  • Superior accuracy and torque

  • Each model of stepper motor can be suitable for different scenarios

  • Recognise contract manufacturing.

  • Professional drivetrain solution specialist

  • Established in China for 12 years and has served more than 800 customers





Motor Specifications



Step Angel

1.8 °

Fram Size

42 mm

Number of Phase

2 Phase

Rated Current

1.0 A

Holding Torque

500 mN.m

Resistance

5.6 ohm

Inductance

12.4 mH

Rotor Inertia

72 g-cm²

Motor weight

0.38 kg

Number of leads

4

Connection

Bipolar

Appearance

【42SHD0430】42 Stepper Motor 1.0A two-phase High torque CNC for 3D printer parts Nema 17 hybrid motor 0

Dimensions

【42SHD0430】42 Stepper Motor 1.0A two-phase High torque CNC for 3D printer parts Nema 17 hybrid motor 1


Operating Specifications

Step Angle: 1.8°

Maximum  Temperature :80°C maximum

Ambient Temperature: -20 °C to 50°C

Storage Temperature -20: °C to 100°C

Humidity Range (%) :85% or less, non-condensing

Magnet Wire Insulation :Class B 130 deg C

Insulation Resistance :100M Ohm at 500 VDC

Dielectric Strength :500 VDC for 1 min







Torque Curves













Submodels

Model Holding Torque Step Angle Motor Length Type of Shaft Rated Current
42SHD4950 0.13N.m 1.8° 20mm D Shaft-20mm 1.0A
42SHD4003 0.26N.m 1.8° 34mm D Shaft-20mm 0.4A
42SHD0261 0.45N.m 1.8° 40mm D Shaft-20mm 1.68A
42SHD4425 0.59N.m 1.8° 48mm D Shaft-24mm 2.0A
42SHD4813 0.8N.m 1.8° 60mm D Shaft-24mm 2.1A





Download

If our standard motor cannot meet your needs,

we can customize the motor according to your needs


Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:

Encoder

Brake

Gearbox

Shaft
【42SHD0430】42 Stepper Motor 1.0A two-phase High torque CNC for 3D printer parts Nema 17 hybrid motor 2 【42SHD0430】42 Stepper Motor 1.0A two-phase High torque CNC for 3D printer parts Nema 17 hybrid motor 3 【42SHD0430】42 Stepper Motor 1.0A two-phase High torque CNC for 3D printer parts Nema 17 hybrid motor 4 【42SHD0430】42 Stepper Motor 1.0A two-phase High torque CNC for 3D printer parts Nema 17 hybrid motor 5



Please click the "Get a quote" button below to tell us your requirements.
