Home > products > Hybrid Stepper Motor > 【42SHD0423】42x42x48mm Nema 17 Stepping Motor 1.8 Degree 2 Phase 1.5A High Quality for 3D Printer Accessories

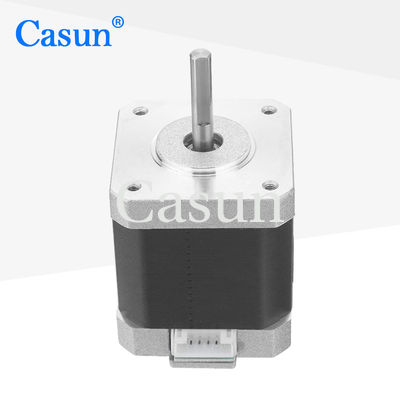

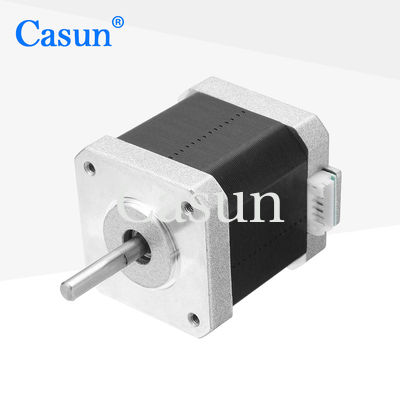

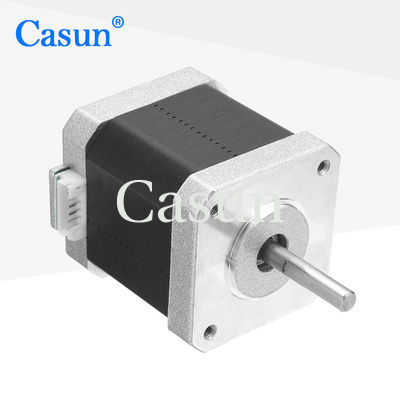

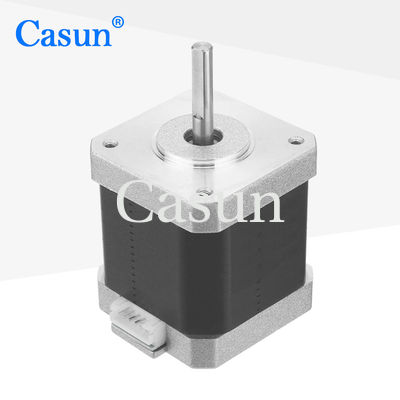

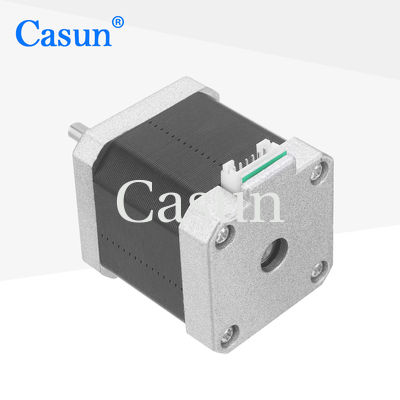

【42SHD0423】42x42x48mm Nema 17 Stepping Motor 1.8 Degree 2 Phase 1.5A High Quality for 3D Printer Accessories
【42SHD0423】42x42x48mm Nema 17 Stepping Motor 1.8 Degree 2 Phase 1.5A High Quality for 3D Printer Accessories
【42SHD0423】42x42x48mm Nema 17 Stepping Motor 1.8 Degree 2 Phase 1.5A High Quality for 3D Printer Accessories
【42SHD0423】42x42x48mm Nema 17 Stepping Motor 1.8 Degree 2 Phase 1.5A High Quality for 3D Printer Accessories
【42SHD0423】42x42x48mm Nema 17 Stepping Motor 1.8 Degree 2 Phase 1.5A High Quality for 3D Printer Accessories
【42SHD0423】42x42x48mm Nema 17 Stepping Motor 1.8 Degree 2 Phase 1.5A High Quality for 3D Printer Accessories
【42SHD0423】42x42x48mm Nema 17 Stepping Motor 1.8 Degree 2 Phase 1.5A High Quality for 3D Printer Accessories

【42SHD0423】42x42x48mm Nema 17 Stepping Motor 1.8 Degree 2 Phase 1.5A High Quality for 3D Printer Accessories

Product Details

Place of Origin: CHINA

Brand Name: Casun

Certification: CE,ROHS,ISO

Model Number: 42SHD0423-22B

Payment & Shipping Terms

Minimum Order Quantity: 1PC

Price: $3.14-$5

Packaging Details: Carton:36x29x14cm

Delivery Time: 7-15 days

Payment Terms: D/A, T/T, L/C, D/P

Supply Ability: 40000+PCS+Month

Get Best Price

Product Details

Product Description
Product Details
High Light:
Step Angel:
1.8°
Holding Torque:
550mN.m
Current:
1.5A
Motor Length:
48mm
Shaft:
Milling Flat Shaft 22mm Length
Customized:
The Motor Can Be Designed &manufactured With Customized Request.
Step Angel:
1.8°
Holding Torque:
550mN.m
Current:
1.5A
Motor Length:
48mm
Shaft:
Milling Flat Shaft 22mm Length
Customized:
The Motor Can Be Designed &manufactured With Customized Request.
Product Description

The 42mm Hybrid Stepper Motor have good torque characteristics and can provide stable output torque even at low speeds and high loads.

Robotics, 3D printers, Engraving equipment, and Printers.



Features:

  • Accept contract manufacturing

  • For high-tech industry and electronic industry equipment

  • Every stepper motor model has use in a variety of situations

  • Seasoned expert in drivetrain solutions

  • The best solution will be offered by our engineers in contact with you within 48 hours





Motor Specifications



Step Angel

1.8 °

Fram Size

42 mm

Number of Phase

2 Phase

Rated Current

1.5 A

Holding Torque

550 mN.m

Resistance

2.4 ohm

Inductance

4.0 mH

Rotor Inertia

72 g-cm²

Motor weight

0.38 kg

Number of leads

4

Connection

Bipolar

Appearance

【42SHD0423】42x42x48mm Nema 17 Stepping Motor 1.8 Degree 2 Phase 1.5A High Quality for 3D Printer Accessories 0

Dimensions

【42SHD0423】42x42x48mm Nema 17 Stepping Motor 1.8 Degree 2 Phase 1.5A High Quality for 3D Printer Accessories 1


Operating Specifications

Step Angle: 1.8°

Maximum  Temperature :80°C maximum

Ambient Temperature: -20 °C to 50°C

Storage Temperature -20: °C to 100°C

Humidity Range (%) :85% or less, non-condensing

Magnet Wire Insulation :Class B 130 deg C

Insulation Resistance :100M Ohm at 500 VDC

Dielectric Strength :500 VDC for 1 min







Torque Curves













Submodels

Model Holding Torque Step Angle Motor Length Type of Shaft Rated Current
42SHD4950 0.13N.m 1.8° 20mm D Shaft-20mm 1.0A
42SHD4003 0.26N.m 1.8° 34mm D Shaft-20mm 0.4A
42SHD0261 0.45N.m 1.8° 40mm D Shaft-20mm 1.68A
42SHD4425 0.59N.m 1.8° 48mm D Shaft-24mm 2.0A
42SHD4813 0.8N.m 1.8° 60mm D Shaft-24mm 2.1A





Download

If our standard motor cannot meet your needs,

we can customize the motor according to your needs


Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:

Encoder

Brake

Gearbox

Shaft
【42SHD0423】42x42x48mm Nema 17 Stepping Motor 1.8 Degree 2 Phase 1.5A High Quality for 3D Printer Accessories 2 【42SHD0423】42x42x48mm Nema 17 Stepping Motor 1.8 Degree 2 Phase 1.5A High Quality for 3D Printer Accessories 3 【42SHD0423】42x42x48mm Nema 17 Stepping Motor 1.8 Degree 2 Phase 1.5A High Quality for 3D Printer Accessories 4 【42SHD0423】42x42x48mm Nema 17 Stepping Motor 1.8 Degree 2 Phase 1.5A High Quality for 3D Printer Accessories 5



Please click the "Get a quote" button below to tell us your requirements.
