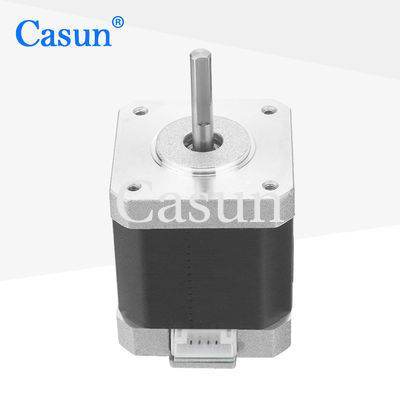

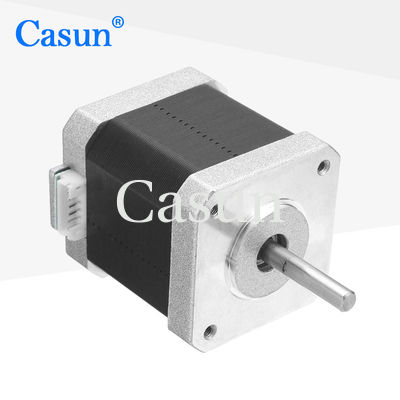

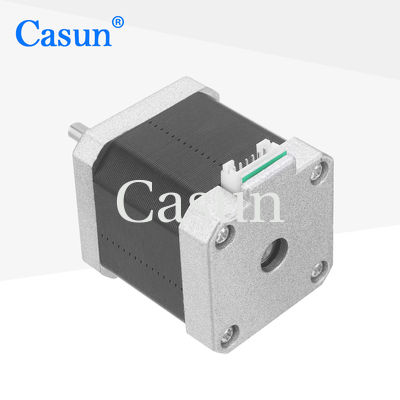

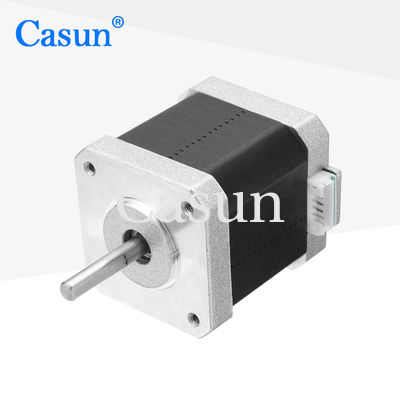

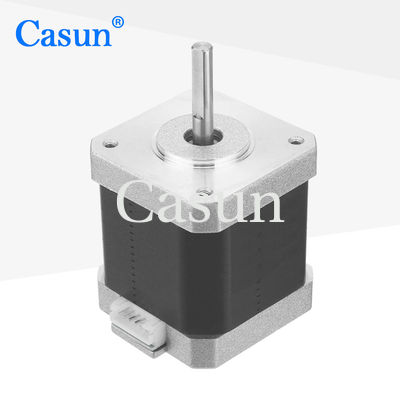

Casun 480mNm Two Phase Stepper Motor 48mm NEMA 17 1.8 Degree

name

Casun 480mNm Two Phase Stepper Motor 48mm NEMA 17 1.8 Degree

Brand Name: Casun
Model Number: 42SHD0425-24B
MOQ: 1PC
Price: $3.14-$5
Payment Terms: D/A, T/T, L/C, D/P
Supply Ability: 40000+PCS+Month
Detail Information
Product Description
Detail Information
Place of Origin:
CHINA
Certification:
CE,ROSH,ISO
Step Angel:
1.8°
Holding Torque:
480mN.m
Current:
1.5A
Motor Length:
48mm
Shaft:
Milling Flat Shaft 24mm Length
Customized:
The Motor Can Be Designed &manufactured With Customized Request.
Packaging Details:
Carton:36x29x14cm
Highlight:

480mNm Two Phase Stepper Motor

,

48mm NEMA 17 1.8 Degree

,

Casun Two Phase Stepper Motor

Product Description
Casun 480mNm Two Phase Stepper Motor 48mm NEMA 17 1.8 Degree
The 42mm Hybrid Stepper Motor Series provides strong holding torque in a range of sizes. When used with a microstepping driver, it reduces vibration and produces greater step resolution. Choose from standard versions or request custom configurations to meet your specific requirements.
Key Features
  • Available in unipolar or bipolar versions
  • Designed for electronic industrial equipment and high-tech industry applications
  • Available with single or double shaft configurations
  • Expert manufacturing research and development
  • 12-year history in China with over 800 clients served
Motor Specifications
Step Angle1.8°
Frame Size42 mm
Number of Phase2 Phase
Rated Current1.5 A
Holding Torque480 mN.m
Resistance2.0 ohm
Inductance2.8 mH
Rotor Inertia72 g-cm²
Motor Weight0.38 kg
Number of Leads4
ConnectionBipolar
Appearance & Dimensions
Casun 480mNm Two Phase Stepper Motor 48mm NEMA 17 1.8 Degree 0
Casun 480mNm Two Phase Stepper Motor 48mm NEMA 17 1.8 Degree 1
Operating Specifications
Step Angle1.8°
Maximum Temperature80°C maximum
Ambient Temperature-20°C to 50°C
Storage Temperature-20°C to 100°C
Humidity Range85% or less, non-condensing
Magnet Wire InsulationClass B 130°C
Insulation Resistance100M Ohm at 500 VDC
Dielectric Strength500 VDC for 1 min
Available Models
Model Holding Torque Step Angle Motor Length Type of Shaft Rated Current
42SHD4950 0.13N.m 1.8° 20mm D Shaft-20mm 1.0A
42SHD4003 0.26N.m 1.8° 34mm D Shaft-20mm 0.4A
42SHD0261 0.45N.m 1.8° 40mm D Shaft-20mm 1.68A
42SHD4425 0.59N.m 1.8° 48mm D Shaft-24mm 2.0A
42SHD4813 0.8N.m 1.8° 60mm D Shaft-24mm 2.1A
Customization Options
If our standard motor cannot meet your needs, we can customize the motor according to your requirements. Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, and more.
Available Options
Casun 480mNm Two Phase Stepper Motor 48mm NEMA 17 1.8 Degree 2
Encoder
Casun 480mNm Two Phase Stepper Motor 48mm NEMA 17 1.8 Degree 3
Brake
Casun 480mNm Two Phase Stepper Motor 48mm NEMA 17 1.8 Degree 4
Gearbox
Casun 480mNm Two Phase Stepper Motor 48mm NEMA 17 1.8 Degree 5
Shaft
Please click the button below to tell us your requirements and get a customized quote.
