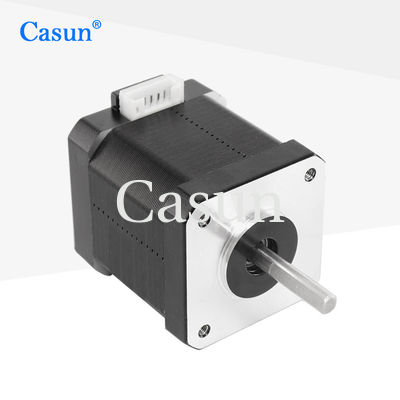

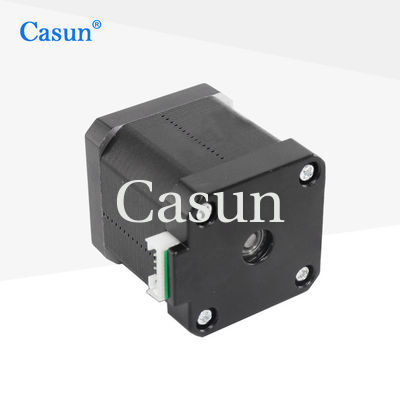

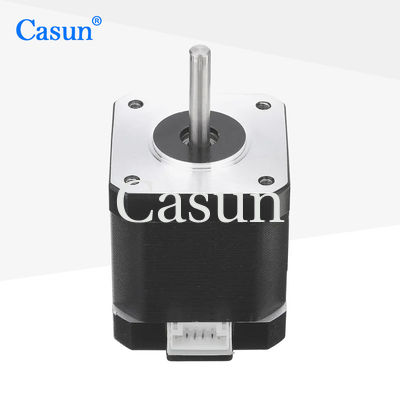

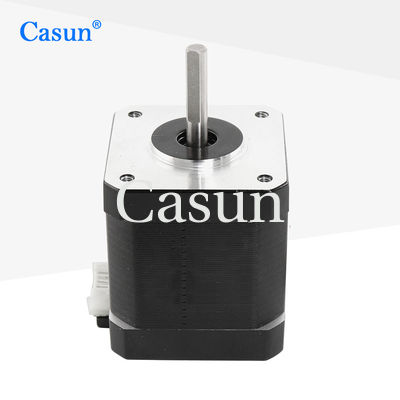

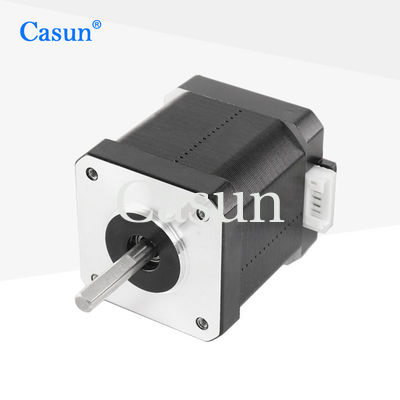

Casun 2 Phase Stepping Motor XYZ Axis NEMA17 0.52Nm

Casun 2 Phase Stepping Motor XYZ Axis NEMA17 0.52Nm

Brand Name:	Casun
Model Number:	42SHD0450-24BH
MOQ:	1PC
Price:	$3.14-$5
Payment Terms:	D/A, T/T, L/C, D/P
Supply Ability:	40000+PCS+Month

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

CE,ROSH,ISO

Step Angel:

1.8°

Holding Torque:

520mN.m

Current:

1.8A

Motor Length:

48mm

Shaft:

Milling Flat Shaft 24mm Length

Customized:

The Motor Can Be Designed &manufactured With Customized Request.

Customized:

The Motor Can Be Designed &manufactured With Customized Request.

Packaging Details:

Carton:36x29x14cm

Highlight:

XYZ Axis NEMA17 Stepper Motor

NEMA17 Stepper Motor 0.52Nm

Casun 2 Phase Stepping Motor

Product Description

Casun 2 Phase Stepping Motor XYZ Axis NEMA17 0.52Nm

In a range of sizes, the 42mm Hybrid Stepper Motor Series provides strong holding torque. To lessen vibration and achieve a greater step resolution, use with a microstepping driver. Select a standard version or ask for a specially configured version.

Key Features

Versions in unipolar or bipolar are offered
For electronic industrial equipment and high-tech industry equipment
Available in variations with a single or double shaft
High accuracy and torque
With a 12-year history in China and more than 800 clients served

Motor Specifications

Step Angle	1.8°
Frame Size	42 mm
Number of Phase	2 Phase
Rated Current	1.5 A
Holding Torque	520 mN.m
Resistance	1.8 ohm
Inductance	3.2 mH
Rotor Inertia	72 g-cm²
Motor Weight	0.4 kg
Number of Leads	4
Connection	Bipolar

Operating Specifications

Step Angle: 1.8°

Maximum Temperature: 80°C maximum

Ambient Temperature: -20°C to 50°C

Storage Temperature: -20°C to 100°C

Humidity Range: 85% or less, non-condensing

Magnet Wire Insulation: Class B 130°C

Insulation Resistance: 100M Ohm at 500 VDC

Dielectric Strength: 500 VDC for 1 min

Available Models

Model	Holding Torque	Step Angle	Motor Length	Type of Shaft	Rated Current
42SHD4950	0.13N.m	1.8°	20mm	D Shaft-20mm	1.0A
42SHD4003	0.26N.m	1.8°	34mm	D Shaft-20mm	0.4A
42SHD0261	0.45N.m	1.8°	40mm	D Shaft-20mm	1.68A
42SHD4425	0.59N.m	1.8°	48mm	D Shaft-24mm	2.0A
42SHD4813	0.8N.m	1.8°	60mm	D Shaft-24mm	2.1A

Customization Options

If our standard motor cannot meet your needs, we can customize the motor according to your requirements. Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Encoder

Brake

Gearbox

Shaft
