550mN.M 2 Phase 3.0V DC Nema 17 Hybrid Stepper Motor 42x42mm

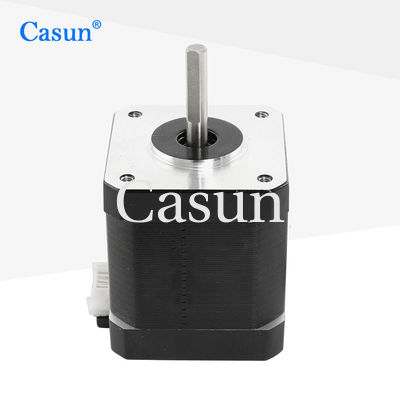

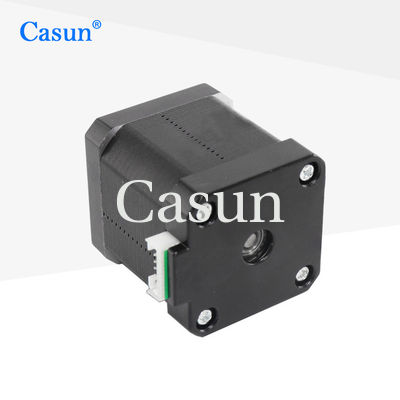

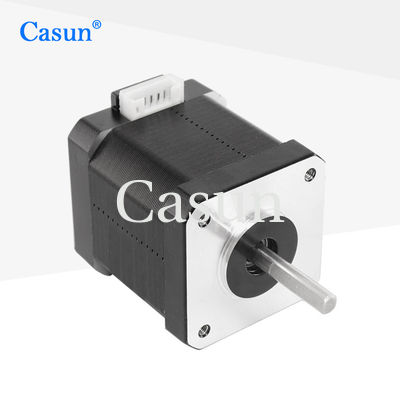

  • 550mN.M 2 Phase 3.0V DC Nema 17 Hybrid Stepper Motor 42x42mm
  • 550mN.M 2 Phase 3.0V DC Nema 17 Hybrid Stepper Motor 42x42mm
  • 550mN.M 2 Phase 3.0V DC Nema 17 Hybrid Stepper Motor 42x42mm

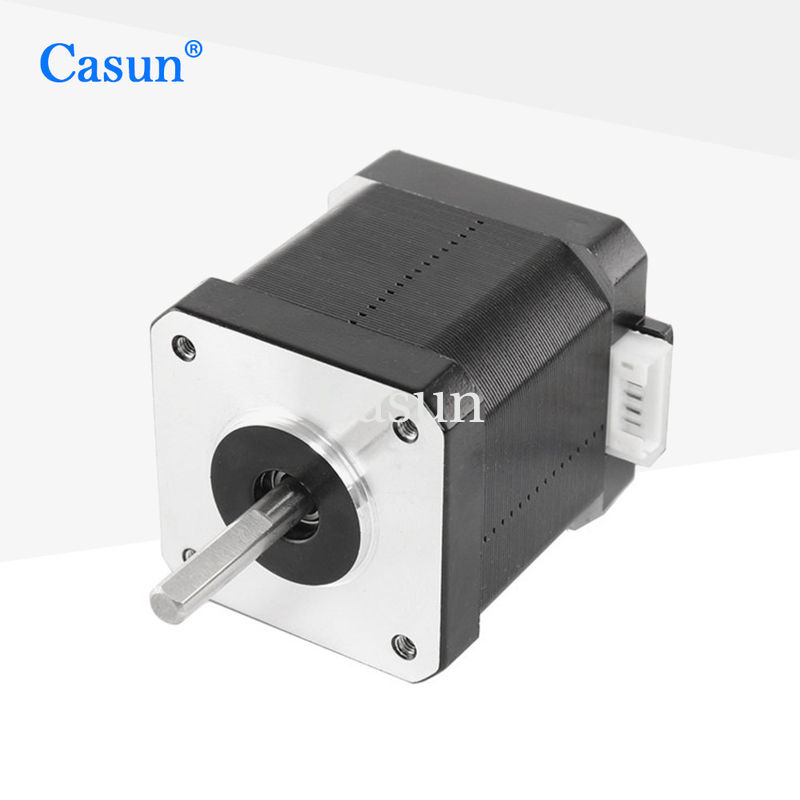

  • 550mN.M 2 Phase 3.0V DC Nema 17 Hybrid Stepper Motor 42x42mm

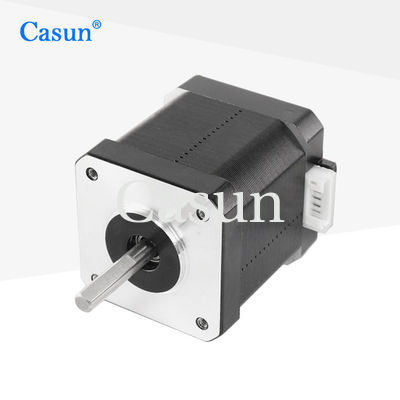

  • 550mN.M 2 Phase 3.0V DC Nema 17 Hybrid Stepper Motor 42x42mm

550mN.M 2 Phase 3.0V DC Nema 17 Hybrid Stepper Motor 42x42mm

Place of Origin CHINA
Brand Name Casun
Certification CE,ROSH,ISO
Model Number 42SHD0437-24BH
Product Details
Step Angel:
1.8°
Holding Torque:
550mN.m
Current:
1.68A
Motor Length:
48mm
Shaft:
Milling Flat Shaft 24mm Length
High Light:

2 Phase 3.0V DC Nema 17

,

Hybrid Stepper Motor 42x42mm

,

550mN.M Nema 17

Payment & Shipping Terms
Minimum Order Quantity
1PC
Price
$3.14-$5
Packaging Details
Carton:36x29x14cm
Delivery Time
7-15 days
Payment Terms
D/A, T/T, L/C, D/P
Supply Ability
40000+PCS+Month
Product Description

The 42mm Hybrid Stepper Motor Series comes in a range of sizes and provides strong holding torque.

Use in conjunction with a microstepping driver to lower vibration and increase step resolution.

Select a base model or ask for a configuration that is unique to you.



Features:

  • Versions in unipolar or bipolar are offered

  • For electronic industrial equipment and high-tech industry equipment

  • Available in variations with a single or double shaft

  • "Multiple international certifications" are required

  • Expert manufacturing research and development





Motor Specifications



Step Angel

1.8 °

Fram Size

42 mm

Number of Phase

2 Phase

Rated Current

1.68 A

Holding Torque

550 mN.m

Resistance

1.8 ohm

Inductance

4.5 mH

Rotor Inertia

72 g-cm²

Motor weight

0.38 kg

Number of leads

4

Connection

Bipolar

Appearance

550mN.M 2 Phase 3.0V DC Nema 17 Hybrid Stepper Motor 42x42mm 0

Dimensions

550mN.M 2 Phase 3.0V DC Nema 17 Hybrid Stepper Motor 42x42mm 1


Operating Specifications

Step Angle: 1.8°

Maximum  Temperature :80°C maximum

Ambient Temperature: -20 °C to 50°C

Storage Temperature -20: °C to 100°C

Humidity Range (%) :85% or less, non-condensing

Magnet Wire Insulation :Class B 130 deg C

Insulation Resistance :100M Ohm at 500 VDC

Dielectric Strength :500 VDC for 1 min







Torque Curves













Submodels

Model Holding Torque Step Angle Motor Length Type of Shaft Rated Current
42SHD4950 0.13N.m 1.8° 20mm D Shaft-20mm 1.0A
42SHD4003 0.26N.m 1.8° 34mm D Shaft-20mm 0.4A
42SHD0261 0.45N.m 1.8° 40mm D Shaft-20mm 1.68A
42SHD4425 0.59N.m 1.8° 48mm D Shaft-24mm 2.0A
42SHD4813 0.8N.m 1.8° 60mm D Shaft-24mm 2.1A





Download

If our standard motor cannot meet your needs,

we can customize the motor according to your needs


Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:

Encoder

Brake

Gearbox

Shaft

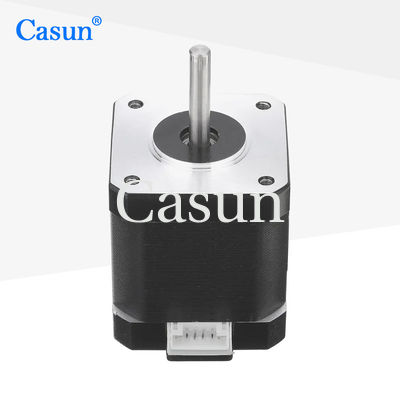

550mN.M 2 Phase 3.0V DC Nema 17 Hybrid Stepper Motor 42x42mm 2 550mN.M 2 Phase 3.0V DC Nema 17 Hybrid Stepper Motor 42x42mm 3 550mN.M 2 Phase 3.0V DC Nema 17 Hybrid Stepper Motor 42x42mm 4 550mN.M 2 Phase 3.0V DC Nema 17 Hybrid Stepper Motor 42x42mm 5



Please click the "Get a quote" button below to tell us your requirements.
