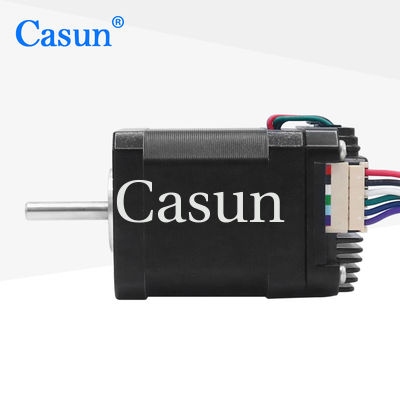

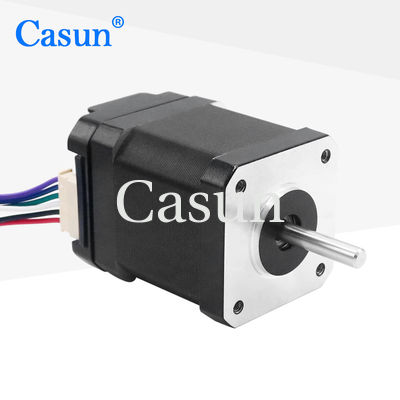

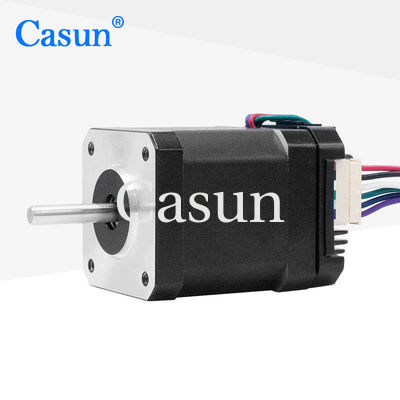

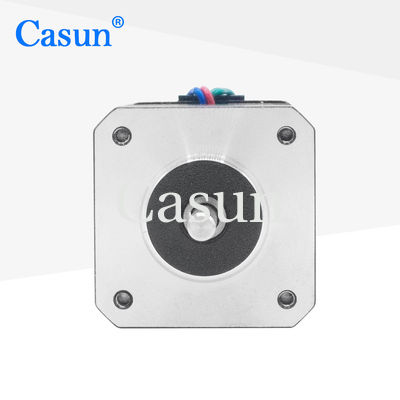

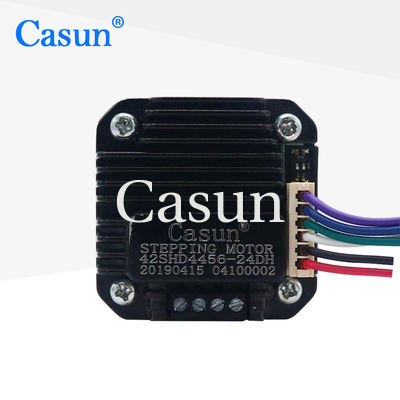

1.7A 48mm 550mN.M Nema 17 Stepper Motor 4 Wire Bipolar For CNC Machining
  • 1.7A 48mm 550mN.M Nema 17 Stepper Motor 4 Wire Bipolar For CNC Machining
  • 1.7A 48mm 550mN.M Nema 17 Stepper Motor 4 Wire Bipolar For CNC Machining
  • 1.7A 48mm 550mN.M Nema 17 Stepper Motor 4 Wire Bipolar For CNC Machining
  • 1.7A 48mm 550mN.M Nema 17 Stepper Motor 4 Wire Bipolar For CNC Machining
  • 1.7A 48mm 550mN.M Nema 17 Stepper Motor 4 Wire Bipolar For CNC Machining

1.7A 48mm 550mN.M Nema 17 Stepper Motor 4 Wire Bipolar For CNC Machining

Place of Origin CHINA
Brand Name Casun
Certification CE,ROSH,ISO
Model Number 42SHD4456-24DH
Product Details
Step Angel:
1.8°
Holding Torque:
550mN.m
Current:
1.7A
Motor Length:
48mm
Shaft:
Milling Flat Shaft 24mm Length
High Light:

nema 17 stepper motor 4 wire bipolar

,

550mN.M Nema 17 Stepper Motor

,

1.7A 48mm 550mN.M Nema 17

Payment & Shipping Terms
Minimum Order Quantity
1PC
Price
$3.14-$5
Packaging Details
Carton:36x29x14cm
Delivery Time
7-15 days
Payment Terms
D/A, T/T, L/C, D/P
Supply Ability
40000+PCS+Month
Product Description

【42SHD4456】1.8 degree 4 wire NEMA 17 stepping motor with a driver applied to 3D printer & CNC machining

The 42mm Hybrid Stepper Motor Series offers powerful holding torque in a variety of sizes.

Use with a microstepping driver to reduce vibration and achieve higher step resolution.

Choose a baseline version or request your own customized configuration.



Features:

  • Bipolar or unipolar versions available

  • For high-tech industry and electronic industry equipment

  • Available in single or double shaft versions

  • Established in China for 12 years and has served more than 800 customers.

  • Professional research and development manufacturing

Appearance

1.7A 48mm 550mN.M Nema 17 Stepper Motor 4 Wire Bipolar For CNC Machining 0

Dimensions

1.7A 48mm 550mN.M Nema 17 Stepper Motor 4 Wire Bipolar For CNC Machining 1

Motor Specifications



Step Angel

1.8 °

Fram Size

42 mm

Number of Phase

2 Phase

Rated Current

1.7 A

Holding Torque

550 mN.m

Resistance

2.2 ohm

Inductance

3.8 mH

Rotor Inertia

72 g-cm²

Motor weight

0.46 kg

Number of leads

4

Connection

Bipolar

Operating Specifications

Step Angle: 1.8°

Maximum  Temperature :80°C maximum

Ambient Temperature: -20 °C to 50°C

Storage Temperature -20: °C to 100°C

Humidity Range (%) :85% or less, non-condensing

Magnet Wire Insulation :Class B 130 deg C

Insulation Resistance :100M Ohm at 500 VDC

Dielectric Strength :500 VDC for 1 min







Torque Curves













Submodels

Model Holding Torque Step Angle Motor Length Type of Shaft Rated Current
42SHD4950 0.13N.m 1.8° 20mm D Shaft-20mm 1.0A
42SHD4003 0.26N.m 1.8° 34mm D Shaft-20mm 0.4A
42SHD0261 0.45N.m 1.8° 40mm D Shaft-20mm 1.68A
42SHD4425 0.59N.m 1.8° 48mm D Shaft-24mm 2.0A
42SHD4813 0.8N.m 1.8° 60mm D Shaft-24mm 2.1A





Download

If our standard motor cannot meet your needs,

we can customize the motor according to your needs


Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:

Encoder

Brake

Gearbox

Shaft

1.7A 48mm 550mN.M Nema 17 Stepper Motor 4 Wire Bipolar For CNC Machining 2 1.7A 48mm 550mN.M Nema 17 Stepper Motor 4 Wire Bipolar For CNC Machining 3 1.7A 48mm 550mN.M Nema 17 Stepper Motor 4 Wire Bipolar For CNC Machining 4 1.7A 48mm 550mN.M Nema 17 Stepper Motor 4 Wire Bipolar For CNC Machining 5
