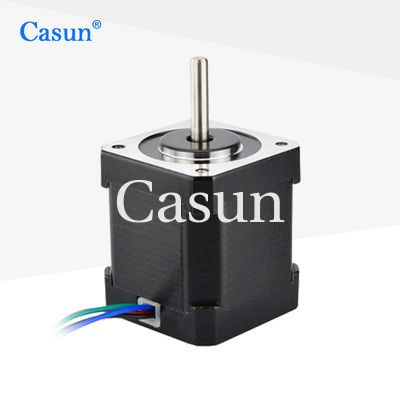

NEMA 17 42x42mm 3D Printer Stepper Motor 1.8A 0.52Nm Torque
  • NEMA 17 42x42mm 3D Printer Stepper Motor 1.8A 0.52Nm Torque
  • NEMA 17 42x42mm 3D Printer Stepper Motor 1.8A 0.52Nm Torque
  • NEMA 17 42x42mm 3D Printer Stepper Motor 1.8A 0.52Nm Torque
  • NEMA 17 42x42mm 3D Printer Stepper Motor 1.8A 0.52Nm Torque
  • NEMA 17 42x42mm 3D Printer Stepper Motor 1.8A 0.52Nm Torque

NEMA 17 42x42mm 3D Printer Stepper Motor 1.8A 0.52Nm Torque

Place of Origin China
Brand Name Casun
Certification CE,ROHS,ISO
Model Number 42SHD0411-24B2H
Product Details
Step Angel:
1.8°
Current:
1.8A
Rated Voltage:
3.24V
Holding Torque:
520mN.m
Motor Length:
48mm
Shaft:
Milling Flat Shaft 24mm Length
Weight:
0.4kg
High Light:

NEMA 17 42x42mm

,

42x42mm 3D Printer Stepper Motor

,

3D Printer Stepper Motor 1.8A 0.52Nm

Payment & Shipping Terms
Minimum Order Quantity
1PC
Price
$3.14-$5
Packaging Details
Carton:36x29x14cm
Delivery Time
7-15 days
Payment Terms
D/A, T/T, L/C, D/P
Supply Ability
40000+PCS+Month
Product Description

NEMA 17 42*42*48mm 2 Phase 1.8° Stepper Motor 1.8A 0.52Nm for 3D Printer

The 42mm Hybrid Stepper Motor Series offers powerful holding torque in a variety of sizes.

Use with a microstepping driver to reduce vibration and achieve higher step resolution.

Choose a baseline version or request your own customized configuration.



Features:

  • Bipolar or unipolar versions available

  • For high-tech industry and electronic industry equipment

  • Available in single or double shaft versions

  • High torque and high precision

  • Professional research and development manufacturing

Appearance

NEMA 17 42x42mm 3D Printer Stepper Motor 1.8A 0.52Nm Torque 0

Dimensions

NEMA 17 42x42mm 3D Printer Stepper Motor 1.8A 0.52Nm Torque 1

Motor Specifications



Step Angel

1.8 °

Fram Size

42 mm

Number of Phase

2 Phase

Rated Current

1.8A

Holding Torque

520 mN.m

Resistance

1.8 ohm

Inductance

3.2 mH

Rotor Inertia

72 g-cm²

Motor weight

0.4 kg

Number of leads

4

Connection

Bipolar

Operating Specifications

Step Angle: 1.8°

Maximum  Temperature :80°C maximum

Ambient Temperature: -20 °C to 50°C

Storage Temperature -20: °C to 100°C

Humidity Range (%) :85% or less, non-condensing

Magnet Wire Insulation :Class B 130 deg C

Insulation Resistance :100M Ohm at 500 VDC

Dielectric Strength :500 VDC for 1 min







Torque Curves













Submodels

Model Holding Torque Step Angle Motor Length Type of Shaft Rated Current
42SHD4950 0.13N.m 1.8° 20mm D Shaft-20mm 1.0A
42SHD4003 0.26N.m 1.8° 34mm D Shaft-20mm 0.4A
42SHD0261 0.45N.m 1.8° 40mm D Shaft-20mm 1.68A
42SHD4425 0.59N.m 1.8° 48mm D Shaft-24mm 2.0A
42SHD4813 0.8N.m 1.8° 60mm D Shaft-24mm 2.1A





Download

If our standard motor cannot meet your needs,

we can customize the motor according to your needs


Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

FAQ

1. who are we?
We are based in Guangdong, China, start from 2011,sell to Domestic Market(63.00%),Western Europe(12.00%),North America(9.00%),Eastern Asia(8.00%),Northern Europe(2.00%),Eastern Europe(00.00%),Southeast Asia(00.00%),Oceania(00.00%),Mid East(00.00%),Southern Europe(00.00%),South Asia(00.00%). There are total about 51-100 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
Stepper Motor,BLDC Motor

4. why should you buy from us not from other suppliers?
We specialize in producing and selling stepper motors more than 11 years.

5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,Express Delivery;
Accepted Payment Currency:USD,CNY;
Accepted Payment Type: T/T,L/C,D/P D/A;
Language Spoken:English,Chinese,Japanese



Options:

Encoder

Brake

Gearbox

Shaft

NEMA 17 42x42mm 3D Printer Stepper Motor 1.8A 0.52Nm Torque 2 NEMA 17 42x42mm 3D Printer Stepper Motor 1.8A 0.52Nm Torque 3 NEMA 17 42x42mm 3D Printer Stepper Motor 1.8A 0.52Nm Torque 4 NEMA 17 42x42mm 3D Printer Stepper Motor 1.8A 0.52Nm Torque 5
