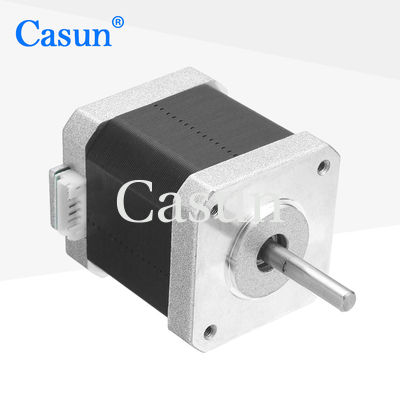

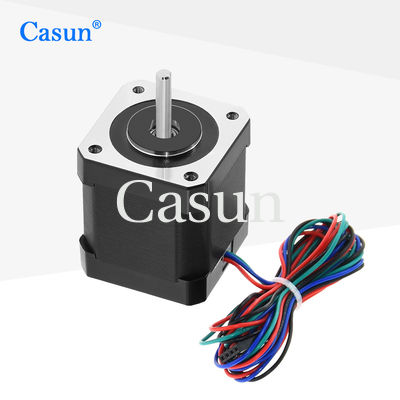

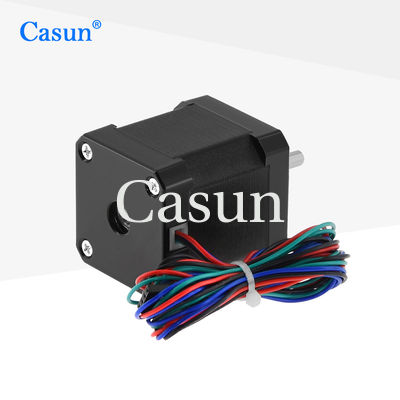

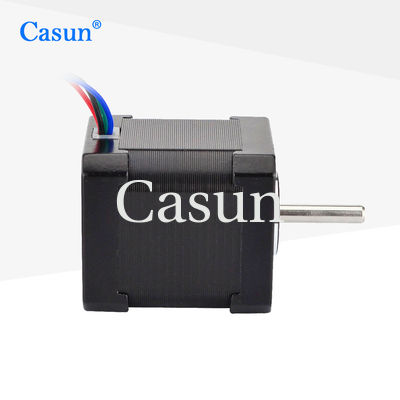

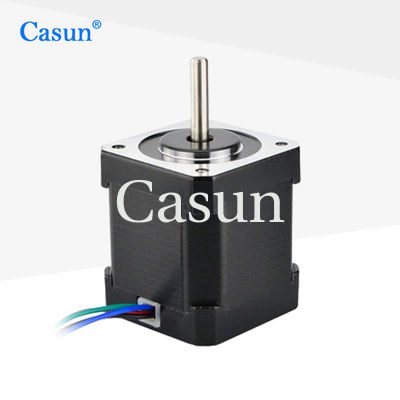

3.24V NEMA 17 Stepper Motor 42x42mm 2 Phase Stepping Motor

3.24V NEMA 17 Stepper Motor 42x42mm 2 Phase Stepping Motor

Brand Name:	Casun
Model Number:	42SHD0450-24BH
MOQ:	1PC
Price:	$3.14-$5
Payment Terms:	D/A, T/T, L/C, D/P
Supply Ability:	40000+PCS+Month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE,ROHS,ISO

Step Angel:

1.8°

Holding Torque:

520mN.m

Current:

1.8A

Rated Voltage:

3.24V

Motor Length:

48mm

Shaft:

Milling Flat Shaft 24mm Length

Weight:

0.4kg

Customized:

The Motor Can Be Designed &manufactured With Customized Request.

Packaging Details:

Carton:36x29x14cm

Highlight:

3.24V NEMA 17 Stepper Motor

48mm 2 Phase Stepping Motor

NEMA 17 Stepper Motor 42x42

Product Description

3.24V NEMA 17 Stepper Motor 42x42mm 2 Phase Stepping Motor

NEMA 17 Stepper Motor 42×42×48mm 2 Phase 1.8° Hybrid Stepping Motor 3.24V for 3D Printer XYZ axis with ROHS certification.

The 42mm Hybrid Stepper Motor Series offers powerful holding torque in a variety of sizes. Use with a microstepping driver to reduce vibration and achieve higher step resolution. Choose a baseline version or request your own customized configuration.

Key Features

Bipolar or unipolar versions available
Designed for high-tech industry and electronic industry equipment
Available in single or double shaft versions
High torque and high precision
Established in China for 12 years with over 800 customers served

Product Visuals

Appearance

Dimensions

Motor Specifications

Step Angle	1.8°
Frame Size	42 mm
Number of Phase	2 Phase
Rated Current	1.8 A
Holding Torque	520 mN.m
Resistance	1.8 ohm
Inductance	3.2 mH
Rotor Inertia	72 g-cm²
Motor Weight	0.4 kg
Number of Leads	4
Connection	Bipolar

Operating Specifications

Step Angle	1.8°
Maximum Temperature	80°C maximum
Ambient Temperature	-20°C to 50°C
Storage Temperature	-20°C to 100°C
Humidity Range	85% or less, non-condensing
Magnet Wire Insulation	Class B 130°C
Insulation Resistance	100M Ohm at 500 VDC
Dielectric Strength	500 VDC for 1 min

Available Models

Model	Holding Torque	Step Angle	Motor Length	Type of Shaft	Rated Current
42SHD4950	0.13N.m	1.8°	20mm	D Shaft-20mm	1.0A
42SHD4003	0.26N.m	1.8°	34mm	D Shaft-20mm	0.4A
42SHD0261	0.45N.m	1.8°	40mm	D Shaft-20mm	1.68A
42SHD4425	0.59N.m	1.8°	48mm	D Shaft-24mm	2.0A
42SHD4813	0.8N.m	1.8°	60mm	D Shaft-24mm	2.1A

Customization Options

If our standard motor cannot meet your needs, we can customize the motor according to your requirements. Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Encoder

Brake

Gearbox

Shaft

Get a quote

Frequently Asked Questions

Who are we?

We are based in Guangdong, China, starting from 2011. We sell to Domestic Market (63.00%), Western Europe (12.00%), North America (9.00%), Eastern Asia (8.00%), Northern Europe (2.00%), and other global markets. There are about 51-100 people in our office.

How can we guarantee quality?

Always a pre-production sample before mass production; Always final inspection before shipment.

What can you buy from us?

Stepper Motor, BLDC Motor

Why should you buy from us not from other suppliers?

We specialize in producing and selling stepper motors for more than 11 years.

What services can we provide?

Accepted Delivery Terms: FOB, CFR, CIF, EXW, Express Delivery; Accepted Payment Currency: USD, CNY; Accepted Payment Type: T/T, L/C, D/P D/A; Language Spoken: English, Chinese, Japanese
