360mN.M 40mm Nema 17 1.8 Stepper Motor 1.68A For Mechanical Arm

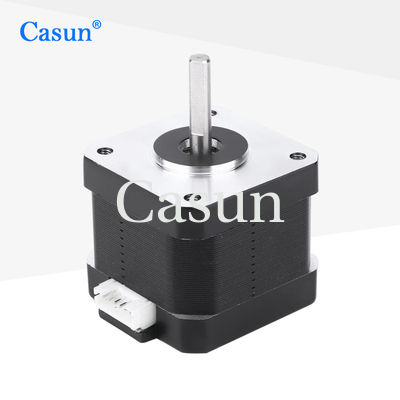

  • 360mN.M 40mm Nema 17 1.8 Stepper Motor 1.68A For Mechanical Arm

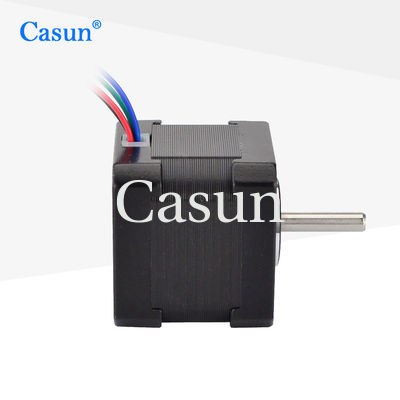

  • 360mN.M 40mm Nema 17 1.8 Stepper Motor 1.68A For Mechanical Arm

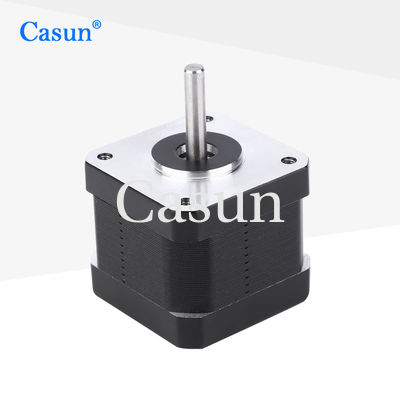

  • 360mN.M 40mm Nema 17 1.8 Stepper Motor 1.68A For Mechanical Arm

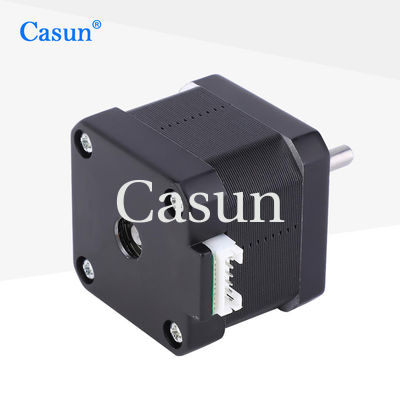

  • 360mN.M 40mm Nema 17 1.8 Stepper Motor 1.68A For Mechanical Arm

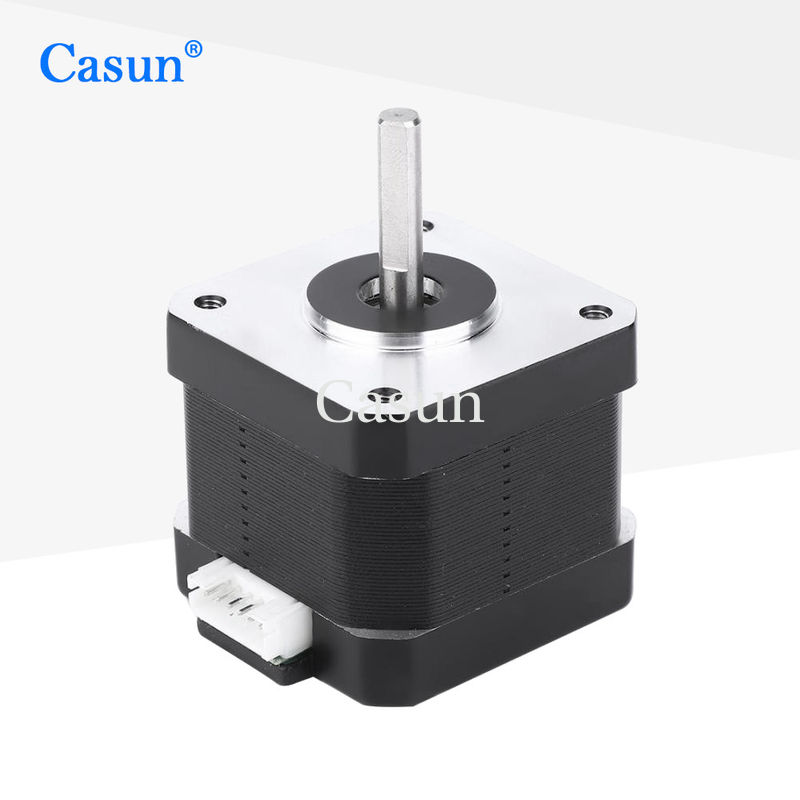

  • 360mN.M 40mm Nema 17 1.8 Stepper Motor 1.68A For Mechanical Arm

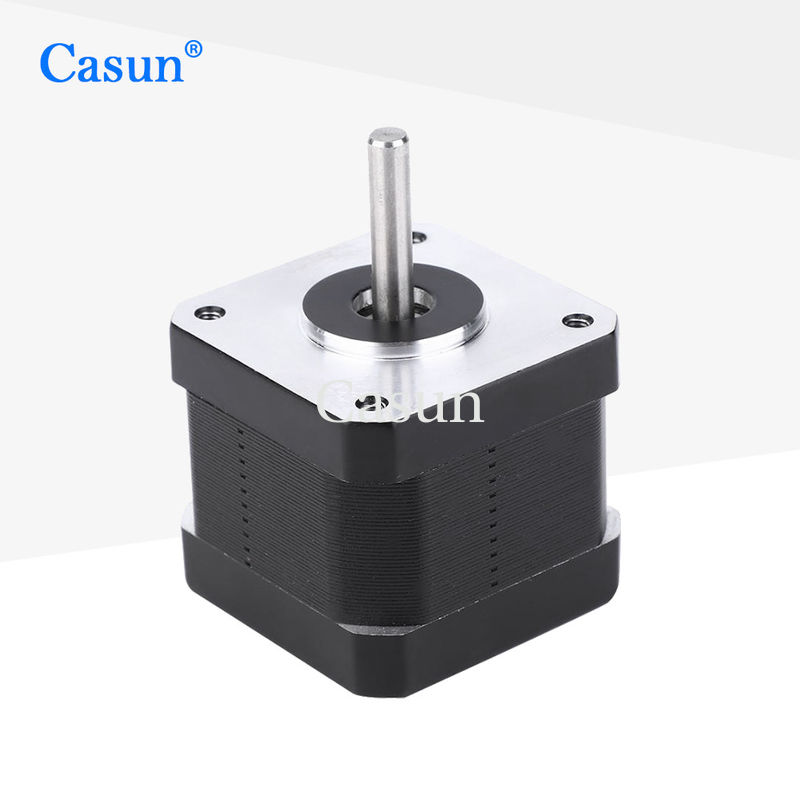

360mN.M 40mm Nema 17 1.8 Stepper Motor 1.68A For Mechanical Arm

Place of Origin China
Brand Name Casun
Certification CE,ROHS,ISO
Model Number 42SHD0229-24H
Product Details
Step Angel:
1.8°
Holding Torque:
360mN.m
Current:
1.68A
Motor Length:
40mm
Shaft:
Round Shaft 24mm Length
Weight:
0.4kg
High Light:

40mm Nema 17 1.8 Stepper Motor

,

Nema 17 1.8 Stepper Motor 1.68A

,

360mN.M 40mm Nema 17

Payment & Shipping Terms
Minimum Order Quantity
1PC
Price
$3.14-$5
Packaging Details
Carton:36x29x14cm
Delivery Time
7-15 days
Payment Terms
D/A, T/T, L/C, D/P
Supply Ability
40000+PCS+Month
Product Description

Nema 17 2 phase 1.8° 42*42*40mm Stepper Motor 1.68A for Mechanical arm

The 42mm Hybrid Stepper Motor Series offers powerful holding torque in a variety of sizes.

Use with a microstepping driver to reduce vibration and achieve higher step resolution.

Choose a baseline version or request your own customized configuration.



Features:

  • Bipolar or unipolar versions available

  • Hybrid stepper construction

  • Available in single or double shaft versions

  • CE and RoHS approved

  • Customizations on request

Appearance

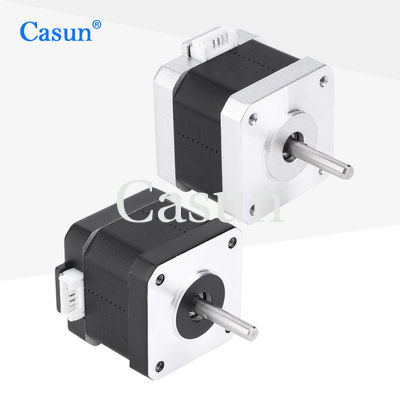

360mN.M 40mm Nema 17 1.8 Stepper Motor 1.68A For Mechanical Arm 0

Dimensions

360mN.M 40mm Nema 17 1.8 Stepper Motor 1.68A For Mechanical Arm 1















Motor Specifications



Step Angel

1.8 °

Fram Size

42 mm

Number of Phase

2 Phase

Rated Current

1.68 A

Holding Torque

360 mN.m

Resistance

1.65 ohm

Inductance

3.2 mH

Rotor Inertia

57 g-cm²

Motor weight

0.24 kg

Number of leads

4

Connection

Bipolar

Operating Specifications

Step Angle: 1.8°

Maximum  Temperature :80°C maximum

Ambient Temperature: -20 °C to 50°C

Storage Temperature -20: °C to 100°C

Humidity Range (%) :85% or less, non-condensing

Magnet Wire Insulation :Class B 130 deg C

Insulation Resistance :100M Ohm at 500 VDC

Dielectric Strength :500 VDC for 1 min







Torque Curves













Submodels

Model Holding Torque Step Angle Motor Length Type of Shaft Rated Current
42SHD4950 0.13N.m 1.8° 20mm D Shaft-20mm 1.0A
42SHD4003 0.26N.m 1.8° 34mm D Shaft-20mm 0.4A
42SHD0261 0.45N.m 1.8° 40mm D Shaft-20mm 1.68A
42SHD4425 0.59N.m 1.8° 48mm D Shaft-24mm 2.0A
42SHD4813 0.8N.m 1.8° 60mm D Shaft-24mm 2.1A





Download

If our standard motor cannot meet your needs,

we can customize the motor according to your needs


Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

FAQ

1. who are we?
We are based in Guangdong, China, start from 2011,sell to Domestic Market(63.00%),Western Europe(12.00%),North America(9.00%),Eastern Asia(8.00%),Northern Europe(2.00%),Eastern Europe(00.00%),Southeast Asia(00.00%),Oceania(00.00%),Mid East(00.00%),Southern Europe(00.00%),South Asia(00.00%). There are total about 51-100 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
Stepper Motor,BLDC Motor

4. why should you buy from us not from other suppliers?
We specialize in producing and selling stepper motors more than 11 years.
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,Express Delivery;
Accepted Payment Currency:USD,CNY;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Japanese

Options:

Encoder

Brake

Gearbox

Shaft

360mN.M 40mm Nema 17 1.8 Stepper Motor 1.68A For Mechanical Arm 2 360mN.M 40mm Nema 17 1.8 Stepper Motor 1.68A For Mechanical Arm 3 360mN.M 40mm Nema 17 1.8 Stepper Motor 1.68A For Mechanical Arm 4 360mN.M 40mm Nema 17 1.8 Stepper Motor 1.68A For Mechanical Arm 5
