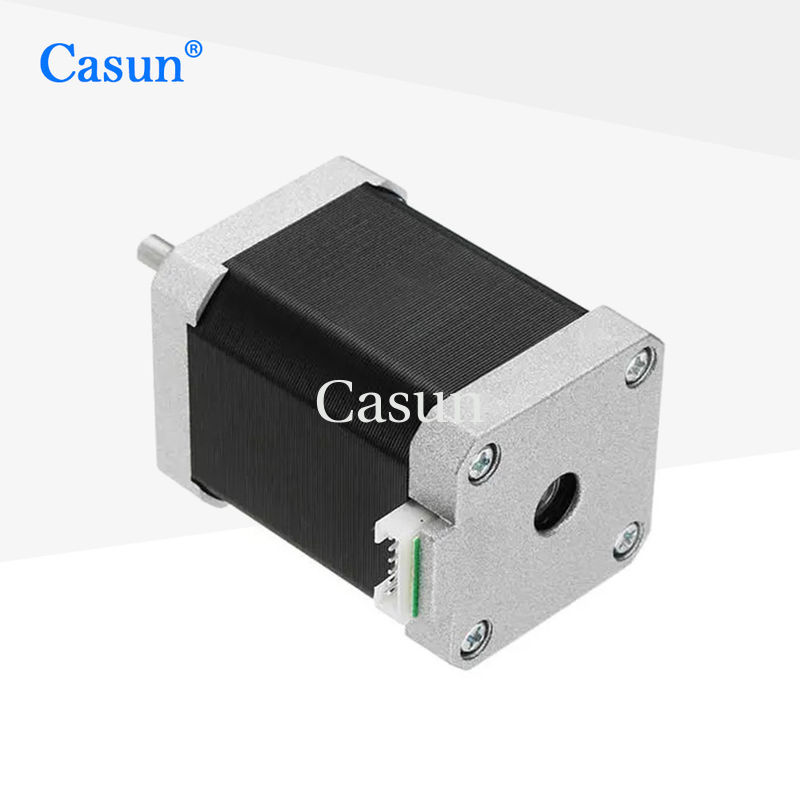

1.8 Degree NEMA 17 42mm Stepper Motor 0.65N.M Hybrid Type Stepper Motor

name

1.8 Degree NEMA 17 42mm Stepper Motor 0.65N.M Hybrid Type Stepper Motor

Brand Name: Casun
Model Number: 42SHD0803-25B
MOQ: 1PC
Price: $3.14-$5
Payment Terms: D/A, T/T, L/C, D/P
Supply Ability: 40000+PCS+Month
Detail Information
Product Description
Detail Information
Place of Origin:
CHINA
Certification:
CE,ROSH,ISO
Step Angel:
1.8°
Holding Torque:
650mN.m
Current:
1.7A
Motor Length:
60mm
Shaft:
Milling Flat Shaft 25mm Length
Customized:
The Motor Can Be Designed &manufactured With Customized Request.
Customized:
The Motor Can Be Designed &manufactured With Customized Request.
Packaging Details:
Carton:36x29x14cm
Highlight:

1.8 Degree NEMA 17 42mm

,

NEMA 17 42mm Stepper Motor

,

0.65N.M Hybrid Type Stepper Motor

Product Description

The NEMA 17 stepper motor is widely favored for its high precision, reliability, torque, and simple control.

Suitable for many automation and mechanical applications that require precise control.



Features:

  • High torque and high precision

  • For high-tech industry and electronic industry equipment

  • Professional drivetrain solution specialist

  • Your purchase comes with a ten-year warranty, ensuring confidence

  • Specializing in tailor-made services is our expertise

Appearance

1.8 Degree NEMA 17 42mm Stepper Motor 0.65N.M Hybrid Type Stepper Motor 0

Dimensions

1.8 Degree NEMA 17 42mm Stepper Motor 0.65N.M Hybrid Type Stepper Motor 1

Motor Specifications

Step Angel

1.8 °

Fram Size

42 mm

Number of Phase

2 Phase

Rated Current

1.7 A

Holding Torque

650 mN.m

Resistance

1.65 ohm

Inductance

3.2 mH

Rotor Inertia

102 g-cm²

Motor weight

0.45 kg

Number of leads

4

Connection

Bipolar

Operating Specifications

Step Angle: 1.8°

Maximum  Temperature :80°C maximum

Ambient Temperature: -20 °C to 50°C

Storage Temperature -20: °C to 100°C

Humidity Range (%) :85% or less, non-condensing

Magnet Wire Insulation :Class B 130 deg C

Insulation Resistance :100M Ohm at 500 VDC

Dielectric Strength :500 VDC for 1 min







Torque Curves













Submodels

Model Holding Torque Step Angle Motor Length Type of Shaft Rated Current
42SHD4950 0.13N.m 1.8° 20mm D Shaft-20mm 1.0A
42SHD4003 0.26N.m 1.8° 34mm D Shaft-20mm 0.4A
42SHD0261 0.45N.m 1.8° 40mm D Shaft-20mm 1.68A
42SHD4425 0.59N.m 1.8° 48mm D Shaft-24mm 2.0A
42SHD4813 0.8N.m 1.8° 60mm D Shaft-24mm 2.1A





Download

If our standard motor cannot meet your needs,

we can customize the motor according to your needs


Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:

Encoder

Brake

Gearbox

Shaft
1.8 Degree NEMA 17 42mm Stepper Motor 0.65N.M Hybrid Type Stepper Motor 2 1.8 Degree NEMA 17 42mm Stepper Motor 0.65N.M Hybrid Type Stepper Motor 3 1.8 Degree NEMA 17 42mm Stepper Motor 0.65N.M Hybrid Type Stepper Motor 4 1.8 Degree NEMA 17 42mm Stepper Motor 0.65N.M Hybrid Type Stepper Motor 5



Please click the "Get a quote" button below to tell us your requirements.
