products details

Created with Pixso. Home Created with Pixso. Products Created with Pixso.
Hybrid Stepper Motor
Created with Pixso.

Nema 17 Stepper Motor Bipolar 60mm Body 1.5A 4 wires Connector for 3D Printer Medical Machine

name

Nema 17 Stepper Motor Bipolar 60mm Body 1.5A 4 wires Connector for 3D Printer Medical Machine

Brand Name: Casun
Model Number: 42SHD0806-24BH
MOQ: 1PC
Price: $3.14-$5
Payment Terms: D/A, T/T, L/C, D/P
Supply Ability: 40000+PCS+Month
Detail Information
Product Description
Detail Information
Place of Origin:
CHINA
Certification:
CE,ROHS,ISO
Step Angel:
1.8°
Holding Torque:
860mN.m
Current:
1.5A
Motor Length:
60mm
Shaft:
Milling Flat Shaft 24mm Length
Customized:
The Motor Can Be Designed &manufactured With Customized Request.
Packaging Details:
Carton:36x29x14cm
Highlight:

60mm Body Nema 17 Bipolar

,

1.5A 4 Wire Stepper Motor

,

4 Wire Stepper Motor 860 mNM

Product Description

It has a long service life and high reliability, suitable for long-term operation and high-intensity working environments.

3D printers, automation equipment, robots.



Features:

  • Accept contract manufacturing.

  • In search of partners!

  • Professional drivetrain solution specialist

  • Established in China for 12 years and has served more than 800 customers.

  • Providing "a wide range of international certifications" for high-tech and electronic industry equipment

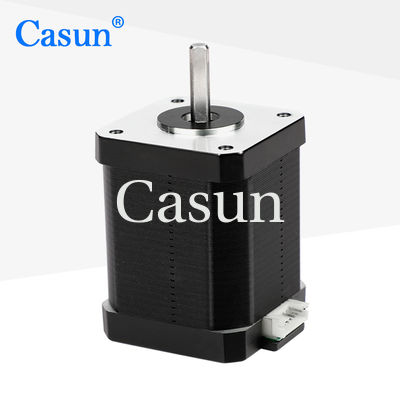

Appearance

Nema 17 Stepper Motor Bipolar 60mm Body 1.5A 4 wires Connector for 3D Printer Medical Machine 0

Dimensions

Nema 17 Stepper Motor Bipolar 60mm Body 1.5A 4 wires Connector for 3D Printer Medical Machine 1

Motor Specifications

Step Angel

1.8 °

Fram Size

42 mm

Number of Phase

2 Phase

Rated Current

1.5 A

Holding Torque

860 mN.m

Resistance

3.5 ohm

Inductance

9 mH

Rotor Inertia

102 g-cm²

Motor weight

0.45 kg

Number of leads

4

Connection

Bipolar

Operating Specifications

Step Angle: 1.8°

Maximum  Temperature :80°C maximum

Ambient Temperature: -20 °C to 50°C

Storage Temperature -20: °C to 100°C

Humidity Range (%) :85% or less, non-condensing

Magnet Wire Insulation :Class B 130 deg C

Insulation Resistance :100M Ohm at 500 VDC

Dielectric Strength :500 VDC for 1 min







Torque Curves













Submodels

Model Holding Torque Step Angle Motor Length Type of Shaft Rated Current
42SHD4950 0.13N.m 1.8° 20mm D Shaft-20mm 1.0A
42SHD4003 0.26N.m 1.8° 34mm D Shaft-20mm 0.4A
42SHD0261 0.45N.m 1.8° 40mm D Shaft-20mm 1.68A
42SHD4425 0.59N.m 1.8° 48mm D Shaft-24mm 2.0A
42SHD4813 0.8N.m 1.8° 60mm D Shaft-24mm 2.1A





Download

If our standard motor cannot meet your needs,

we can customize the motor according to your needs


Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:

Encoder

Brake

Gearbox

Shaft

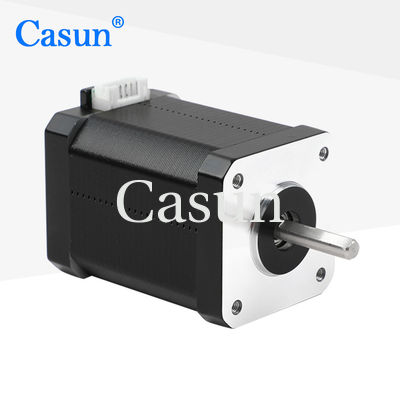

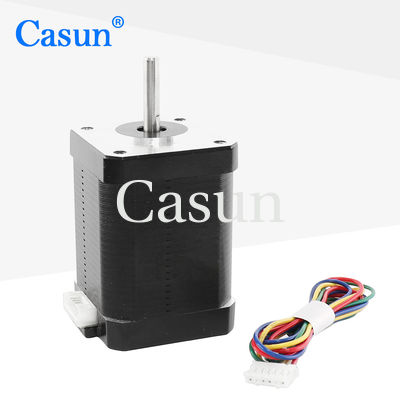

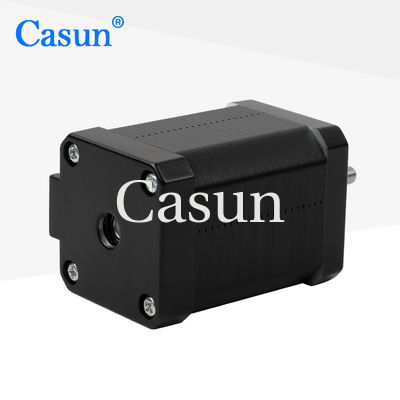

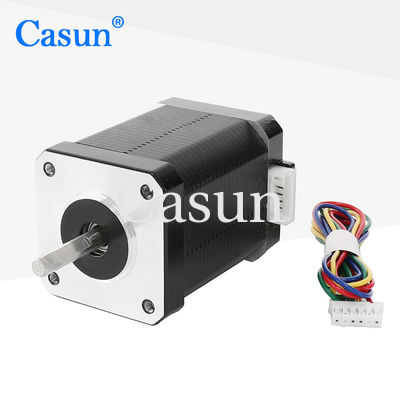

Nema 17 Stepper Motor Bipolar 60mm Body 1.5A 4 wires Connector for 3D Printer Medical Machine 2 Nema 17 Stepper Motor Bipolar 60mm Body 1.5A 4 wires Connector for 3D Printer Medical Machine 3 Nema 17 Stepper Motor Bipolar 60mm Body 1.5A 4 wires Connector for 3D Printer Medical Machine 4 Nema 17 Stepper Motor Bipolar 60mm Body 1.5A 4 wires Connector for 3D Printer Medical Machine 5



Please click the "Get a quote" button below to tell us your requirements.



Tags:

2 Phase Bipolar Stepper Motor

Nema 6 Bipolar Stepper Motor

60mm Body Nema 17 Bipolar
