450mN.M NEMA 17 Stepper Motor 1.8 Degree DC Electric 1.5A With CE ROHS

450mN.M NEMA 17 Stepper Motor 1.8 Degree DC Electric 1.5A With CE ROHS

Brand Name:	Casun
Model Number:	42SHD0442-22B
MOQ:	1PC
Price:	$3.14-$5
Payment Terms:	D/A, T/T, L/C, D/P
Supply Ability:	40000+PCS+Month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE,ROHS,ISO

Step Angel:

1.8°

Holding Torque:

450mN.m

Current:

1.5A

Rated Voltage:

2.1V

Motor Length:

48mm

Shaft:

Milling Flat Shaft 22mm Length

Customized:

The Motor Can Be Designed &manufactured With Customized Request.

Packaging Details:

Carton:36x29x14cm

Highlight:

450mN.m NEMA 17 Stepper Motor

NEMA 17 Stepper Motor 1.8 Degree

1.5A DC Electric Stepper Motor

Product Description

450mN.M NEMA 17 Stepper Motor 1.8 Degree DC Electric 1.5A With CE ROHS

Product Overview

NEMA 17 Hybrid Stepper Motor 2 Phase 1.8 Degree DC Electric 1.5A 450mN.m with CE ROHS certification. The 42mm Hybrid Stepper Motor Series offers powerful holding torque in a variety of sizes. Use with a microstepping driver to reduce vibration and achieve higher step resolution. Choose a baseline version or request your own customized configuration.

Bipolar or unipolar versions available
For high-tech industry and electronic industry equipment
Available in single or double shaft versions
Professional drivetrain solution specialist
Established in China for 12 years and has served more than 800 customers

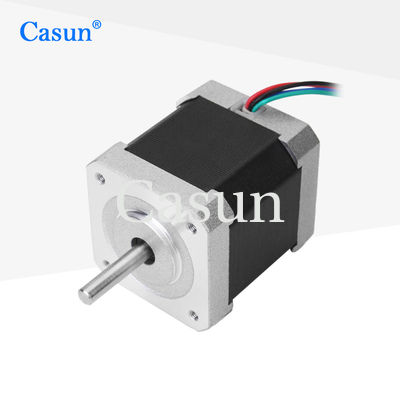

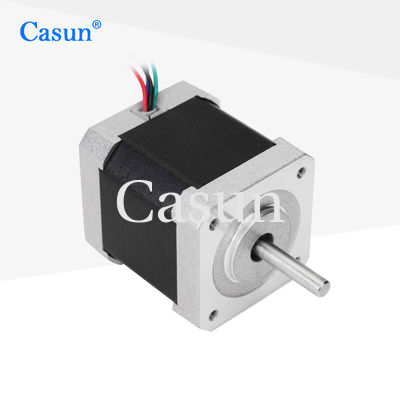

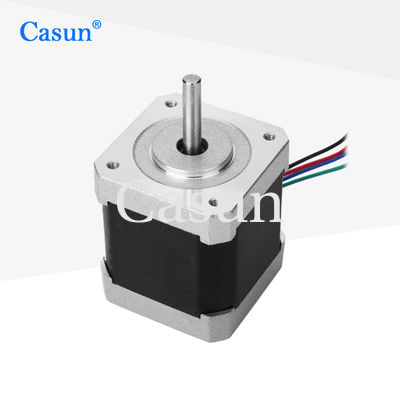

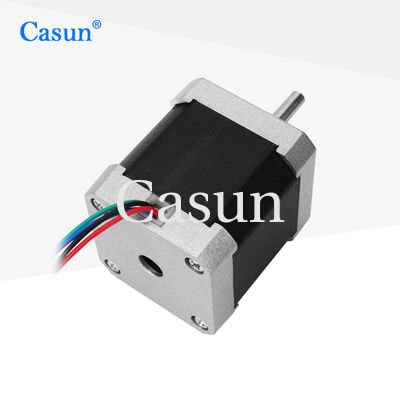

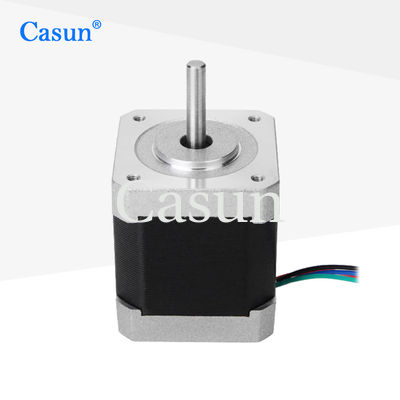

Appearance

Dimensions

Motor Specifications

Step Angle	1.8°
Frame Size	42 mm
Number of Phase	2 Phase
Rated Current	1.5 A
Holding Torque	450 mN.m
Resistance	1.4 ohm
Inductance	2.5 mH
Rotor Inertia	72 g-cm²
Motor Weight	0.38 kg
Number of Leads	6
Connection	Bipolar

Operating Specifications

Step Angle: 1.8°

Maximum Temperature: 80°C maximum

Ambient Temperature: -20°C to 50°C

Storage Temperature: -20°C to 100°C

Humidity Range: 85% or less, non-condensing

Magnet Wire Insulation: Class B 130°C

Insulation Resistance: 100M Ohm at 500 VDC

Dielectric Strength: 500 VDC for 1 min

Available Models

Model	Holding Torque	Step Angle	Motor Length	Type of Shaft	Rated Current
42SHD4950	0.13N.m	1.8°	20mm	D Shaft-20mm	1.0A
42SHD4003	0.26N.m	1.8°	34mm	D Shaft-20mm	0.4A
42SHD0261	0.45N.m	1.8°	40mm	D Shaft-20mm	1.68A
42SHD4425	0.59N.m	1.8°	48mm	D Shaft-24mm	2.0A
42SHD4813	0.8N.m	1.8°	60mm	D Shaft-24mm	2.1A

Available Options

Encoder

Brake

Gearbox

Shaft

Customization Services

If our standard motor cannot meet your needs, we can customize the motor according to your requirements. Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Frequently Asked Questions

Who are we?

We are based in Guangdong, China, starting from 2011. We sell to Domestic Market (63.00%), Western Europe (12.00%), North America (9.00%), Eastern Asia (8.00%), Northern Europe (2.00%), and other global markets. There are about 51-100 people in our office.

How can we guarantee quality?

Always a pre-production sample before mass production; Always final inspection before shipment.

What can you buy from us?

Stepper Motor, BLDC Motor

Why should you buy from us not from other suppliers?

We are specialized in producing and selling stepper motors for more than 11 years.

What services can we provide?

Accepted Delivery Terms: FOB, CFR, CIF, EXW, Express Delivery; Accepted Payment Currency: USD, CNY; Accepted Payment Type: T/T, L/C, D/P D/A; Language Spoken: English, Chinese, Japanese

Please click the "Get a quote" button below to tell us your requirements.
