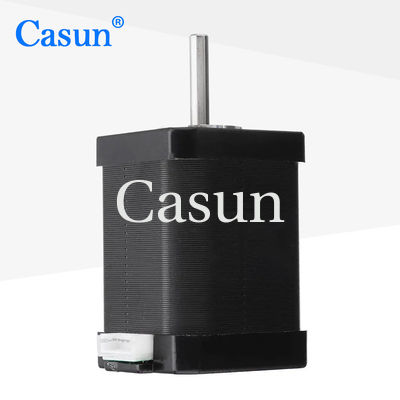

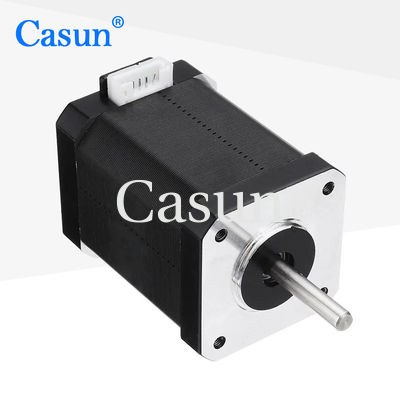

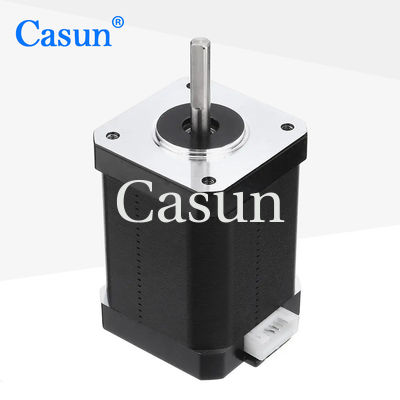

3D Printer Nema 17 60mm Hybrid Stepper Motor 0.5A 0.78N.M 2 Phase

name

3D Printer Nema 17 60mm Hybrid Stepper Motor 0.5A 0.78N.M 2 Phase

Brand Name: Casun
Model Number: 42SHD0802-25BH
MOQ: 1PC
Price: $3.14-$5
Payment Terms: D/A, T/T, L/C, D/P
Supply Ability: 40000+PCS+Month
Detail Information
Product Description
Detail Information
Place of Origin:
CHINA
Certification:
CE,ROSH,ISO
Step Angel:
1.8°
Holding Torque:
780mN.m
Current:
0.5A
Motor Length:
60mm
Shaft:
Milling Flat Shaft 25mm Length
Customized:
The Motor Can Be Designed &manufactured With Customized Request.
Packaging Details:
Carton:36x29x14cm
Highlight:

Nema 17 60mm Hybrid Stepper Motor

,

3D Printer Nema 17 60mm

,

2 Phase Nema 17 60mm

Product Description

NEMA 17 stepper motors are compatible with various controllers and drivers, providing a high degree of flexibility.

NEMA 17 stepper motor is suitable for various small mechanical devices.



Features:

  • High torque and high precision

  • For high-tech industry and electronic industry equipment

  • Available in single or double shaft versions

  • We provide tailored services and welcome contract-based production

  • Expert in drivetrain solutions

Appearance

3D Printer Nema 17 60mm Hybrid Stepper Motor 0.5A 0.78N.M 2 Phase 0

Dimensions

3D Printer Nema 17 60mm Hybrid Stepper Motor 0.5A 0.78N.M 2 Phase 1

Motor Specifications

Step Angel

1.8 °

Fram Size

42 mm

Number of Phase

2 Phase

Rated Current

0.5 A

Holding Torque

780 mN.m

Resistance

30 ohm

Inductance

65 mH

Rotor Inertia

102 g-cm²

Motor weight

0.45 kg

Number of leads

4

Connection

Bipolar

Operating Specifications

Step Angle: 1.8°

Maximum  Temperature :80°C maximum

Ambient Temperature: -20 °C to 50°C

Storage Temperature -20: °C to 100°C

Humidity Range (%) :85% or less, non-condensing

Magnet Wire Insulation :Class B 130 deg C

Insulation Resistance :100M Ohm at 500 VDC

Dielectric Strength :500 VDC for 1 min







Torque Curves













Submodels

Model Holding Torque Step Angle Motor Length Type of Shaft Rated Current
42SHD4950 0.13N.m 1.8° 20mm D Shaft-20mm 1.0A
42SHD4003 0.26N.m 1.8° 34mm D Shaft-20mm 0.4A
42SHD0261 0.45N.m 1.8° 40mm D Shaft-20mm 1.68A
42SHD4425 0.59N.m 1.8° 48mm D Shaft-24mm 2.0A
42SHD4813 0.8N.m 1.8° 60mm D Shaft-24mm 2.1A





Download

If our standard motor cannot meet your needs,

we can customize the motor according to your needs


Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:

Encoder

Brake

Gearbox

Shaft
3D Printer Nema 17 60mm Hybrid Stepper Motor 0.5A 0.78N.M 2 Phase 2 3D Printer Nema 17 60mm Hybrid Stepper Motor 0.5A 0.78N.M 2 Phase 3 3D Printer Nema 17 60mm Hybrid Stepper Motor 0.5A 0.78N.M 2 Phase 4 3D Printer Nema 17 60mm Hybrid Stepper Motor 0.5A 0.78N.M 2 Phase 5



Please click the "Get a quote" button below to tell us your requirements.
