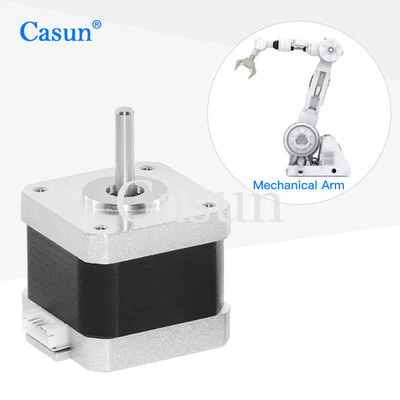

Casun 42mm NEMA 17 Hybrid Stepper Motor 12V 350mN.M For CNC Robot

Casun 42mm NEMA 17 Hybrid Stepper Motor 12V 350mN.M For CNC Robot

42mm NEMA 17 Hybrid Stepper Motor

Casun Stepper Motor 12V

350mN.M Hybrid Stepper Motor

Place of Origin:

China

Brand Name:

Casun

Certification:

CE,ROHS,ISO

Model Number:

42SHD0207-24

Contact Us

Request A Quote
Product Details
Step Angel:
1.8°
Holding Torque:
350mN.m
Current:
0.4A
Rated Voltage:
12V
Motor Length:
40mm
Shaft:
Round Shaft 24mm Length
Payment & Shipping Terms
Minimum Order Quantity
1PC
Price
$3.14-$5
Packaging Details
Carton:36x29x14cm
Delivery Time
7-15 days
Payment Terms
D/A, T/T, L/C, D/P
Supply Ability
40000+PCS+Month
RELATED PRODUCTS
Contact Us
86-020-36907671
Contact Now
Product Description

NEMA 17 Hybrid Stepper Motor 42*42*40mm 1.8 Degree 2 Phase 12V 350mN.m for CNC Robot

The 42mm Hybrid Stepper Motor Series offers powerful holding torque in a variety of sizes.

Use with a microstepping driver to reduce vibration and achieve higher step resolution.

Choose a baseline version or request your own customized configuration.



Features:

  • Bipolar or unipolar versions available

  • Hybrid stepper construction

  • Available in single or double shaft versions

  • CE and RoHS approved

  • Customizations on request

Appearance

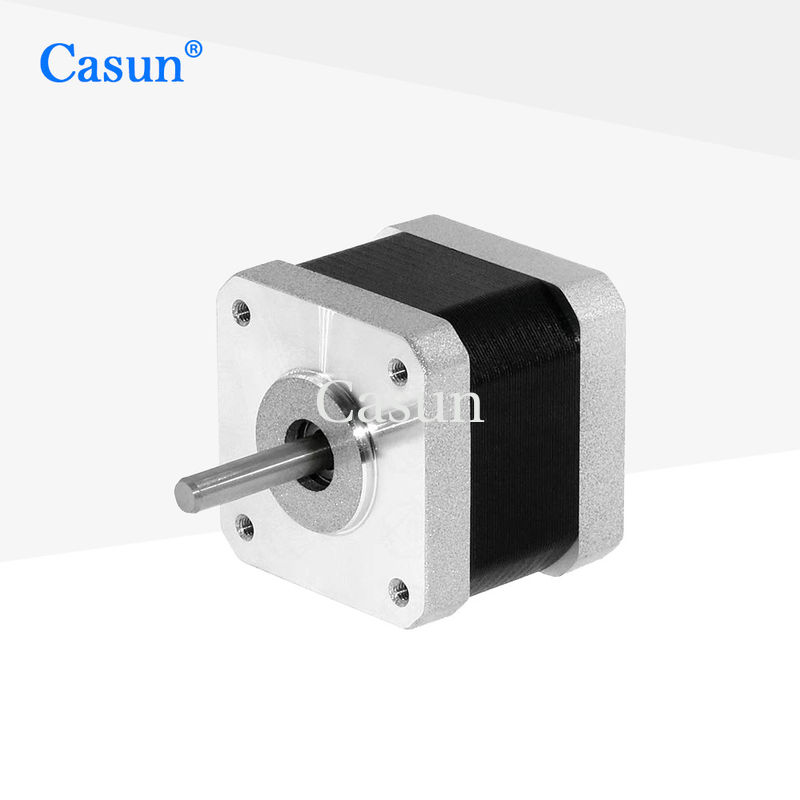

Casun 42mm NEMA 17 Hybrid Stepper Motor 12V 350mN.M For CNC Robot 0

Dimensions

Casun 42mm NEMA 17 Hybrid Stepper Motor 12V 350mN.M For CNC Robot 1



Motor Specifications



Step Angel

1.8 °

Fram Size

40 mm

Number of Phase

2 Phase

Rated Current

0.4 A

Holding Torque

350 mN.m

Resistance

30 ohm

Inductance

32 mH

Rotor Inertia

57 g-cm²

Motor weight

0.24 kg

Number of leads

4

Connection

Bipolar

Operating Specifications

Step Angle: 1.8°

Maximum  Temperature :80°C maximum

Ambient Temperature: -20 °C to 50°C

Storage Temperature -20: °C to 100°C

Humidity Range (%) :85% or less, non-condensing

Magnet Wire Insulation :Class B 130 deg C

Insulation Resistance :100M Ohm at 500 VDC

Dielectric Strength :500 VDC for 1 min







Torque Curves













Submodels

Model Holding Torque Step Angle Motor Length Type of Shaft Rated Current
42SHD4950 0.13N.m 1.8° 20mm D Shaft-20mm 1.0A
42SHD4003 0.26N.m 1.8° 34mm D Shaft-20mm 0.4A
42SHD0261 0.45N.m 1.8° 40mm D Shaft-20mm 1.68A
42SHD4425 0.59N.m 1.8° 48mm D Shaft-24mm 2.0A
42SHD4813 0.8N.m 1.8° 60mm D Shaft-24mm 2.1A





Download

If our standard motor cannot meet your needs,

we can customize the motor according to your needs


Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

FAQ

1. who are we?

We are based in Guangdong, China, start from 2011,sell to Domestic Market(63.00%),Western Europe(12.00%),North America(9.00%),Eastern Asia(8.00%),Northern Europe(2.00%),Eastern Europe(00.00%),Southeast Asia(00.00%),Oceania(00.00%),Mid East(00.00%),Southern Europe(00.00%),South Asia(00.00%). There are total about 51-100 people in our office.



2. how can we guarantee quality?

Always a pre-production sample before mass production;

Always final Inspection before shipment;



3.what can you buy from us?

Stepper Motor,BLDC Motor



4. why should you buy from us not from other suppliers?

We are specialized in producing and selling stepper motors for more than 11 years.



5. what services can we provide?

Accepted Delivery Terms: FOB,CFR,CIF,EXW,Express Delivery;

Accepted Payment Currency:USD,CNY;

Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,PayPal,Western Union,Cash,Escrow;

Language Spoken:English,Chinese,Japanese

Options:

Encoder

Brake

Gearbox

Shaft

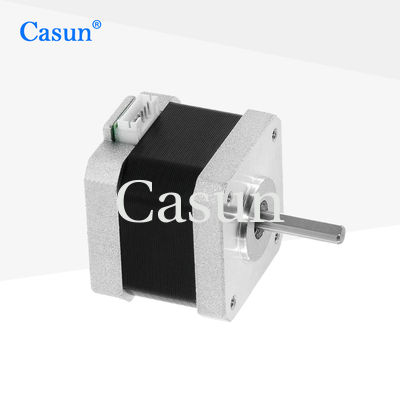

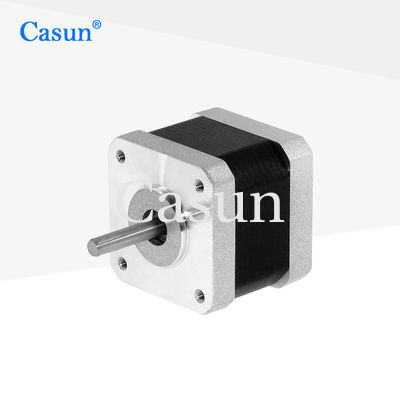

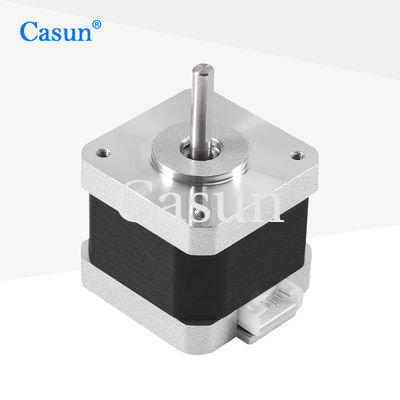

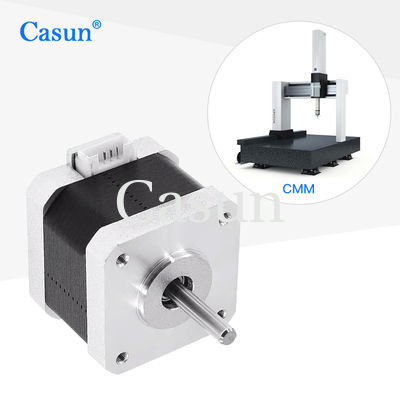

Casun 42mm NEMA 17 Hybrid Stepper Motor 12V 350mN.M For CNC Robot 2 Casun 42mm NEMA 17 Hybrid Stepper Motor 12V 350mN.M For CNC Robot 3 Casun 42mm NEMA 17 Hybrid Stepper Motor 12V 350mN.M For CNC Robot 4 Casun 42mm NEMA 17 Hybrid Stepper Motor 12V 350mN.M For CNC Robot 5
