0.86N.M Nema 17 Stepper Motor Kit 1.5A 1.8 Degree Stepper Motor

name

0.86N.M Nema 17 Stepper Motor Kit 1.5A 1.8 Degree Stepper Motor

Brand Name: Casun
Model Number: 42SHD0804-20BH
MOQ: 1PC
Price: $3.14-$5
Payment Terms: D/A, T/T, L/C, D/P
Supply Ability: 40000+PCS+Month
Detail Information
Product Description
Detail Information
Place of Origin:
CHINA
Certification:
CE,ROSH,ISO
Step Angel:
1.8°
Holding Torque:
860mN.m
Current:
1.5A
Motor Length:
60mm
Shaft:
Milling Flat Shaft 20mm Length
Customized:
The Motor Can Be Designed &manufactured With Customized Request.
Packaging Details:
Carton:36x29x14cm
Highlight:

0.86N.M Nema 17 Stepper Motor Kit

,

1.5A 1.8 Degree Stepper Motor

,

Nema 17 Stepper Motor Kit 1.5A

Product Description

In 3D printers, laser cutting machines, and plotters, the NEMA 17 stepper motor is used to precisely control the position of the print head or laser head.

It can be easily integrated into existing automation solutions.



Features:

  • High torque and high precision

  • Offer custom services

  • Available in single or double shaft versions

  • We provide multiple international certifications for high-tech and electronics industry equipment

  • Each stepper motor model is adaptable to various scenarios

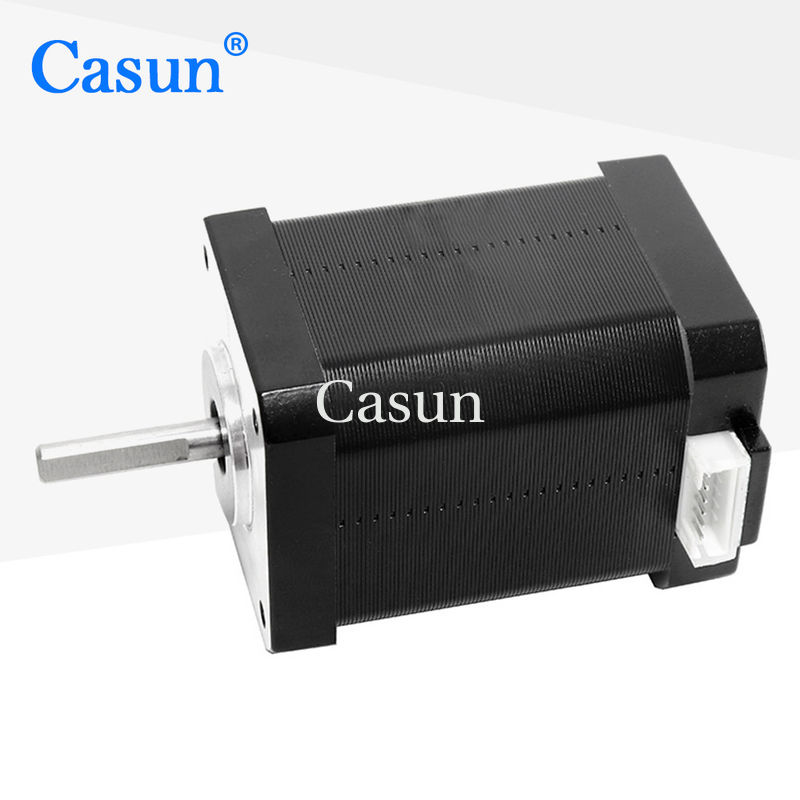

Appearance

0.86N.M Nema 17 Stepper Motor Kit 1.5A 1.8 Degree Stepper Motor 0

Dimensions

0.86N.M Nema 17 Stepper Motor Kit 1.5A 1.8 Degree Stepper Motor 1

Motor Specifications

Step Angel

1.8 °

Fram Size

42 mm

Number of Phase

2 Phase

Rated Current

1.5 A

Holding Torque

860 mN.m

Resistance

3.5 ohm

Inductance

9 mH

Rotor Inertia

102 g-cm²

Motor weight

0.45 kg

Number of leads

4

Connection

Bipolar

Operating Specifications

Step Angle: 1.8°

Maximum  Temperature :80°C maximum

Ambient Temperature: -20 °C to 50°C

Storage Temperature -20: °C to 100°C

Humidity Range (%) :85% or less, non-condensing

Magnet Wire Insulation :Class B 130 deg C

Insulation Resistance :100M Ohm at 500 VDC

Dielectric Strength :500 VDC for 1 min







Torque Curves













Submodels

Model Holding Torque Step Angle Motor Length Type of Shaft Rated Current
42SHD4950 0.13N.m 1.8° 20mm D Shaft-20mm 1.0A
42SHD4003 0.26N.m 1.8° 34mm D Shaft-20mm 0.4A
42SHD0261 0.45N.m 1.8° 40mm D Shaft-20mm 1.68A
42SHD4425 0.59N.m 1.8° 48mm D Shaft-24mm 2.0A
42SHD4813 0.8N.m 1.8° 60mm D Shaft-24mm 2.1A





Download

If our standard motor cannot meet your needs,

we can customize the motor according to your needs


Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:

Encoder

Brake

Gearbox

Shaft
0.86N.M Nema 17 Stepper Motor Kit 1.5A 1.8 Degree Stepper Motor 2 0.86N.M Nema 17 Stepper Motor Kit 1.5A 1.8 Degree Stepper Motor 3 0.86N.M Nema 17 Stepper Motor Kit 1.5A 1.8 Degree Stepper Motor 4 0.86N.M Nema 17 Stepper Motor Kit 1.5A 1.8 Degree Stepper Motor 5



Please click the "Get a quote" button below to tell us your requirements.
