6.8V 1A NEMA 14 Geared Stepper Motor 180mN.M Planetary Gear Reducer Motor

6.8V 1A NEMA 14 Geared Stepper Motor 180mN.M Planetary Gear Reducer Motor

Brand Name:	Casun
Model Number:	P35SHD4118-19G
MOQ:	1PC
Price:	$18.9-$24
Payment Terms:	D/A, T/T, L/C, D/P
Supply Ability:	40000+PCS+Month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE,ROHS,ISO

Steper Angle:

1.8degree

Phase:

Rated Voltage:

6.8V

Rate Current:

Holding Torque:

180mN.m

Detent Torque:

15mN.m

Ratio:

19.2:1

Customized:

The Motor Can Be Designed &manufactured With Customized Request.

Packaging Details:

Carton:38x29x18cm

Highlight:

6.8V 1A NEMA 14

1A NEMA 14 Geared Stepper Motor

180mN.M Planetary Gear Reducer Motor

Product Description

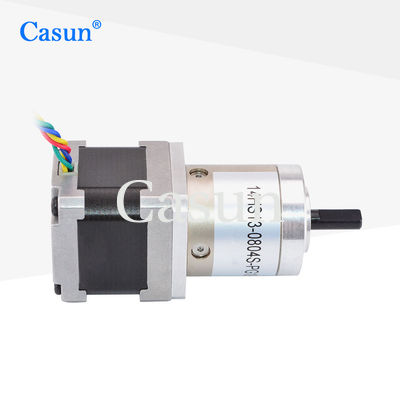

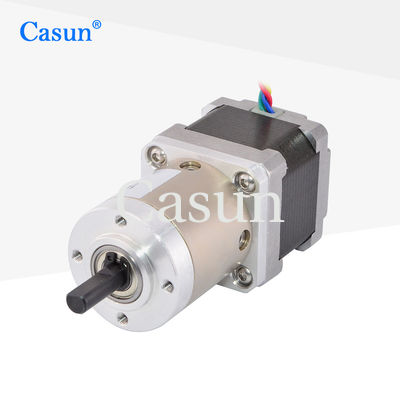

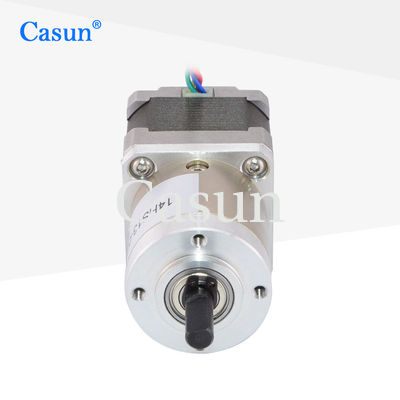

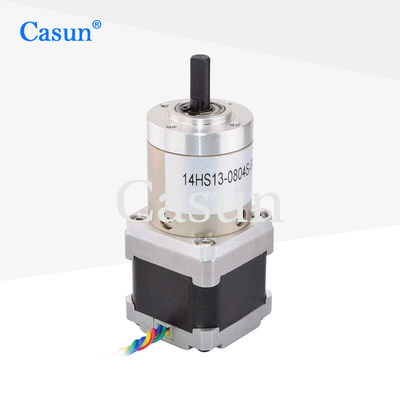

6.8V 1A NEMA 14 Geared Stepper Motor 180mN.M Planetary Gear Reducer Motor

The NEMA 14 1A Geared Stepper Motor with 6.8V and 180 mN.m torque features a high-efficiency planetary gearbox reducer with a 19:1 gear reduction ratio. This 14HS13-0804S-PG19 NEMA 14 stepper motor offers powerful holding torque in a compact 42mm hybrid stepper motor design.

Use with a microstepping driver to reduce vibration and achieve higher step resolution. Choose from baseline versions or request customized configurations to meet your specific requirements.

Key Features

Bipolar or unipolar versions available
Hybrid stepper construction
Available in single or double shaft versions
CE and RoHS approved
Customizations available on request

Dimensions

Motor Specifications

Step Angle	1.8°
Frame Size	35 mm
Number of Phase	2 Phase
Rated Current	1.0 A
Holding Torque	180 mN.m
Resistance	6.8 ohm
Inductance	10 mH
Rotor Inertia	180 g-cm²
Motor Weight	0.4 kg
Gear Reduction Ratio	19.2:1
Connection	Bipolar

Operating Specifications

Motor

Step Angle	1.8°
Maximum Temperature	80°C maximum
Ambient Temperature	-20°C to 50°C
Storage Temperature	-20°C to 100°C
Humidity Range	85% or less, non-condensing
Magnet Wire Insulation	Class B 130°C
Insulation Resistance	100M Ohm at 500 VDC
Dielectric Strength	500 VDC for 1 min

Gear Box

Housing Material	Metal
Bearing at Output	Ball Bearings
Max. Radial Load (12mm from flange)	≤80N
Max. Shaft Axial Load	≤30N
Radial Play of Shaft (near to Flange)	≤0.06m
Axial Play of Shaft	≤0.3mm
Backlash at No-load	≤1.5°

Submodels

Motor Length	Length of Gearbox	Ratio	Efficiency
26 mm
34 mm
40 mm	29.1 mm	3.71	90%
	36.8 mm	13.76	80%
	44.6 mm	51	70%
		71
		99.5
		139

Available Options

Encoder

Brake

Gearbox

Shaft

Customization Available: If our standard motor cannot meet your needs, we can customize the motor according to your requirements. Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.
