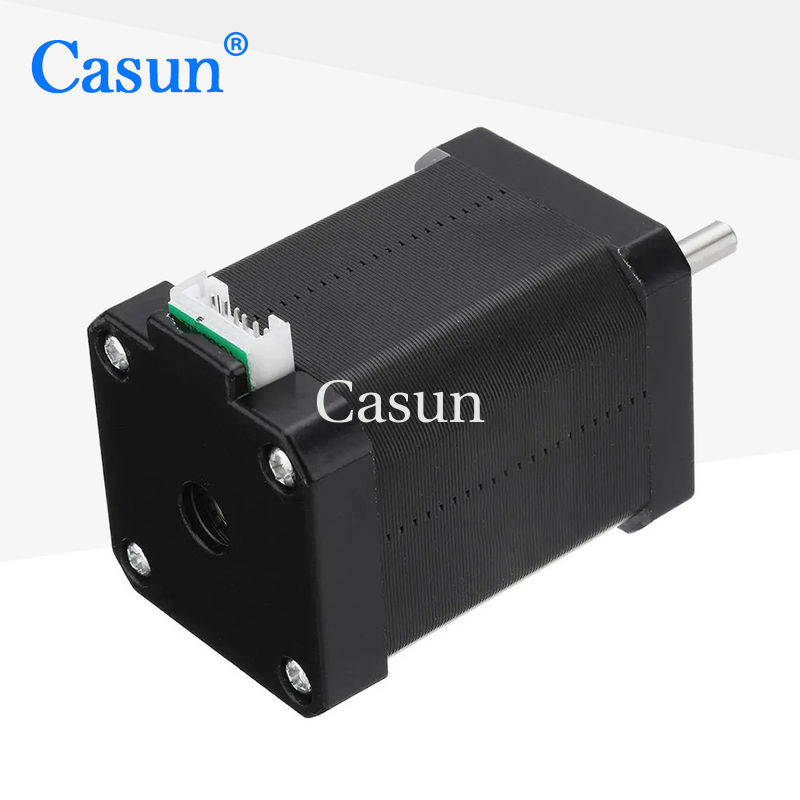

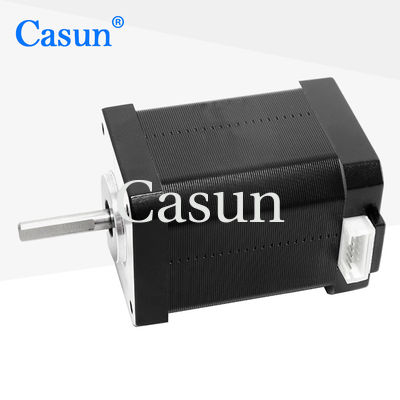

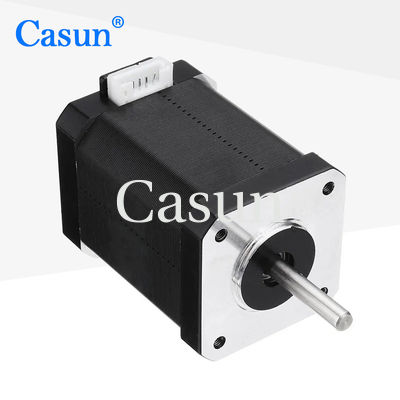

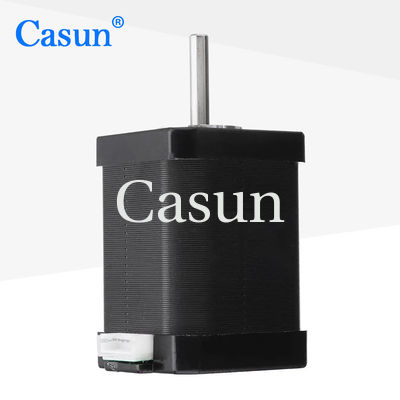

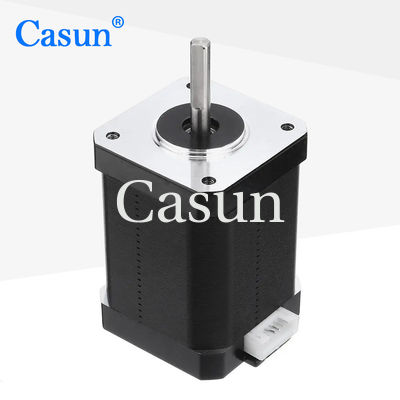

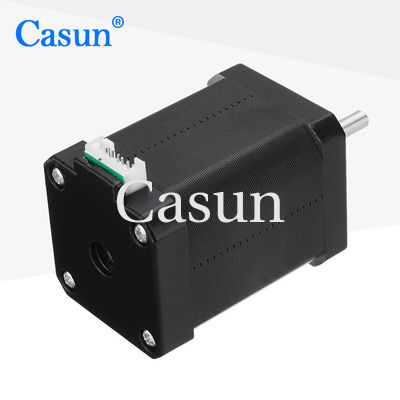

【17HS6401S】NEMA 17 stepper motor CNC router hybrid Unipolar 1.7A 60mm for 3D Printer Monitor Equipment
  • 【17HS6401S】NEMA 17 stepper motor CNC router hybrid Unipolar 1.7A 60mm for 3D Printer Monitor Equipment
  • 【17HS6401S】NEMA 17 stepper motor CNC router hybrid Unipolar 1.7A 60mm for 3D Printer Monitor Equipment
  • 【17HS6401S】NEMA 17 stepper motor CNC router hybrid Unipolar 1.7A 60mm for 3D Printer Monitor Equipment
  • 【17HS6401S】NEMA 17 stepper motor CNC router hybrid Unipolar 1.7A 60mm for 3D Printer Monitor Equipment
  • 【17HS6401S】NEMA 17 stepper motor CNC router hybrid Unipolar 1.7A 60mm for 3D Printer Monitor Equipment
  • 【17HS6401S】NEMA 17 stepper motor CNC router hybrid Unipolar 1.7A 60mm for 3D Printer Monitor Equipment

【17HS6401S】NEMA 17 stepper motor CNC router hybrid Unipolar 1.7A 60mm for 3D Printer Monitor Equipment

Place of Origin CHINA
Brand Name Casun
Certification CE,ROHS,ISO
Model Number 42SHD0828-24BH
Product Details
Step Angel:
1.8°
Holding Torque:
650mN.m
Current:
1.7A
Motor Length:
60mm
Shaft:
Milling Flat Shaft 24mm Length
Payment & Shipping Terms
Minimum Order Quantity
1PC
Price
$3.14-$5
Packaging Details
Carton:36x29x14cm
Delivery Time
7-15 days
Payment Terms
D/A, T/T, L/C, D/P
Supply Ability
40000+PCS+Month
Product Description

The NEMA 17 stepper motor adopts the principle of step-by-step motion, so it can achieve very precise position control.

Medical devices, robots, automated production lines.



Features:

  • Specializing in tailor-made services is our expertise

  • For high-tech industry and electronic industry equipment

  • Professional drivetrain solution specialist

  • Dealers are actively sought after

  • Each of our stepper motor models is suitable for a wide range of applications





Motor Specifications

Step Angel

1.8 °

Fram Size

42 mm

Number of Phase

2 Phase

Rated Current

1.7 A

Holding Torque

650 mN.m

Resistance

1.5 ohm

Inductance

2.8 mH

Rotor Inertia

102 g-cm²

Motor weight

0.48 kg

Number of leads

4

Connection

Bipolar

Appearance

【17HS6401S】NEMA 17 stepper motor CNC router hybrid Unipolar 1.7A 60mm for 3D Printer Monitor Equipment 0

Dimensions

【17HS6401S】NEMA 17 stepper motor CNC router hybrid Unipolar 1.7A 60mm for 3D Printer Monitor Equipment 1
Operating Specifications

Step Angle: 1.8°

Maximum  Temperature :80°C maximum

Ambient Temperature: -20 °C to 50°C

Storage Temperature -20: °C to 100°C

Humidity Range (%) :85% or less, non-condensing

Magnet Wire Insulation :Class B 130 deg C

Insulation Resistance :100M Ohm at 500 VDC

Dielectric Strength :500 VDC for 1 min







Torque Curves









Submodels

Model Holding Torque Step Angle Motor Length Type of Shaft Rated Current
42SHD4950 0.13N.m 1.8° 20mm D Shaft-20mm 1.0A
42SHD4003 0.26N.m 1.8° 34mm D Shaft-20mm 0.4A
42SHD0261 0.45N.m 1.8° 40mm D Shaft-20mm 1.68A
42SHD4425 0.59N.m 1.8° 48mm D Shaft-24mm 2.0A
42SHD4813 0.8N.m 1.8° 60mm D Shaft-24mm 2.1A





Download

If our standard motor cannot meet your needs,

we can customize the motor according to your needs


Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:

Encoder

Brake

Gearbox

Shaft

【17HS6401S】NEMA 17 stepper motor CNC router hybrid Unipolar 1.7A 60mm for 3D Printer Monitor Equipment 2 【17HS6401S】NEMA 17 stepper motor CNC router hybrid Unipolar 1.7A 60mm for 3D Printer Monitor Equipment 3 【17HS6401S】NEMA 17 stepper motor CNC router hybrid Unipolar 1.7A 60mm for 3D Printer Monitor Equipment 4 【17HS6401S】NEMA 17 stepper motor CNC router hybrid Unipolar 1.7A 60mm for 3D Printer Monitor Equipment 5
