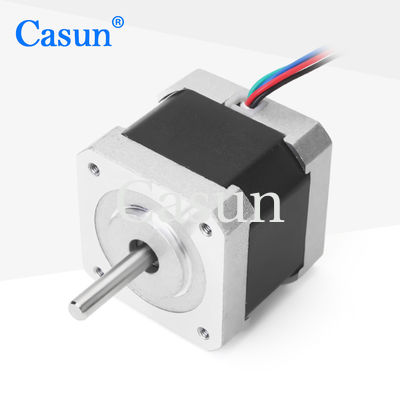

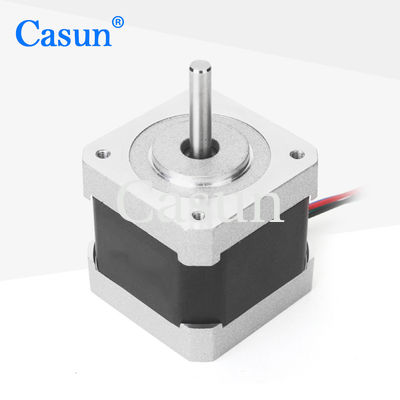

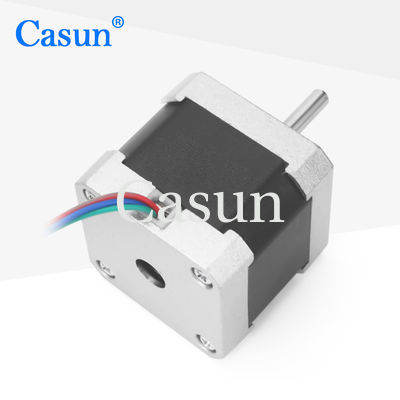

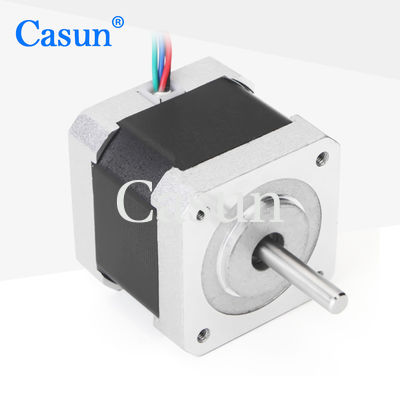

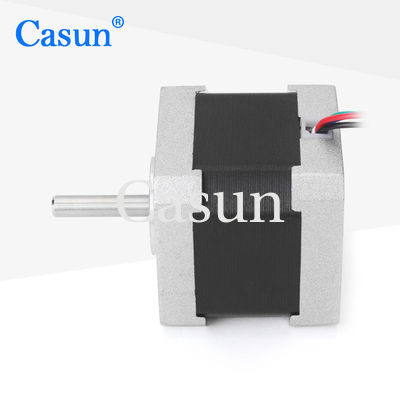

Nema 17 stepper motor voltage 3.4V 1.7Amp 400mN.m 0.3kg for Extruder 3D Printer

Nema 17 stepper motor voltage 3.4V 1.7Amp 400mN.m 0.3kg for Extruder 3D Printer

Brand Name:	Casun
Model Number:	42SHD4289-24
MOQ:	1PC
Price:	$4.0-$5.2
Payment Terms:	D/A, T/T, L/C, D/P
Supply Ability:	40000+PCS+Month

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

CE,ROSH,ISO

Step Angel:

1.8°

Holding Torque:

400mN.m

Current:

1.7A

Motor Length:

40mm

Shaft:

Round Shaft 24mm Length

Customized:

The Motor Can Be Designed &manufactured With Customized Request.

Packaging Details:

Carton:36x29x14cm

Highlight:

400mN.m Nema 17 stepper motor

3.4V Nema 17 stepper motor

1.7Amp Nema 17 stepper motor

Product Description

Nema 17 Stepper Motor - 3.4V 1.7A 400mN.m 0.3kg for Extruder 3D Printer

20x20x33mm 0.6A Casun Stepper Motor Nema 8 Mini Stepper Motor For Medical beauty equipment

Motor Specifications

Step Angle	1.8°
Frame Size	42mm
Number of Phase	2 Phase
Rated Current	1.7A
Holding Torque	400mN.m
Resistance	20ohm
Inductance	3mH
Rotor Inertia	57 g-cm²
Motor Weight	0.3 kg
Number of Leads	4
Connection	Bipolar

Appearance

Dimensions

Torque Curves

Torque curve diagrams available for technical reference

Download

Technical documentation and specifications available for download

Custom Motor Solutions

If our standard motor cannot meet your needs, we can customize the motor according to your requirements. Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, and more.

Available Options

Encoder

Brake

Gearbox

Connector

Please click the button below to tell us your requirements and get a customized quote.
