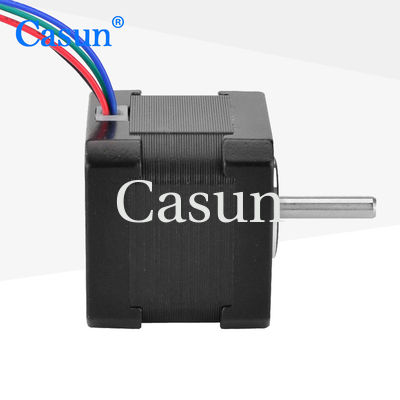

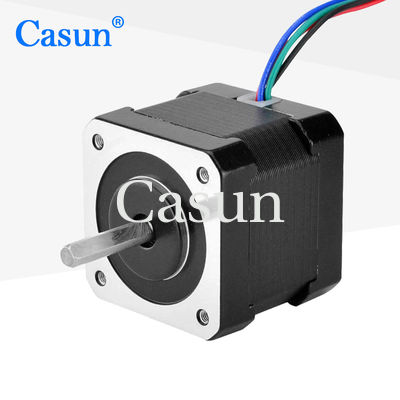

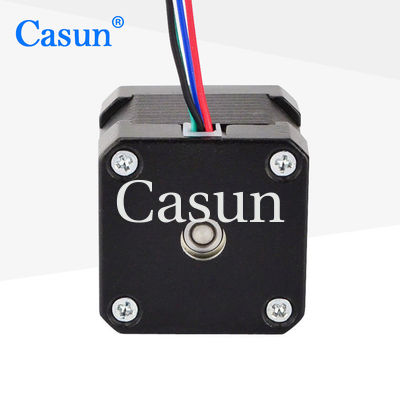

Nema17 Low price stepping motor voltage 3.75V 1.5Amp 500mN.m 0.24kg stepping motor for Sewing machine

name

Nema17 Low price stepping motor voltage 3.75V 1.5Amp 500mN.m 0.24kg stepping motor for Sewing machine

Brand Name: Casun
Model Number: 42SHD4217-24B
MOQ: 1PC
Price: $5.0-$6.2
Payment Terms: D/A, T/T, L/C, D/P
Supply Ability: 40000+PCS+Month
Detail Information
Product Description
Detail Information
Place of Origin:
CHINA
Certification:
CE,ROSH,ISO
Step Angel:
1.8°
Holding Torque:
500mN.m
Current:
1.5A
Motor Length:
40mm
Shaft:
Round Shaft 20mm Length
Customized:
The Motor Can Be Designed &manufactured With Customized Request.
Customized:
The Motor Can Be Designed &manufactured With Customized Request.
Packaging Details:
Carton:36x29x14cm
Highlight:

500mN.m Nema17 Stepping Motor

,

1.5Amp Nema17 Stepping Motor

,

3.75V Nema17 Stepping Motor

Product Description

20x20x33mm 0.6A Casun Stepper Motor Nema 8 Mini Stepper Motor For Medical beauty equipment

Motor Specifications



Step Angel



1.8 °

Fram Size



42mm

Number of Phase



2 Phase

Rated Current



1.5A

Holding Torque



500mN.m

Resistance



2.2ohm

Inductance



5mH

Rotor Inertia



57 g-cm²

Motor weight



0.24kg

Number of leads



4

Connection



Bipolar





Appearance

Nema17 Low price stepping motor voltage 3.75V 1.5Amp 500mN.m 0.24kg stepping motor for Sewing machine 0

Dimensions

Nema17 Low price stepping motor voltage 3.75V 1.5Amp 500mN.m 0.24kg stepping motor for Sewing machine 1



Torque Curves



















Download









If our standard motor cannot meet your needs,

we can customize the motor according to your needs


Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:
Encoder | Brake | Gearbox | Connector

Please click the "Get  a quote" button below to tell us your requirements.
