Home > products > Hybrid Stepper Motor > Nema 17 Stepper Motor 90mN.m 1A 4-Lead 0.2kg for robot arm STM

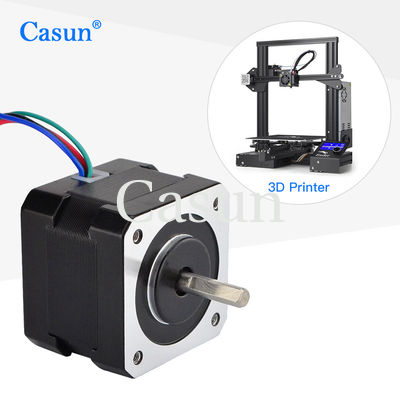

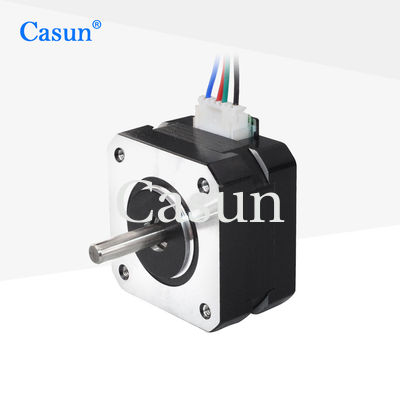

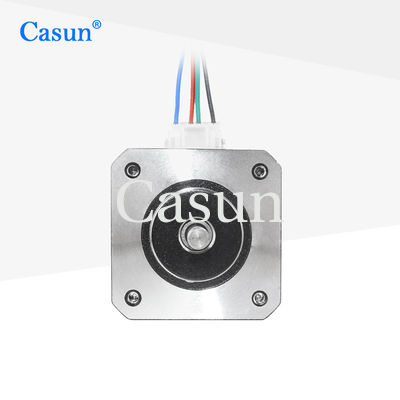

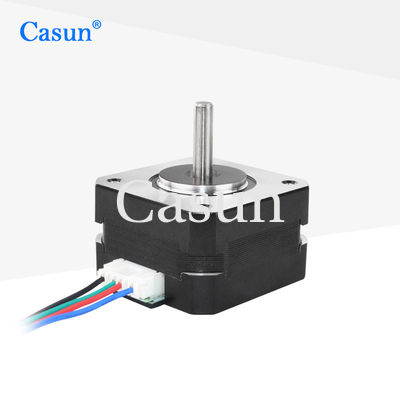

Nema 17 Stepper Motor 90mN.m 1A 4-Lead 0.2kg for robot arm STM
Nema 17 Stepper Motor 90mN.m 1A 4-Lead 0.2kg for robot arm STM
Nema 17 Stepper Motor 90mN.m 1A 4-Lead 0.2kg for robot arm STM
Nema 17 Stepper Motor 90mN.m 1A 4-Lead 0.2kg for robot arm STM
Nema 17 Stepper Motor 90mN.m 1A 4-Lead 0.2kg for robot arm STM

Nema 17 Stepper Motor 90mN.m 1A 4-Lead 0.2kg for robot arm STM

Product Details

Place of Origin: CHINA

Brand Name: Casun

Certification: CE,ROSH,ISO

Model Number: 42SHD4910-14B

Payment & Shipping Terms

Minimum Order Quantity: 1PC

Price: $3-$4

Packaging Details: Carton:36x29x14cm

Delivery Time: 7-15 days

Payment Terms: D/A, T/T, L/C, D/P

Supply Ability: 40000+PCS+Month

Get Best Price

Product Details

Product Description
Product Details
High Light:
Step Angel:
1.8°
Holding Torque:
90mN.m
Current:
1A
Motor Length:
21mm
Shaft:
Round Shaft 13.6mm Length
Customized:
The Motor Can Be Designed &manufactured With Customized Request.
Step Angel:
1.8°
Holding Torque:
90mN.m
Current:
1A
Motor Length:
21mm
Shaft:
Round Shaft 13.6mm Length
Customized:
The Motor Can Be Designed &manufactured With Customized Request.
Product Description

20x20x33mm 0.6A Casun Stepper Motor Nema 8 Mini Stepper Motor For Medical beauty equipment

Motor Specifications



Step Angel



1.8 °

Fram Size



42mm

Number of Phase



2 Phase

Rated Current



1A

Holding Torque



90mN.m

Resistance



3.3ohm

Inductance



3mH

Rotor Inertia



15g-cm²

Motor weight



0.2 kg

Number of leads



4

Connection



Bipolar





Appearance

Nema 17 Stepper Motor 90mN.m 1A 4-Lead 0.2kg for robot arm STM 0

Dimensions

Nema 17 Stepper Motor 90mN.m 1A 4-Lead 0.2kg for robot arm STM 1



Torque Curves



















Download









If our standard motor cannot meet your needs,

we can customize the motor according to your needs


Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:
Encoder | Brake | Gearbox | Connector

Please click the "Get  a quote" button below to tell us your requirements.
