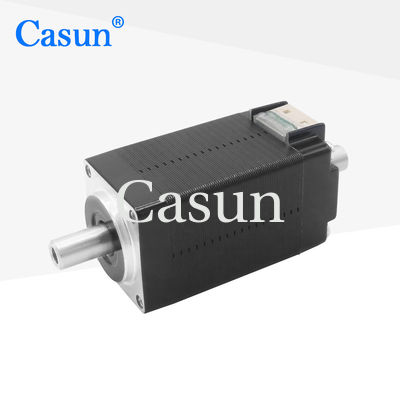

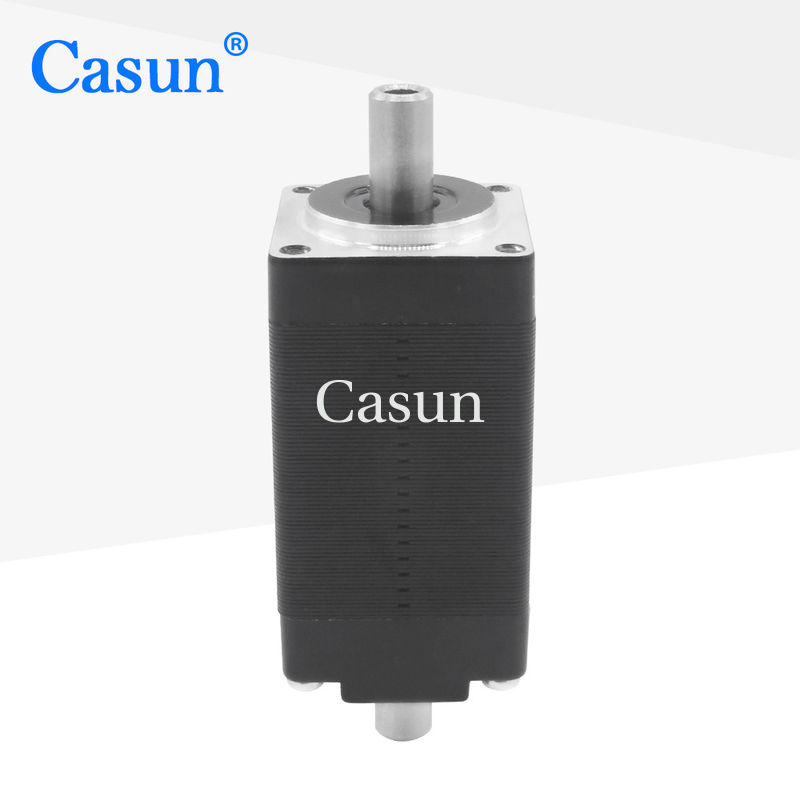

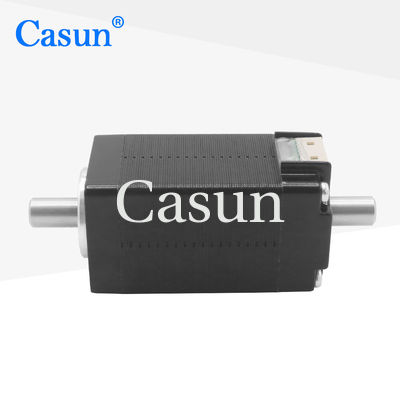

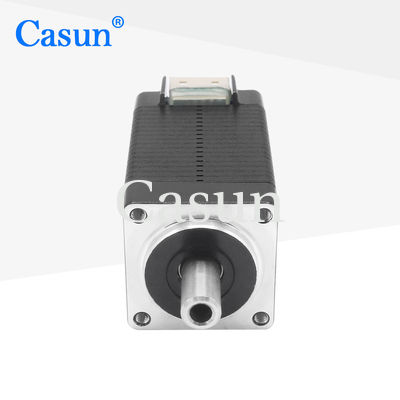

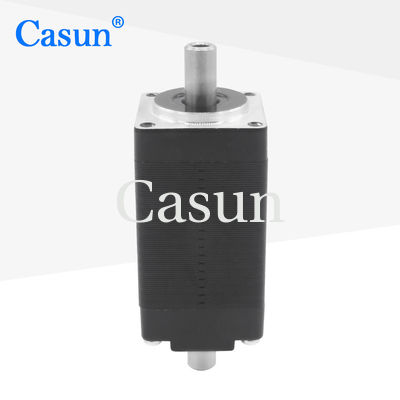

0.6A 5.4V Dual Shaft Stepper Motor Nema 11 28x28x38mm For Medical Machine

name

0.6A 5.4V Dual Shaft Stepper Motor Nema 11 28x28x38mm For Medical Machine

Brand Name: Casun
Model Number: 20SHD0250-10SK
MOQ: 1PC
Price: $6.86-$10.5
Payment Terms: D/A, T/T, L/C, D/P
Supply Ability: 40000+PCS+Month
Detail Information
Product Description
Detail Information
Place of Origin:
China
Certification:
CE,ROHS,ISO
Steper Angle:
1.8degree
Phase:
2
Rated Voltage:
5.4V
Rate Current:
0.6A
Holding Torque:
32mN.m
Detent Torque:
2mN.m
Customized:
The Motor Can Be Designed &manufactured With Customized Request.
Packaging Details:
Carton:36x29x14cm
Highlight:

0.6A 5.4V Dual Shaft Stepper Motor

,

Dual Shaft Stepper Motor Nema 11

,

38mm Stepper Motor Nema 11

Product Description

28x28x38mm 0.6A Motor paso a paso 5.4V Nema 11 Dual Hollow Shaft Stepping Motor for Medical Machine

The 20mm Hybrid Stepper Motor Series offers powerful holding torque in a variety of sizes.

Use with a microstepping driver to reduce vibration and achieve higher step resolution.

Choose a baseline version or request your own customized configuration.



Features:

  • Bipolar or unipolar versions available

  • Hybrid stepper construction

  • Available in single or double shaft versions

  • CE and RoHS approved

  • Customizations on request

Dimensions

0.6A 5.4V Dual Shaft Stepper Motor Nema 11 28x28x38mm For Medical Machine 0







Motor Specifications



Step Angel



1.8 °

Fram Size



42 mm

Number of Phase



2 Phase

Rated Current



0.6 A

Holding Torque



32 mN.m

Resistance



9.0 Om

Inductance



3.2mH

Rotor Inertia



3.8 g-cm²

Motor weight



0.1 kg

Number of leads



4

Connection



Bipolar



Operating Specifications





Step Angle: 1.8°

Maximum  Temperature :80°C maximum

Ambient Temperature: -20 °C to 50°C

Storage Temperature -20: °C to 100°C

Humidity Range (%) :85% or less, non-condensing

Magnet Wire Insulation :Class B 130 deg C

Insulation Resistance :100M Ohm at 500 VDC

Dielectric Strength :500 VDC for 1 min









Torque Curves





Submodels



Casun Model General Model Angle Motor Length Rated Current Holding Torque
B20SHD4353-10 8HS11-0204S 1.8° 28mm 0.2A 0.016 N.m
  8HS12-0506S 1.8° 28mm 0.5A 0.018N.m
20SHD0501-10 8HS13-0604S 1.8° 34.3mm 0.6A 0.018N.m
  8HS15-0304S 1.8° 38mm 0.3A 0.03N.m
20SHD4255-10X 8HS15-0604S 1.8° 38mm 0.6A 0.04N.m
20SHD4101-20   1.8° 42mm 0.8A 0.03N.m



Download







If our standard motor cannot meet your needs,

we can customize the motor according to your needs


Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:
            Encoder          |               Brake           |              Gearbox            |           Shaft

0.6A 5.4V Dual Shaft Stepper Motor Nema 11 28x28x38mm For Medical Machine 1 0.6A 5.4V Dual Shaft Stepper Motor Nema 11 28x28x38mm For Medical Machine 2 0.6A 5.4V Dual Shaft Stepper Motor Nema 11 28x28x38mm For Medical Machine 3 0.6A 5.4V Dual Shaft Stepper Motor Nema 11 28x28x38mm For Medical Machine 4





Please click the "Get  a quote" button below to tell us your requirements.
