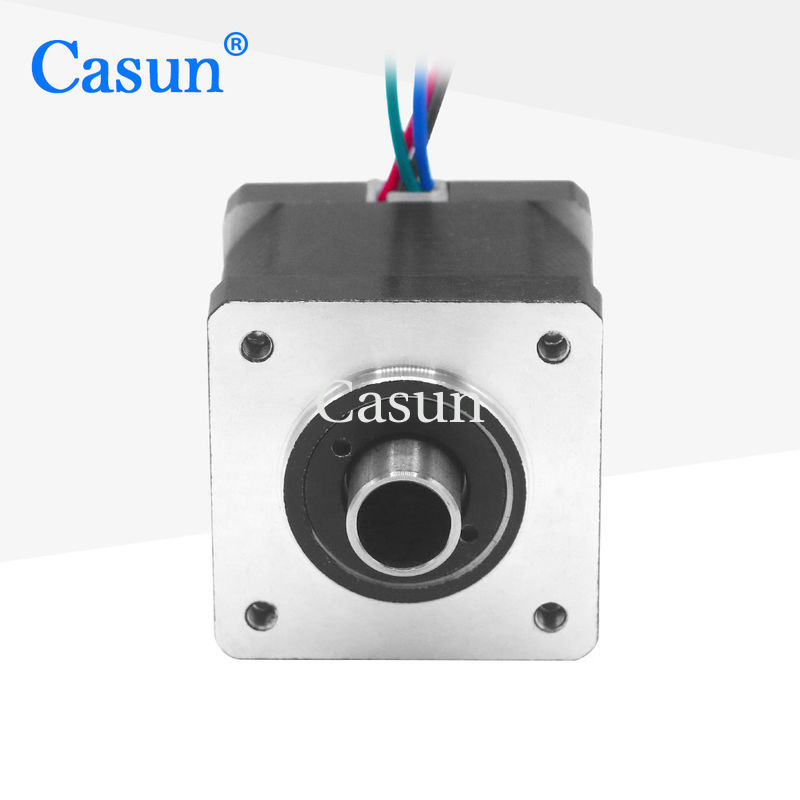

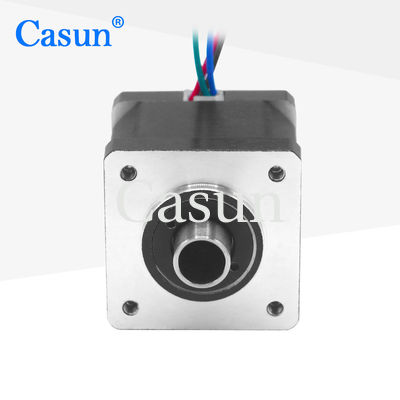

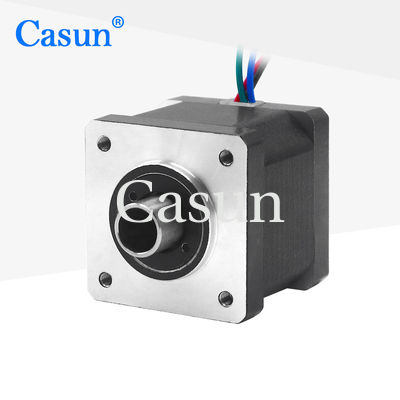

0.19N.M 1A Hollow Shaft Stepper Motor Nema 14 34mm Body 2 Phase 1.8 Deg

name

0.19N.M 1A Hollow Shaft Stepper Motor Nema 14 34mm Body 2 Phase 1.8 Deg

Brand Name: Casun
Model Number: P35SHD4150-9SKH
MOQ: 1PC
Price: $4.14-$6.98
Payment Terms: D/A, T/T, L/C, D/P
Supply Ability: 40000+PCS+Month
Detail Information
Product Description
Detail Information
Place of Origin:
CHINA
Certification:
CE,ROHS,ISO
Step Angel:
1.8°
Holding Torque:
190mN.m
Current:
1.0A
Motor Length:
34mm
Shaft:
Double Hollow 9mm Length
Customized:
The Motor Can Be Designed &manufactured With Customized Request.
Packaging Details:
Carton:36x29x14cm
Highlight:

1A Hollow Shaft Stepper Motor

,

0.19N.M Hollow Shaft Stepper Motor

,

Stepper Motor Nema 14 34mm

Product Description

The 35mm dual axis hollow stepper motor has advantages such as hollow structure, high accuracy, low noise, and fast response

Use with a microstepping driver to reduce vibration and achieve higher step resolution.

Choose a baseline version or request your own customized configuration.



Features:

  • Expert in professional drivetrain solutions

  • Hybrid stepper building

  • Available in variations with a single or double shaft

  • Expert manufacturing research and development

  • Upon request, modifications





Motor Specifications

Step Angel

1.8 °

Fram Size

35 mm

Number of Phase

2 Phase

Rated Current

1.0 A

Holding Torque

190 mN.m

Resistance

3.5 ohm

Inductance

3.6 mH

Rotor Inertia

20 g-cm²

Motor weight

0.18 kg

Number of leads

4

Connection

Bipolar



Appearance



0.19N.M 1A Hollow Shaft Stepper Motor Nema 14 34mm Body 2 Phase 1.8 Deg 0

Dimensions

0.19N.M 1A Hollow Shaft Stepper Motor Nema 14 34mm Body 2 Phase 1.8 Deg 1







Torque Curves









Download



If our standard motor cannot meet your needs,

we can customize the motor according to your needs


Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:
Encoder | Brake | Gearbox | Connector

Please click the "Get  a quote" button below to tell us your requirements.
