NEMA 17 TWO-PHASE 1.8° 42 STEPPER MOTOR 60MM BODY 2.1A CNC

name

NEMA 17 TWO-PHASE 1.8° 42 STEPPER MOTOR 60MM BODY 2.1A CNC

Brand Name: Casun
Model Number: 42SHD4813-24BH
MOQ: 1PC
Price: $3.14-$5
Payment Terms: D/A, T/T, L/C, D/P
Supply Ability: 40000+PCS+Month
Detail Information
Product Description
Detail Information
Place of Origin:
CHINA
Certification:
CE,ROHS,ISO
Step Angel:
1.8°
Holding Torque:
800mN.m
Current:
2.1A
Motor Length:
60mm
Shaft:
Milling Flat Shaft 24mm Length
Customized:
The Motor Can Be Designed &manufactured With Customized Request.
Packaging Details:
Carton:36x29x14cm
Highlight:

60MM BODY NEMA 17 STEPPER MOTOR

,

2.1A NEMA 17 STEPPER MOTOR

,

42 NEMA 17 STEPPER MOTOR

Product Description

The 42mm stepper motor is relatively compact in size and suitable for installation and layout in limited space.

Industrial automation 3D printers, textile machinery, medical equipment.



Features:

  • With 12 years of operation in China, we have served over 800 customers

  • Specializing in tailor-made services is our expertise

  • Professional drivetrain solution specialist

  • Dealers are actively sought!

  • We offer custom services and accept contract manufacturing





Motor Specifications

Step Angel

1.8 °

Fram Size

42 mm

Number of Phase

2 Phase

Rated Current

2.1 A

Holding Torque

800 mN.m

Resistance

1.6 ohm

Inductance

3 mH

Rotor Inertia

102 g-cm²

Motor weight

0.45 kg

Number of leads

4

Connection

Bipolar

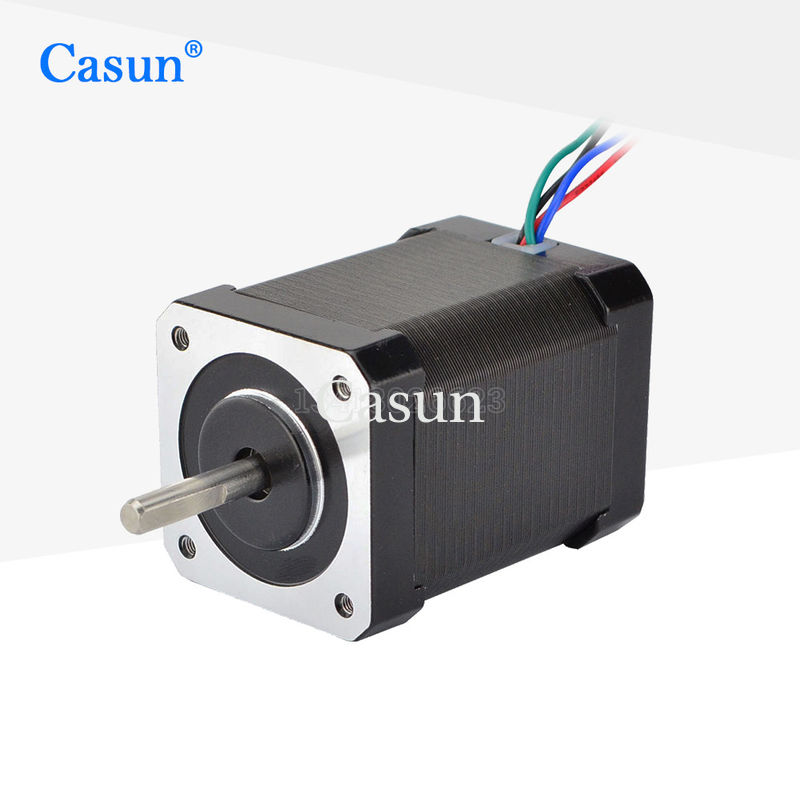

Appearance

NEMA 17 TWO-PHASE 1.8° 42 STEPPER MOTOR 60MM BODY 2.1A CNC 0

Dimensions

NEMA 17 TWO-PHASE 1.8° 42 STEPPER MOTOR 60MM BODY 2.1A CNC 1


Operating Specifications

Step Angle: 1.8°

Maximum  Temperature :80°C maximum

Ambient Temperature: -20 °C to 50°C

Storage Temperature -20: °C to 100°C

Humidity Range (%) :85% or less, non-condensing

Magnet Wire Insulation :Class B 130 deg C

Insulation Resistance :100M Ohm at 500 VDC

Dielectric Strength :500 VDC for 1 min







Torque Curves









Submodels

Model Holding Torque Step Angle Motor Length Type of Shaft Rated Current
42SHD4950 0.13N.m 1.8° 20mm D Shaft-20mm 1.0A
42SHD4003 0.26N.m 1.8° 34mm D Shaft-20mm 0.4A
42SHD0261 0.45N.m 1.8° 40mm D Shaft-20mm 1.68A
42SHD4425 0.59N.m 1.8° 48mm D Shaft-24mm 2.0A
42SHD4813 0.8N.m 1.8° 60mm D Shaft-24mm 2.1A





Download

If our standard motor cannot meet your needs,

we can customize the motor according to your needs


Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:

Encoder

Brake

Gearbox

Shaft
NEMA 17 TWO-PHASE 1.8° 42 STEPPER MOTOR 60MM BODY 2.1A CNC 2 NEMA 17 TWO-PHASE 1.8° 42 STEPPER MOTOR 60MM BODY 2.1A CNC 3 NEMA 17 TWO-PHASE 1.8° 42 STEPPER MOTOR 60MM BODY 2.1A CNC 4 NEMA 17 TWO-PHASE 1.8° 42 STEPPER MOTOR 60MM BODY 2.1A CNC 5



Please click the "Get a quote" button below to tell us your requirements.
