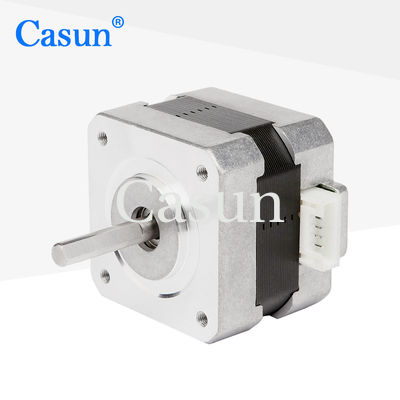

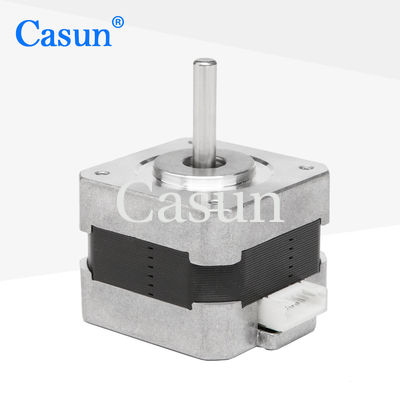

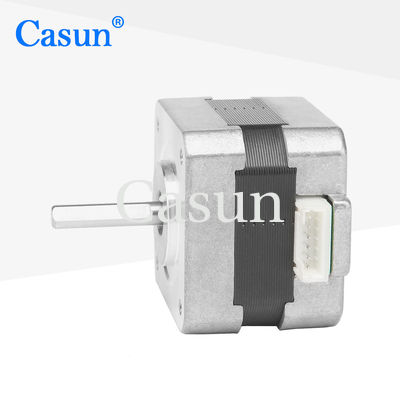

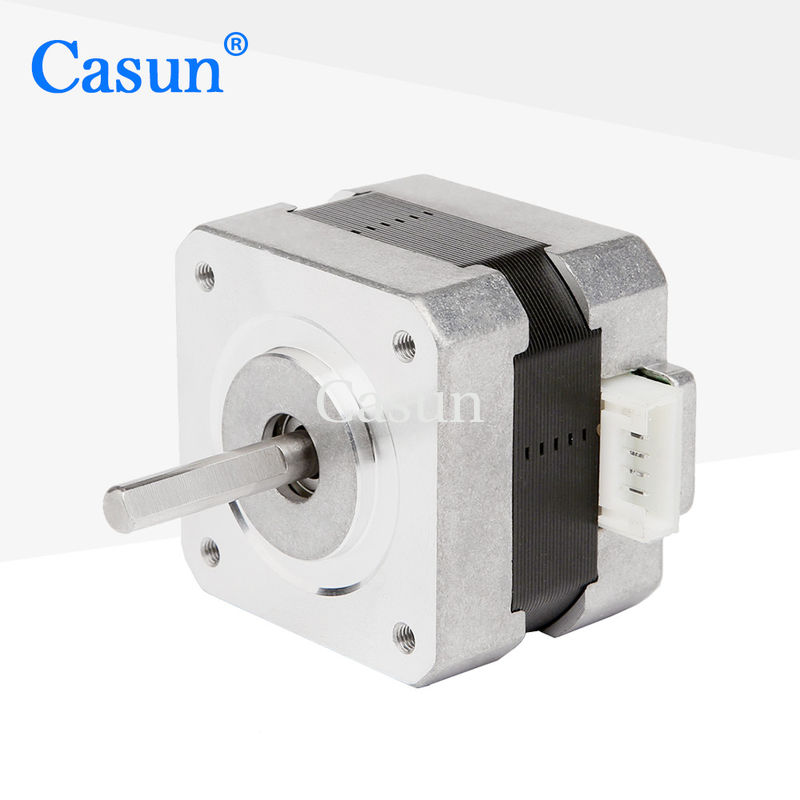

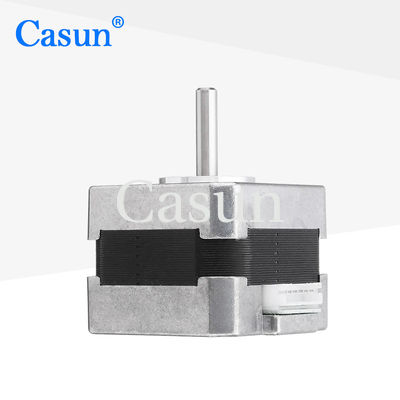

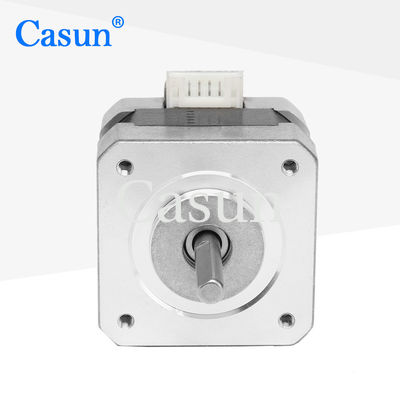

42*42*34mm Steppting Motor NEMA 17 Two Phase 12V 0.3N.m for 3D Printer

The 42mm Hybrid Stepper Motor Series offers powerful holding torque in a variety of sizes.

In the field of robotics, 42mm stepper motors are often used to control joint motion.

Features:

• High torque and high precision

• High-tech industry and electronic industry equipment necessitate multiple international certifications

• Available in single or double shaft versions

• We are open to contract manufacturing arrangements

• We actively pursue dealers!

Motor Specifications

Operating Specifications

Step Angle: 1.8°

Maximum  Temperature :80°C maximum

Ambient Temperature: -20 °C to 50°C

Storage Temperature -20: °C to 100°C

Humidity Range (%) :85% or less, non-condensing

Magnet Wire Insulation :Class B 130 deg C

Insulation Resistance :100M Ohm at 500 VDC

Dielectric Strength :500 VDC for 1 min

Torque Curves

Submodels

Download

If our standard motor cannot meet your needs,

we can customize the motor according to your needs

Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:

Encoder	Brake	Gearbox	Shaft

Please click the "Get a quote" button below to tell us your requirements.
