NEMA 17 Hybrid Stepper Motor 2 phase 42*42*21mm Ultrathin Body 9Ncm for CNC Kit
  • NEMA 17 Hybrid Stepper Motor 2 phase 42*42*21mm Ultrathin Body 9Ncm for CNC Kit
  • NEMA 17 Hybrid Stepper Motor 2 phase 42*42*21mm Ultrathin Body 9Ncm for CNC Kit
  • NEMA 17 Hybrid Stepper Motor 2 phase 42*42*21mm Ultrathin Body 9Ncm for CNC Kit
  • NEMA 17 Hybrid Stepper Motor 2 phase 42*42*21mm Ultrathin Body 9Ncm for CNC Kit

NEMA 17 Hybrid Stepper Motor 2 phase 42*42*21mm Ultrathin Body 9Ncm for CNC Kit

Place of Origin CHINA
Brand Name Casun
Certification CE,ROHS,ISO
Model Number 42SHD4910-14B
Product Details
Step Angel:
1.8°
Holding Torque:
90mN.m
Current:
1.0A
Motor Length:
21mm
Shaft:
Milling Flat Shaft 14mm Length
Payment & Shipping Terms
Minimum Order Quantity
1PC
Price
$3.14-$5
Packaging Details
Carton:36x29x14cm
Delivery Time
7-15 days
Payment Terms
D/A, T/T, L/C, D/P
Supply Ability
40000+PCS+Month
Product Description

NEMA 17 stepper motors typically have lower costs, making them highly attractive in cost sensitive applications.

Use with a microstepping driver to reduce vibration and achieve higher step resolution.



Features:

  • High torque and high precision

  • For high-tech industry and electronic industry equipment

  • Available in single or double shaft versions

  • Professional drivetrain solution specialist

  • Our engineering team will reach out within 48 hours to deliver the optimal solution

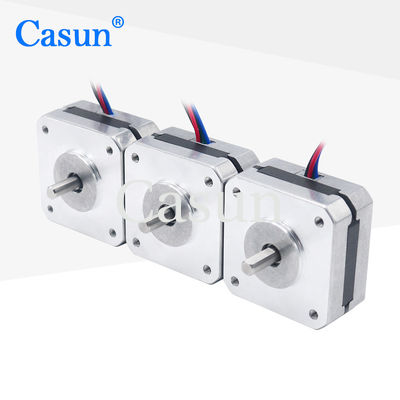

Appearance

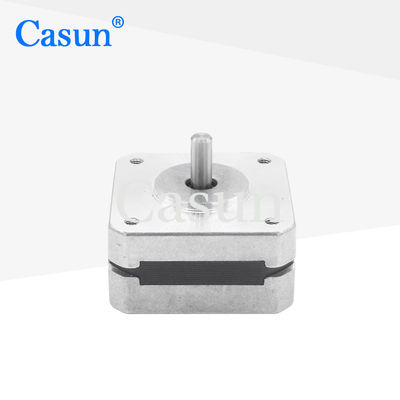

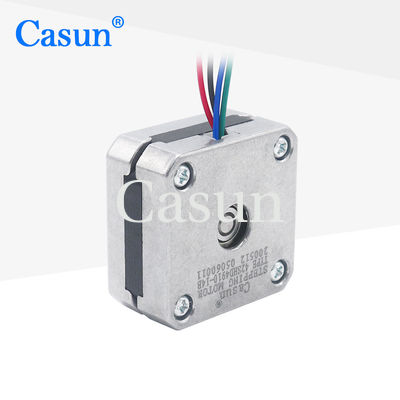

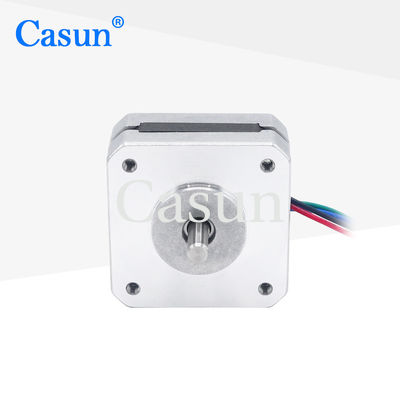

NEMA 17 Hybrid Stepper Motor 2 phase 42*42*21mm Ultrathin Body 9Ncm for CNC Kit 0

Dimensions

NEMA 17 Hybrid Stepper Motor 2 phase 42*42*21mm Ultrathin Body 9Ncm for CNC Kit 1

Motor Specifications



Step Angel

1.8 °

Fram Size

42 mm

Number of Phase

2 Phase

Rated Current

1.0 A

Holding Torque

90 mN.m

Resistance

3.3 ohm

Inductance

3.0 mH

Rotor Inertia

38 g-cm²

Motor weight

0.2 kg

Number of leads

4

Connection

Bipolar

Operating Specifications

Step Angle: 1.8°

Maximum  Temperature :80°C maximum

Ambient Temperature: -20 °C to 50°C

Storage Temperature -20: °C to 100°C

Humidity Range (%) :85% or less, non-condensing

Magnet Wire Insulation :Class B 130 deg C

Insulation Resistance :100M Ohm at 500 VDC

Dielectric Strength :500 VDC for 1 min







Torque Curves













Submodels

Model Holding Torque Step Angle Motor Length Type of Shaft Rated Current
42SHD4950 0.13N.m 1.8° 20mm D Shaft-20mm 1.0A
42SHD4003 0.26N.m 1.8° 34mm D Shaft-20mm 0.4A
42SHD0261 0.45N.m 1.8° 40mm D Shaft-20mm 1.68A
42SHD4425 0.59N.m 1.8° 48mm D Shaft-24mm 2.0A
42SHD4813 0.8N.m 1.8° 60mm D Shaft-24mm 2.1A





Download

If our standard motor cannot meet your needs,

we can customize the motor according to your needs


Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:

Encoder

Brake

Gearbox

Shaft

NEMA 17 Hybrid Stepper Motor 2 phase 42*42*21mm Ultrathin Body 9Ncm for CNC Kit 2 NEMA 17 Hybrid Stepper Motor 2 phase 42*42*21mm Ultrathin Body 9Ncm for CNC Kit 3 NEMA 17 Hybrid Stepper Motor 2 phase 42*42*21mm Ultrathin Body 9Ncm for CNC Kit 4 NEMA 17 Hybrid Stepper Motor 2 phase 42*42*21mm Ultrathin Body 9Ncm for CNC Kit 5



Please click the "Get a quote" button below to tell us your requirements.
