Casun 550mN.m Motor paso a paso Two Phase Stepper Motor 424248mm NEMA 17 1.8 Degree

Casun 550mN.m Motor paso a paso Two Phase Stepper Motor 424248mm NEMA 17 1.8 Degree

Brand Name:	Casun
Model Number:	42SHD0425-24B
MOQ:	1PC
Price:	$3.14-$5
Payment Terms:	D/A, T/T, L/C, D/P
Supply Ability:	40000+PCS+Month

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

CE,ROHS,ISO

Step Angel:

1.8°

Holding Torque:

550mN.m

Current:

2.5A

Motor Length:

48mm

Shaft:

Milling Flat Shaft 15mm Length

Customized:

The Motor Can Be Designed &manufactured With Customized Request.

Packaging Details:

Carton:36x29x14cm

Highlight:

424248mm NEMA 17 Stepper Motor

Two Phase NEMA 17 Stepper Motor

Product Description

Casun 550mN.m Two Phase Stepper Motor 42×42×48mm NEMA 17 1.8 Degree

NEMA 17 two-phase 1.8° 42 stepper motor with 48mm body length, 2.5A rated current, and 0.55Nm holding torque. Ideal for CMM and textile equipment applications.

The 42mm Hybrid Stepper Motor Series delivers powerful holding torque in various sizes. When paired with a microstepping driver, it reduces vibration and achieves higher step resolution. Available in baseline versions or customized configurations.

Key Features

Bipolar or unipolar versions available
Designed for high-tech and electronic industry equipment
Available in single or double shaft versions
Professional research and development manufacturing
Established in China for 12 years, serving over 800 customers

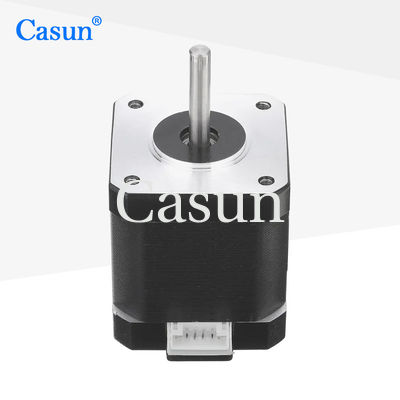

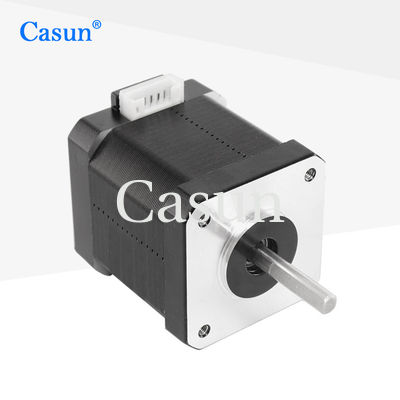

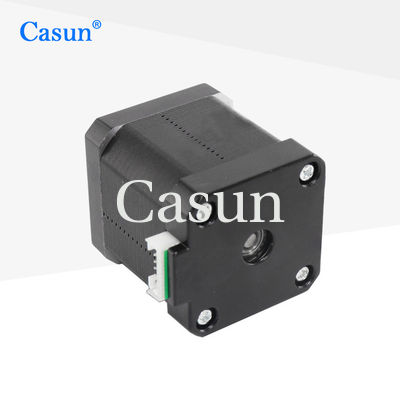

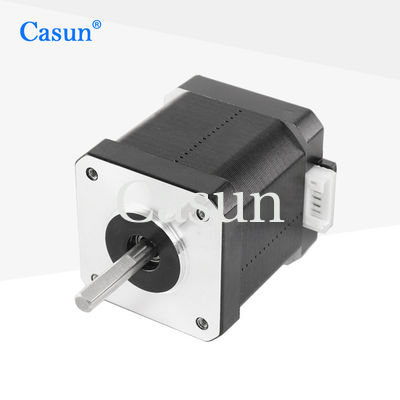

Appearance

Dimensions

Motor Specifications

Step Angle	1.8°
Frame Size	42 mm
Number of Phase	2 Phase
Rated Current	2.5 A
Holding Torque	550 mN.m
Resistance	2.0 ohm
Inductance	2.4 mH
Rotor Inertia	82 g-cm²
Motor Weight	0.42 kg
Number of Leads	4
Connection	Bipolar

Operating Specifications

Step Angle	1.8°
Maximum Temperature	80°C maximum
Ambient Temperature	-20°C to 50°C
Storage Temperature	-20°C to 100°C
Humidity Range	85% or less, non-condensing
Magnet Wire Insulation	Class B 130°C
Insulation Resistance	100M Ohm at 500 VDC
Dielectric Strength	500 VDC for 1 min

Submodels

Model	Holding Torque	Step Angle	Motor Length	Type of Shaft	Rated Current
42SHD4950	0.13N.m	1.8°	20mm	D Shaft-20mm	1.0A
42SHD4003	0.26N.m	1.8°	34mm	D Shaft-20mm	0.4A
42SHD0261	0.45N.m	1.8°	40mm	D Shaft-20mm	1.68A
42SHD4425	0.59N.m	1.8°	48mm	D Shaft-24mm	2.0A
42SHD4813	0.8N.m	1.8°	60mm	D Shaft-24mm	2.1A

Available Options

Encoder

Brake

Gearbox

Shaft

Frequently Asked Questions

1. Who are we?

We are based in Guangdong, China, established in 2011. We serve domestic markets (63%), Western Europe (12%), North America (9%), Eastern Asia (8%), and other global regions. Our office employs 51-100 people.

2. How can we guarantee quality?

We provide pre-production samples before mass production and conduct final inspections before shipment.

3. What can you buy from us?

Stepper Motors and BLDC Motors.

4. Why should you buy from us instead of other suppliers?

We specialize in producing and selling stepper motors for over 11 years.

5. What services can we provide?

Accepted Delivery Terms: FOB, CFR, CIF, EXW, Express Delivery. Accepted Payment Currency: USD, CNY. Accepted Payment Type: T/T, L/C, D/P D/A, PayPal. Languages Spoken: English, Chinese, Japanese.

Customization Available

If our standard motors cannot meet your requirements, we can customize motors according to your specific needs. Customization options include special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, and more.
