China hybrid Short Body Nema 17 Bipolar Stepper Motor 20mm body 0.8A 100mN.m DIY CNC Extruder

Name: China hybrid Short Body Nema 17 Bipolar Stepper Motor 20mm body 0.8A 100mN.m DIY CNC Extruder
Brand: Casun
SKU: 42SHD4952-14BH
Price: 3.14 USD
Availability: InStock
Rating: 5 (184 reviews)

Place of Origin	CHINA
Brand Name	Casun
Certification	CE,ROHS,ISO
Model Number	42SHD4952-14BH

Product Details

Step Angel:

1.8

Holding Torque:

100mN.m

Current:

0.8A

Motor Length:

20mm

Shaft:

Milling Flat Shaft 13.6mm Length

Payment & Shipping Terms

Minimum Order Quantity

1PC

Price

$3.14-$5

Packaging Details

Carton:36x29x14cm

Delivery Time

7-15 days

Payment Terms

D/A, T/T, L/C, D/P

Supply Ability

40000+PCS+Month

Product Description

Provided an economical solution for achieving basic motion control requirements.

Mechanical processing, 3D printing, robotics technology.

Features:

Provide "multiple international certifications"
Our engineering team will reach out within 48 hours to present the optimal solution
Affer custom services
Professional drivetrain solution specialist
Seeking distributors

Motor Specifications

Step Angel	1.8 °
Fram Size	42 mm
Number of Phase	2 Phase
Rated Current	0.8 A
Holding Torque	100 mN.m
Resistance	3.3 ohm
Inductance	3.0 mH
Rotor Inertia	15 g-cm²
Motor weight	0.14 kg
Number of leads	4
Connection	Bipolar

Appearance

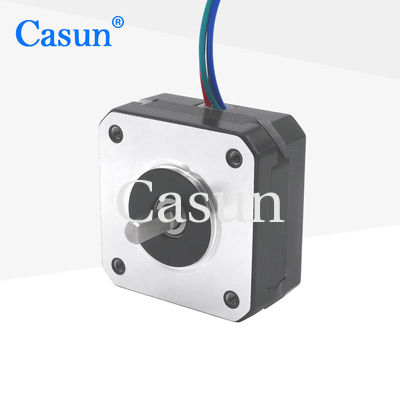

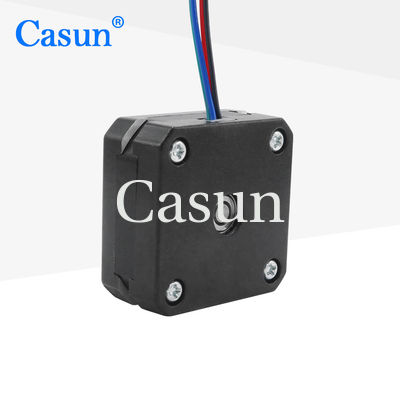

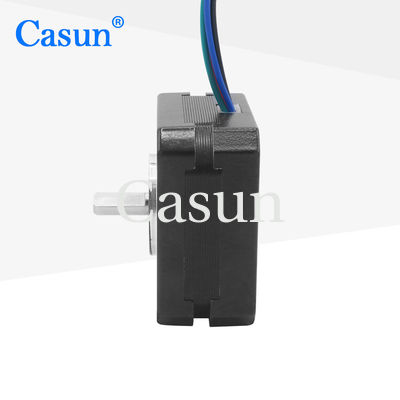

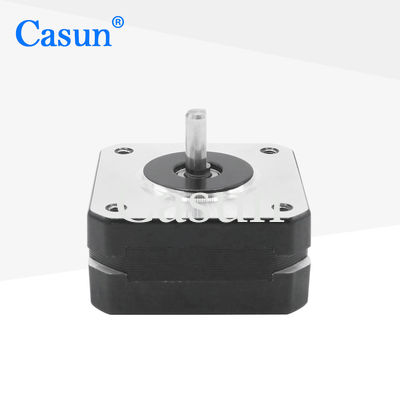

China hybrid Short Body Nema 17 Bipolar Stepper Motor 20mm body 0.8A 100mN.m DIY CNC Extruder 0

Dimensions

China hybrid Short Body Nema 17 Bipolar Stepper Motor 20mm body 0.8A 100mN.m DIY CNC Extruder 1

Operating Specifications

Step Angle: 1.8°

Maximum Temperature :80°C maximum

Ambient Temperature: -20 °C to 50°C

Storage Temperature -20: °C to 100°C

Humidity Range (%) :85% or less, non-condensing

Magnet Wire Insulation :Class B 130 deg C

Insulation Resistance :100M Ohm at 500 VDC

Dielectric Strength :500 VDC for 1 min

Torque Curves

Submodels

Model	Holding Torque	Step Angle	Motor Length	Type of Shaft	Rated Current
42SHD4950	0.13N.m	1.8°	20mm	D Shaft-20mm	1.0A
42SHD4003	0.26N.m	1.8°	34mm	D Shaft-20mm	0.4A
42SHD0261	0.45N.m	1.8°	40mm	D Shaft-20mm	1.68A
42SHD4425	0.59N.m	1.8°	48mm	D Shaft-24mm	2.0A
42SHD4813	0.8N.m	1.8°	60mm	D Shaft-24mm	2.1A

Download

If our standard motor cannot meet your needs,

we can customize the motor according to your needs

Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:

Encoder	Brake	Gearbox	Shaft

China hybrid Short Body Nema 17 Bipolar Stepper Motor 20mm body 0.8A 100mN.m DIY CNC Extruder

Provide "multiple international certifications"

Our engineering team will reach out within 48 hours to present the optimal solution

Affer custom services

Professional drivetrain solution specialist

Seeking distributors

Motor Specifications

Step Angel

1.8 °

Fram Size

42 mm

Number of Phase

2 Phase

Rated Current

0.8 A

Holding Torque

100 mN.m

Resistance

3.3 ohm

Inductance

3.0 mH

Rotor Inertia

15 g-cm²

Motor weight

0.14 kg

Number of leads

4

Connection

Bipolar

Appearance

Dimensions

Operating Specifications

Torque Curves

Submodels

If our standard motor cannot meet your needs,

we can customize the motor according to your needs

Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:

Encoder

Brake

Gearbox

Shaft

Please click the "Get a quote" button below to tell us your requirements.
