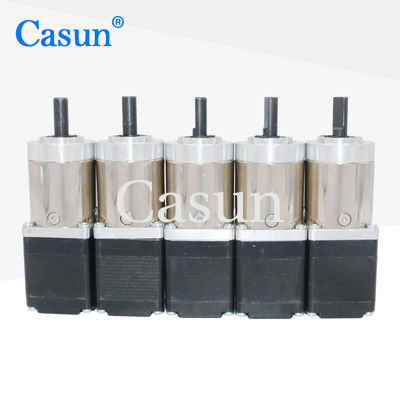

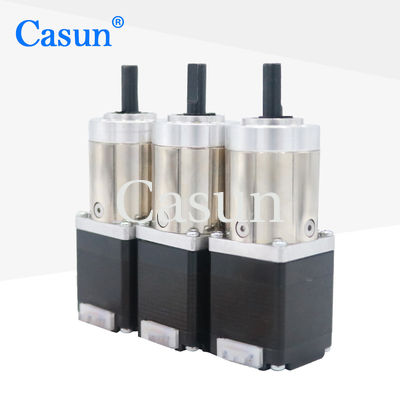

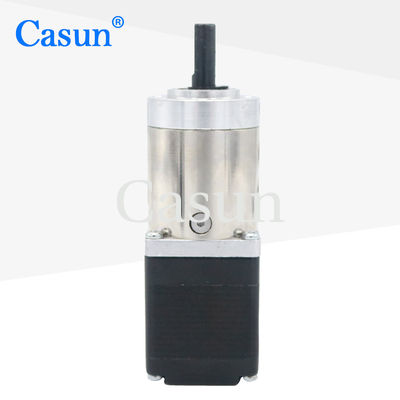

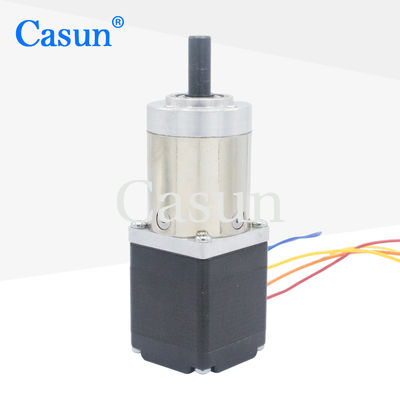

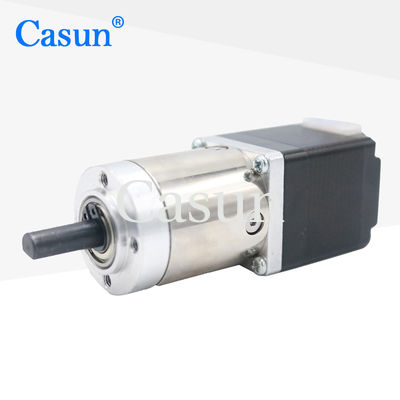

282832mm Casun NEMA 11 Geared Stepper Motor 0.95A 2.85V

282832mm Casun NEMA 11 Geared Stepper Motor 0.95A 2.85V

Brand Name:	Casun
Model Number:	28SHD4204-27G
MOQ:	1PC
Price:	$22.22-$25
Payment Terms:	D/A, T/T, L/C, D/P
Supply Ability:	40000+PCS+Month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE,ROHS,ISO

Stepper Motor:

NEMA11

Phase:

Holding Torque:

60mN.m

Rated Voltage:

2.85V

Rate Current:

0.95A

Customized:

The Motor Can Be Designed &manufactured With Customized Request.

Customized:

The Motor Can Be Designed &manufactured With Customized Request.

Packaging Details:

Carton:36x29x14cm

Highlight:

Casun NEMA 11 Geared Stepper Motor

282832mm Geared Stepper Motor

Stepper Motor 0.95A 2.85V

Product Description

28×28×32mm Casun NEMA 11 Geared Stepper Motor 0.95A 2.85V

The 28×28×32mm Casun 0.95A NEMA 11 2.85V Geared Stepper Motor with Planetary Gearbox offers powerful holding torque in a compact size. This micro geared stepper motor features planetary gearbox technology and is ideal for applications requiring precise motion control.

Key Features

Bipolar or unipolar versions available
Hybrid stepper construction
Available in single or double shaft versions
CE and RoHS approved
Customizations available upon request

Dimensions

Motor Specifications

Step Angle	1.8°
Frame Size	28 mm
Number of Phase	2 Phase
Rated Current	0.95 A
Holding Torque	60 mN.m
Resistance	3.0 Ω
Inductance	1.8 mH
Rotor Inertia	9 g·cm²
Motor Weight	0.2 kg
Gear Reduction Ratio	26.85:1
Connection	Bipolar

Operating Specifications

Motor

Step Angle	1.8°
Maximum Temperature	80°C maximum
Ambient Temperature	-20°C to 50°C
Storage Temperature	-20°C to 100°C
Humidity Range	85% or less, non-condensing
Magnet Wire Insulation	Class B 130°C
Insulation Resistance	100M Ω at 500 VDC
Dielectric Strength	500 VDC for 1 min

Gear Box

Housing Material	Metal
Bearing at Output	Ball Bearings
Max. Radial Load (12mm from flange)	≤80N
Max. Shaft Axial Load	≤30N
Radial Play of Shaft (near to Flange)	≤0.06mm
Axial Play of Shaft	≤0.3mm
Backlash at No-load	1.5°

Submodels

Motor Length	Length of Gearbox	Ratio	Efficiency
34 mm	27.2 mm	3.71	90%
40 mm		5.18
48 mm		35 mm
60 mm		13.76
	42.7 mm	51	70%

Customization Options

If our standard motor cannot meet your needs, we can customize the motor according to your requirements. Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, and more.

Encoder

Brake

Gearbox

Shaft

Please click the "Get a quote" button below to tell us your requirements and receive a customized solution for your application.
