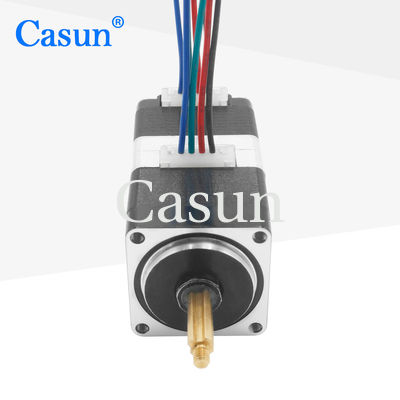

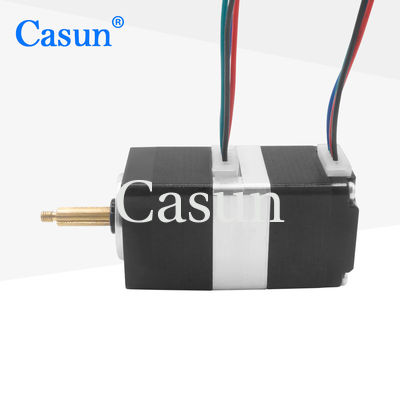

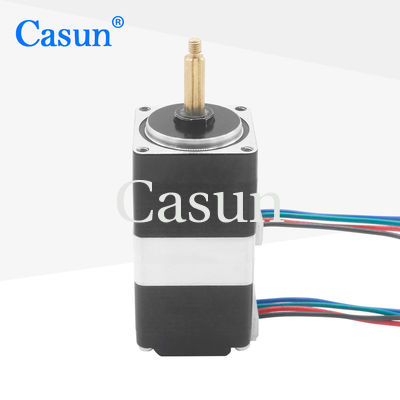

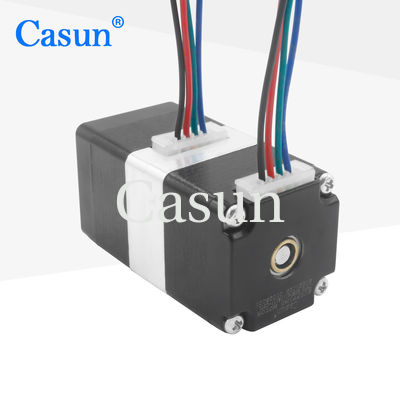

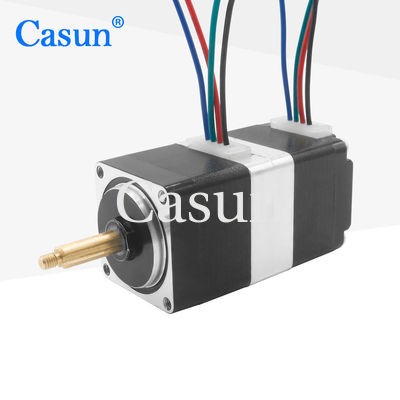

NEMA 11 Non Captive Stepper Motor Multi Motion 28*28*55mm 55mN.m CE ROHS

NEMA 11 Non Captive Stepper Motor Multi Motion 28*28*55mm 55mN.m CE ROHS

Brand Name: Casun
Model Number: S28D41114111-C27L
MOQ: 1PC
Price: $26-$31
Payment Terms: D/A, T/T, L/C, D/P
Supply Ability: 40000+PCS+Month
Detail Information
Place of Origin:
CHINA
Certification:
CE,ROSH,ISO
Step Angel:
1.8°
Holding Torque:
55mN.m
Current:
0.67A
Motor Length:
55
Shaft:
22mm Length
Customized:
The Motor Can Be Designed &manufactured With Customized Request.
Packaging Details:
Carton:38x29xc14m
Highlight:

NEMA 11 Non Captive Stepper Motor

,

Multi Motion Non Captive Stepper Motor

Product Description

The 28mm Hybrid Stepper Motor Series adopting advanced stepping technology, it has good load adaptability and dynamic responsiveness.

It is characterized by simple contorl and saving installation space.



Features:

  • Bipolar or unipolar versions available

  • Dealers are actively sought after!

  • Established in China for 12 years and has served more than 800 customers

  • CE and RoHS approved

  • High-tech industry and electronic industry equipment must have "multiple international certifications."





Motor Specifications

Step Angel

1.8 °

Fram Size

28 mm

Number of Phase

2 Phase

Rated Current

0.67 A

Holding Torque

55 mN.m

Resistance

9.2 ohm

Inductance

5.7 mH

Rotor Inertia

-

Motor weight

-

Number of leads

4

Connection

Bipolar



Appearance



NEMA 11 Non Captive Stepper Motor Multi Motion 28*28*55mm 55mN.m CE ROHS 0

Dimensions

NEMA 11 Non Captive Stepper Motor Multi Motion 28*28*55mm 55mN.m CE ROHS 1





Torque Curves

















Submodels

Body Length Diameter of Screw Pitch Length of Screw
27 mm

30 mm

38 mm

42 mm

47 mm
3.5 0.6096 20-1000 mm
1.2192
2.44
4
4 2
4.76 5.08
5 2
4
8
5.08
5.56 4.8768

Download







If our standard motor cannot meet your needs,

we can customize the motor according to your needs


Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:
Encoder | Brake | Gearbox | Connector

Please click the "Get  a quote" button below to tell us your requirements.
